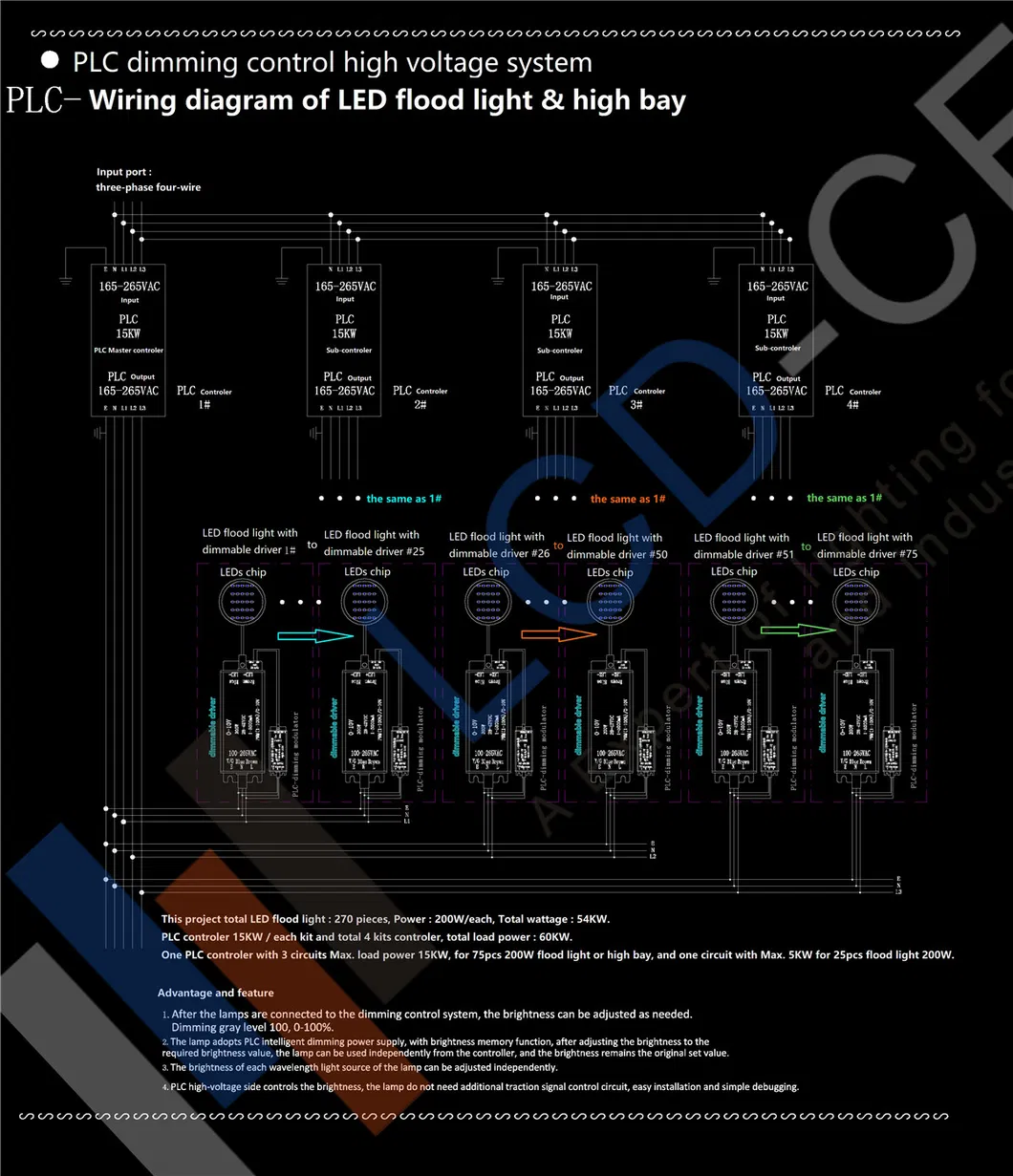

Advanced PLC Dimming Control: This high-voltage lighting solution serves as a superior replacement for DALI or DMX512 systems. It offers more competitive pricing, enhanced durability, and extreme stability with easier installation processes. Specially designed for challenging environments, it performs exceptionally in -70°C Cold Storage, warehouses, and industrial workshops.

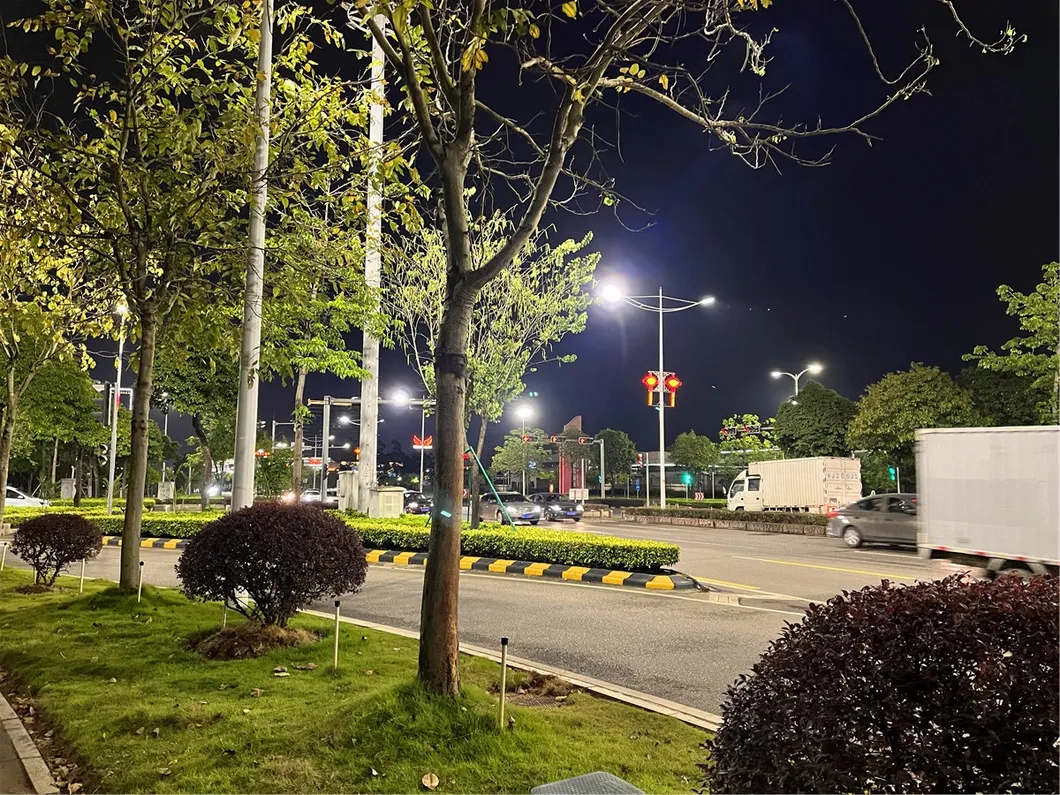

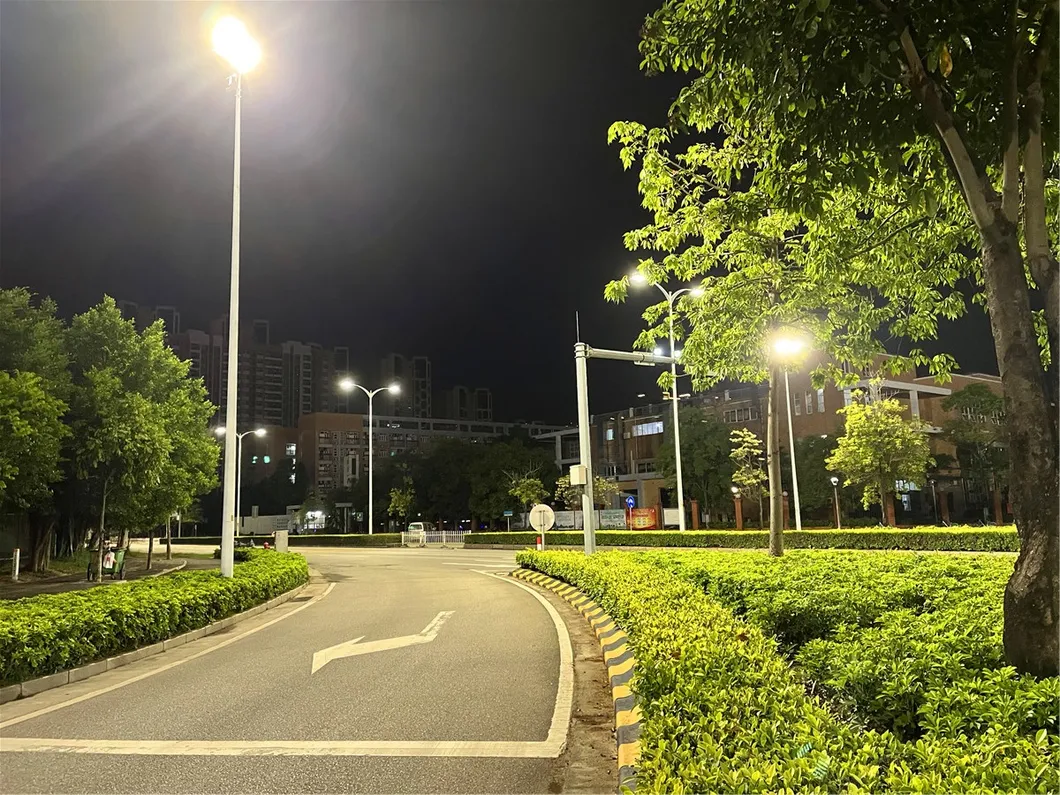

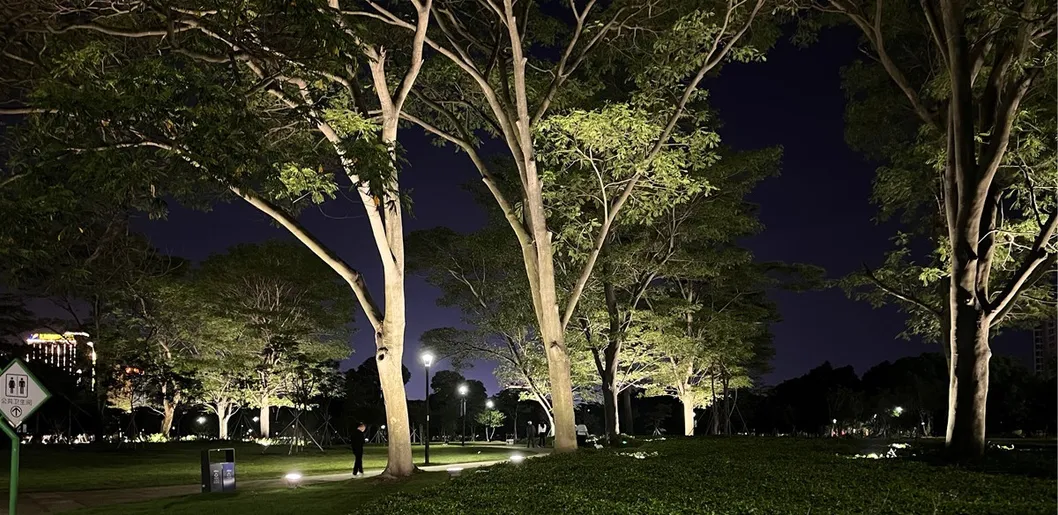

Our special light series is ideally used in challenging environments such as building lighting, roadway and car parking construction, loading areas, and heavy industrial zones. The development of high-quality fixtures for these areas ensures long-term sustainability and guaranteed service life.
| Category | Specifications |
|---|---|
| Housing | Aluminum alloy ADC12 for superior heat dissipation. |

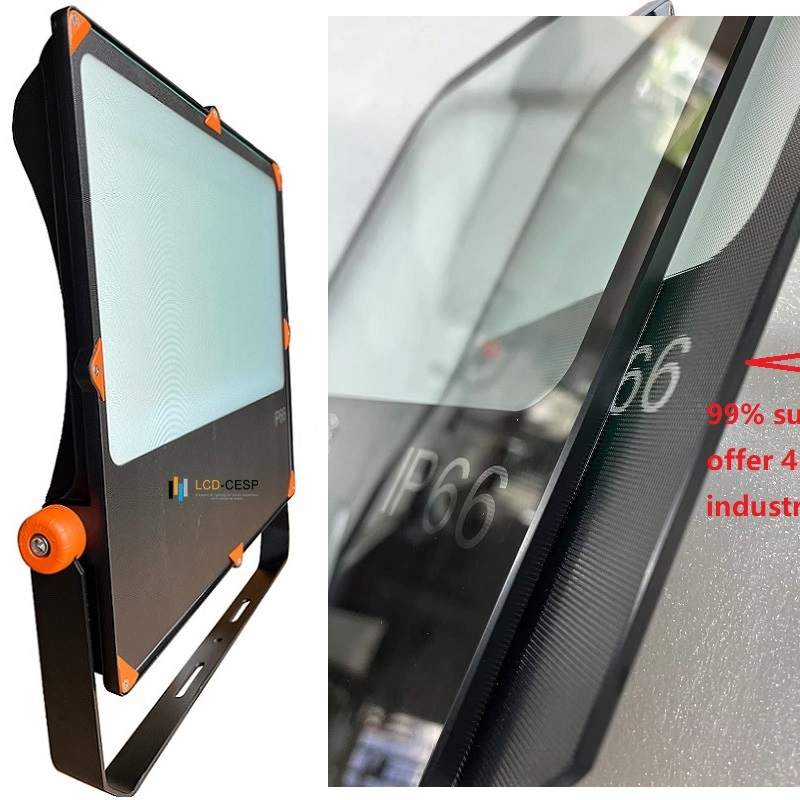

| Lens | 4mm thick tempered glass, +95% light transmission, shock resistant. |
| Performance | 10,400 to 20,800 lumens; up to 130-155 lm/w; rated > 60,000 hours. |
| Protection | IP65/IP66 rated; dust tight and protected against strong water jets. |
| Operating Temp | From -30°F up to 131°F (-30°C to 55°C). |
| Mounting | Surface, wall mount standard (adjustable bracket included). |
Historically, obstacles in LED implementation included price and heat management. Our design overcomes these with advanced thermal efficiency for high-wattage boards and drivers. This ensures the fixture performs reliably in extreme industrial environments where compact size and high output are required simultaneously.
| Model No | FE-50 | FE-80 | FE-100 | FE-150 | FE-200 |
|---|---|---|---|---|---|
| LED Source | LUXEON / Cree / Bridgelux SMD 3030/5050 | ||||
| Efficiency | 130lm - 155lm/w | ||||
| Input Voltage | 90-305V, 50/60Hz | ||||
| Dimensions | 362x290x240mm | ||||
| Power Option | 50W | 80W | 100W | 150W | 200W |
