4.6 Metre Wobble Rollers Boat Trailer

Customization:	Available
Certification:	DOT, ISO, CE
Loading Weight:	750kg

Send Inquiry

Product Description

Basic Specifications

Model NO.

YM-BT1001

Self-dumping

Not Self-dumping

Shape

Flatbed

Axle Number

Single

Usage

Boat Trailer

ABS

Without ABS

Type

Full Trailer

Tire Number

Two

Condition

New

Lead Time

30 Days

Warranty

12 Months

Transport Package

Pallet

Specification

4.6 Metre

HS Code

8716399000

Production Capacity

800PCS/Month

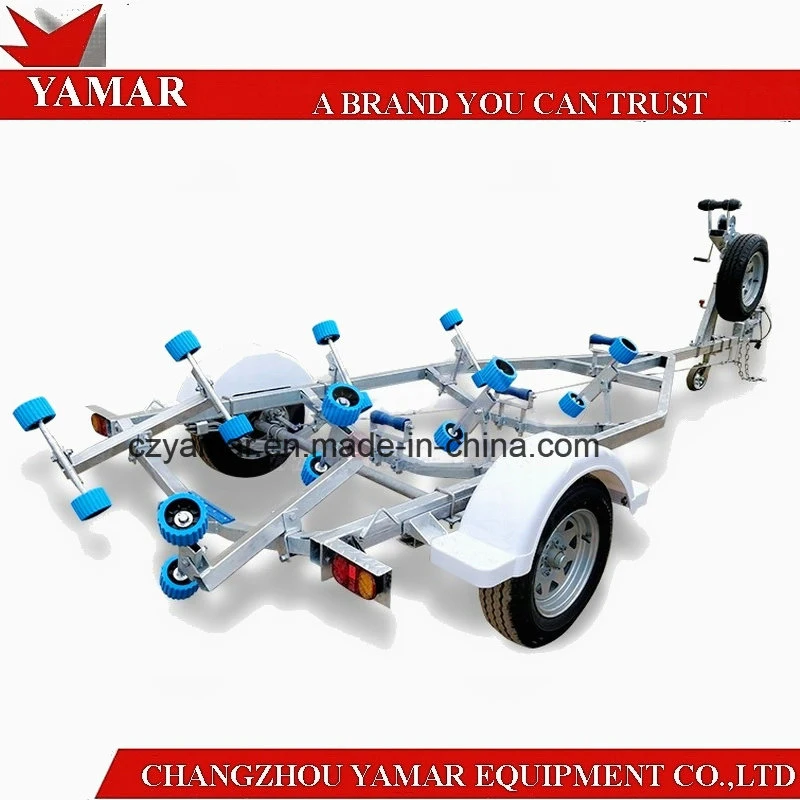

4.6 Metre Hot Dipped Galvanized Wobble Rollers Boat Trailer

Technical Specifications

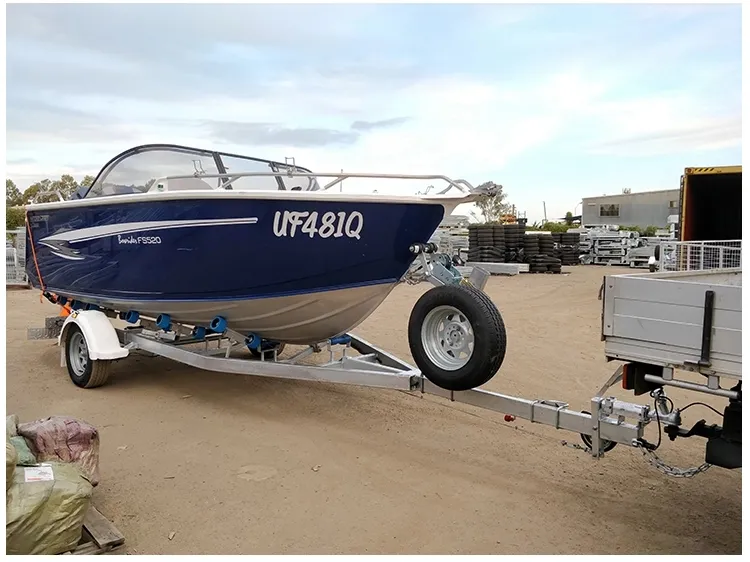

Suits fibreglass boats From 4.1 meters(13.5 ft) to 4.9 meters (16 ft)
Length overall: 5.19 meters
Width overall: 2.02 meters
Distance Between Guards: 1.57 meters
ATM: 750KG
Tare: 214KG
1 Year Structural Warranty

Standard Configurations

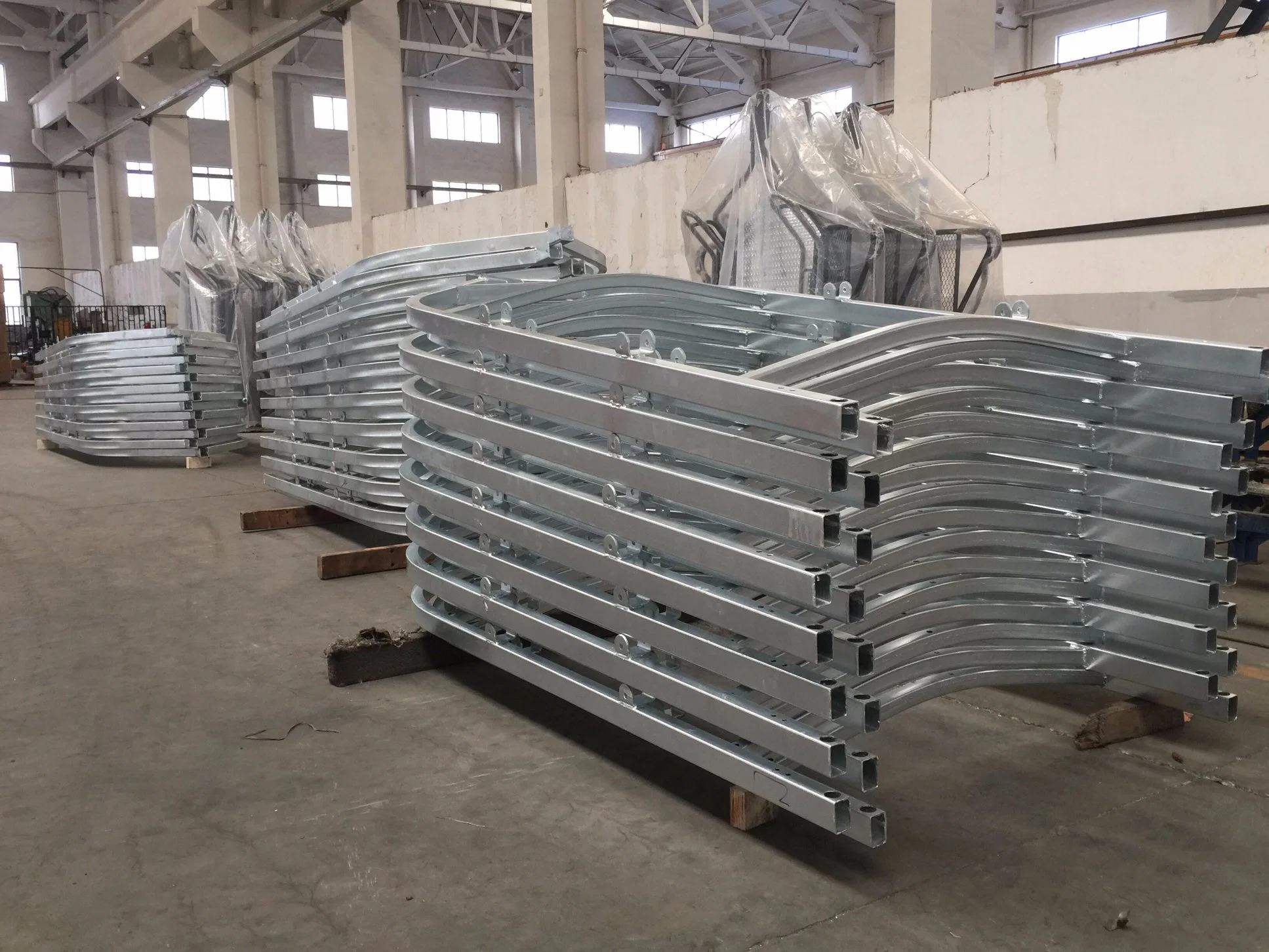

Fully hot dipped galvanised frame
Chassis main beam: 70mm x 50mm x 2.5mm
Cross bar size: 50mm x 50mm x 2.5mm
Single round solid axle (dacromet treated)
7 Leaf springs (dacromet treated)

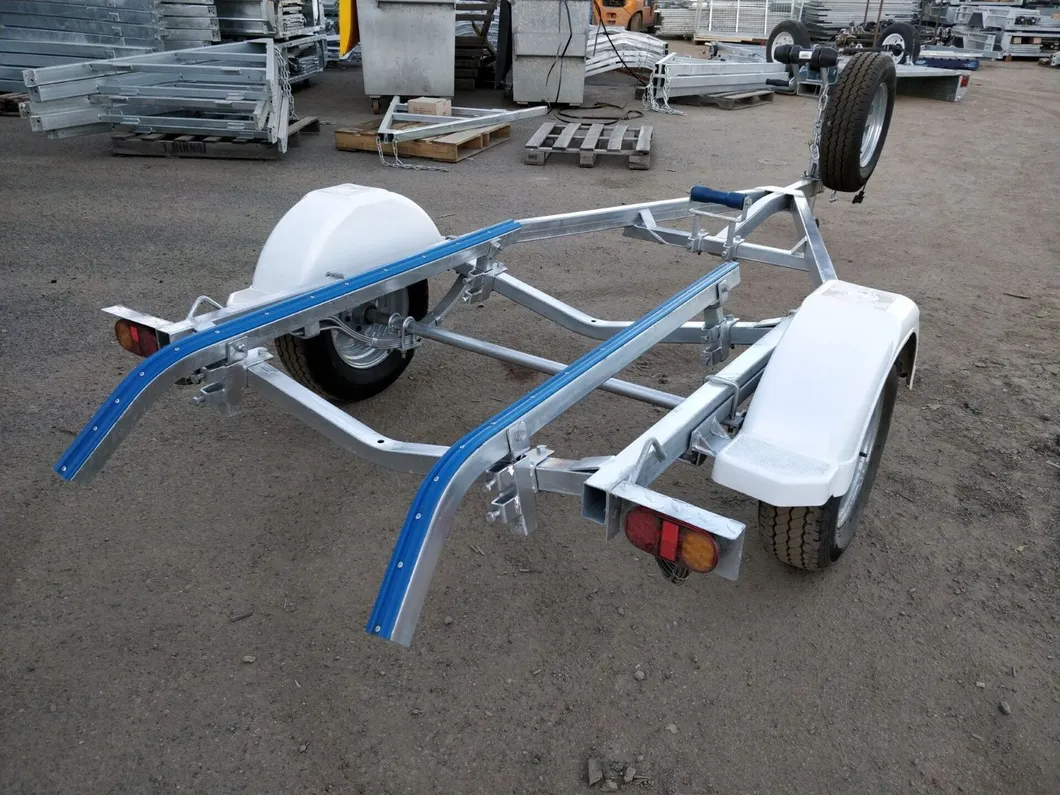

LED submergible lights
Flat or round 7 Pin Plug
Brand new 155LT R13 tyres on galvanised rims

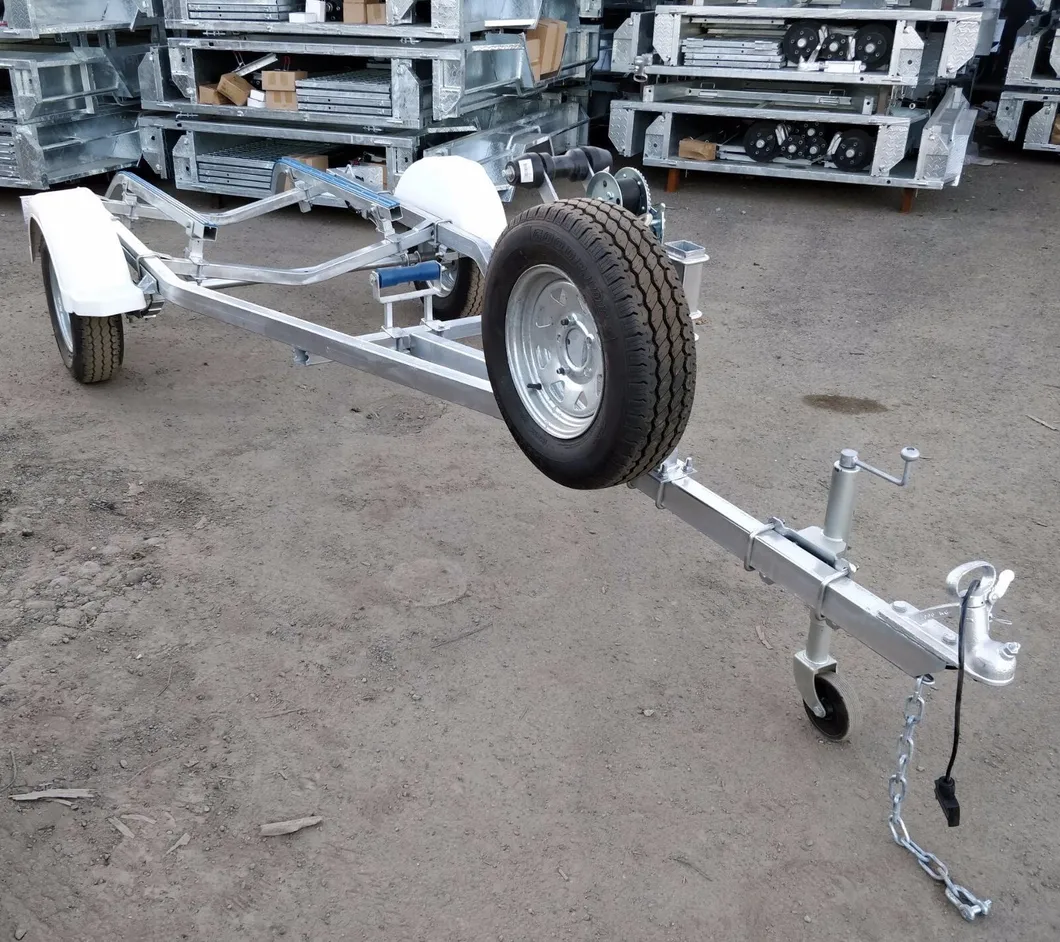

Fold up 6" jockey wheel

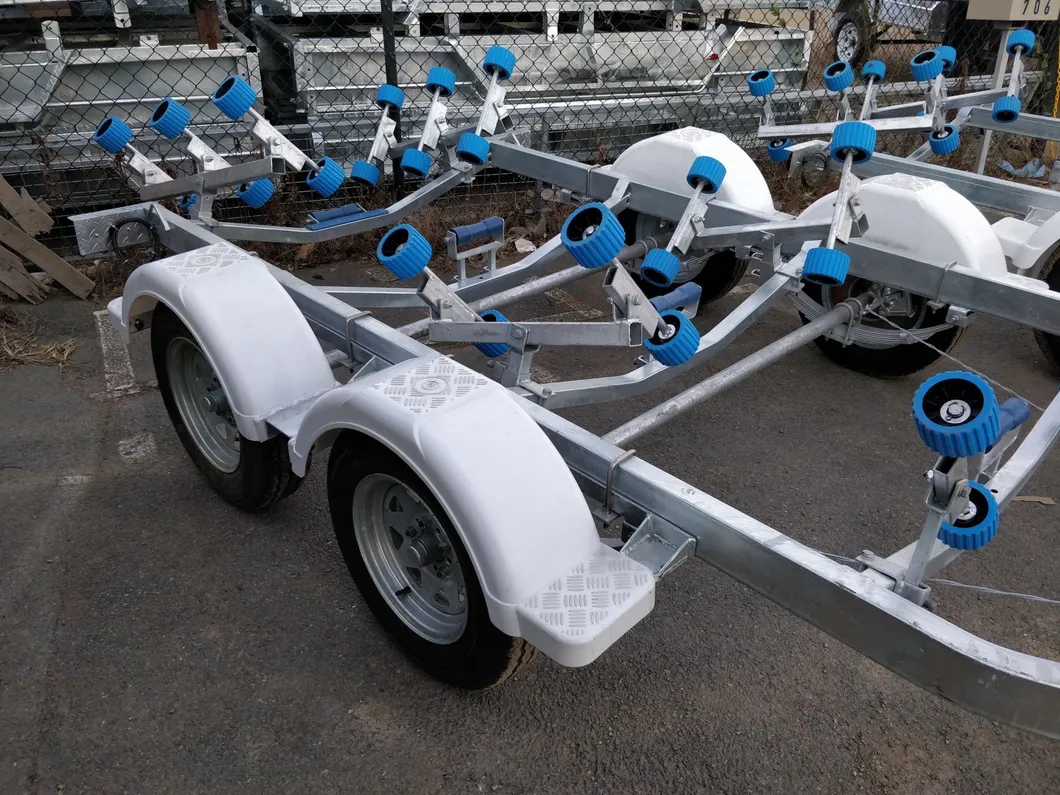

4 Keel rollers & 12 wobble rollers
2500lbs Hand winch with 7m dyneema rope
Plastic mudguards & Heavy duty safety chain

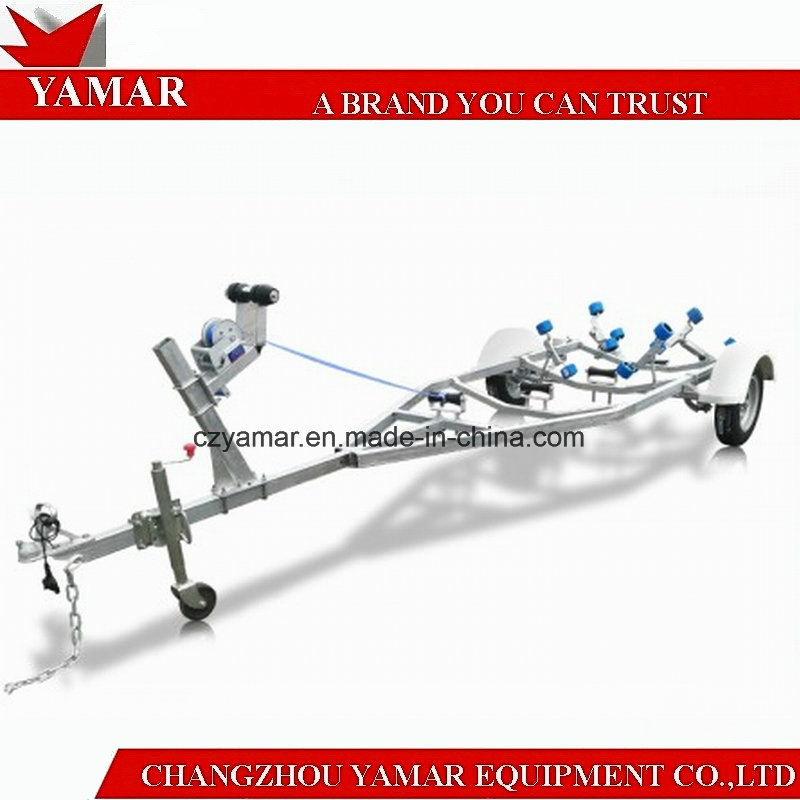

A BRAND YOU CAN TRUST

Each component we use is of high quality and comes with at least a one-year guarantee. During the warranty period, customers can obtain free replacement parts as needed.

Frequently Asked Questions

Q1: What size of boat is this trailer suitable for?

A: This trailer is specifically designed to suit fibreglass boats ranging from 4.1 meters (13.5 ft) to 4.9 meters (16 ft).

Q2: Is the frame protected against saltwater corrosion?

A: Yes, the trailer features a fully hot-dipped galvanized frame, and components like the axle and springs are dacromet treated for superior rust resistance.

Q3: What are the lighting and electrical specifications?

A: The trailer is equipped with LED submergible lights and comes with a 7-pin plug (available in flat or round configurations) to ensure safety and compliance.

Q4: What is the load capacity of this boat trailer?

A: The trailer has an ATM (Aggregate Trailer Mass) of 750KG and a Tare weight of 214KG.

Q5: Does it include a winch and rollers?

A: Yes, it includes 4 keel rollers, 12 wobble rollers, and a 2500lbs hand winch equipped with 7 meters of dyneema rope and a hook.

Q6: What is the standard warranty and lead time?

A: We provide a 12-month structural warranty. The typical production lead time is 30 days.
