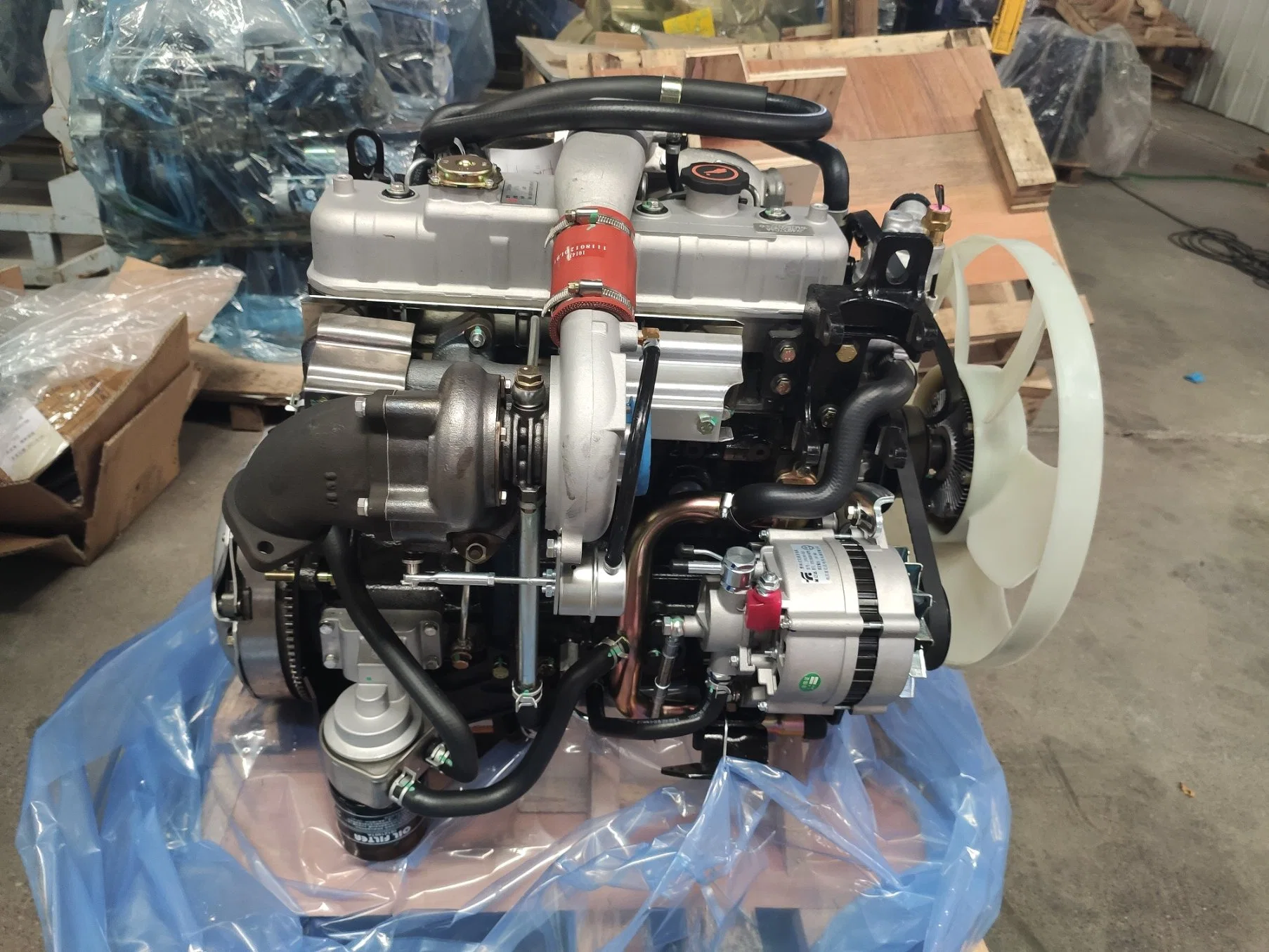

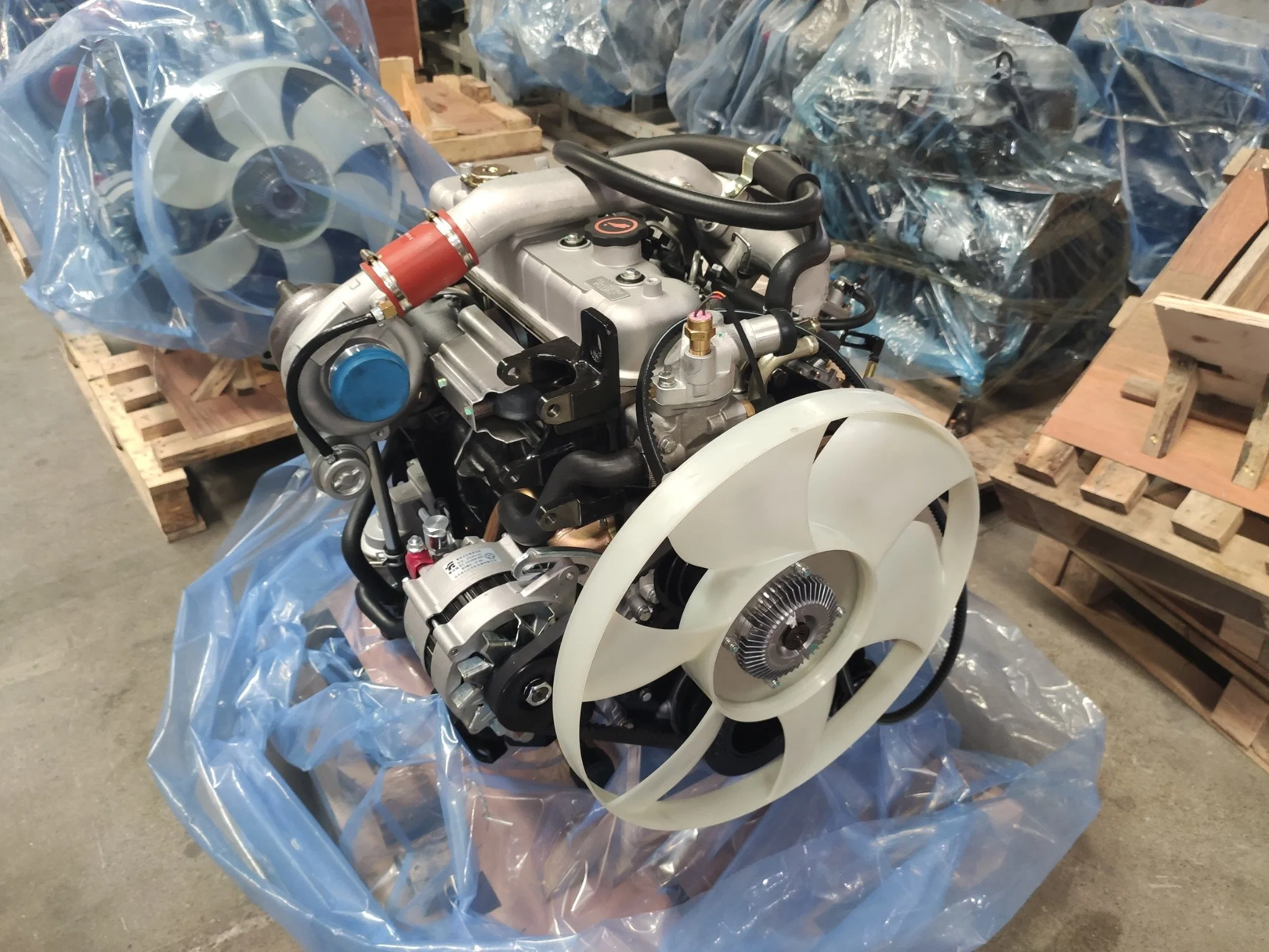

68kw Isuzu Diesel Engine 4jb1t/4jb1 for Vehicle/Forklift Marine Diesel Engine Boat Motor Engine 4 Strokes for Fishing Ship Water Cooled Diesel Engine

Customization: Available
After-sales Service: on Line
Warranty: 1 Year

Product Description

Basic Specifications
Model NO.
4JB1T/4JB1
Ignition Mode
Compression-Ignition
Cooling Cylinder
Water-Cooled
Intake Pressure
Supercharged
Fuel
Diesel
Number of Strokes
Four-Stroke
Cylinders
4-Cylinder
Power Kw/Rpm
68/3600
Bore * Stroke
93/102
Displacement
2.77L
Dimension
833*580*700
Weight
250kg
Trademark
isuzu
Specification
CE, ISO
Product Overview

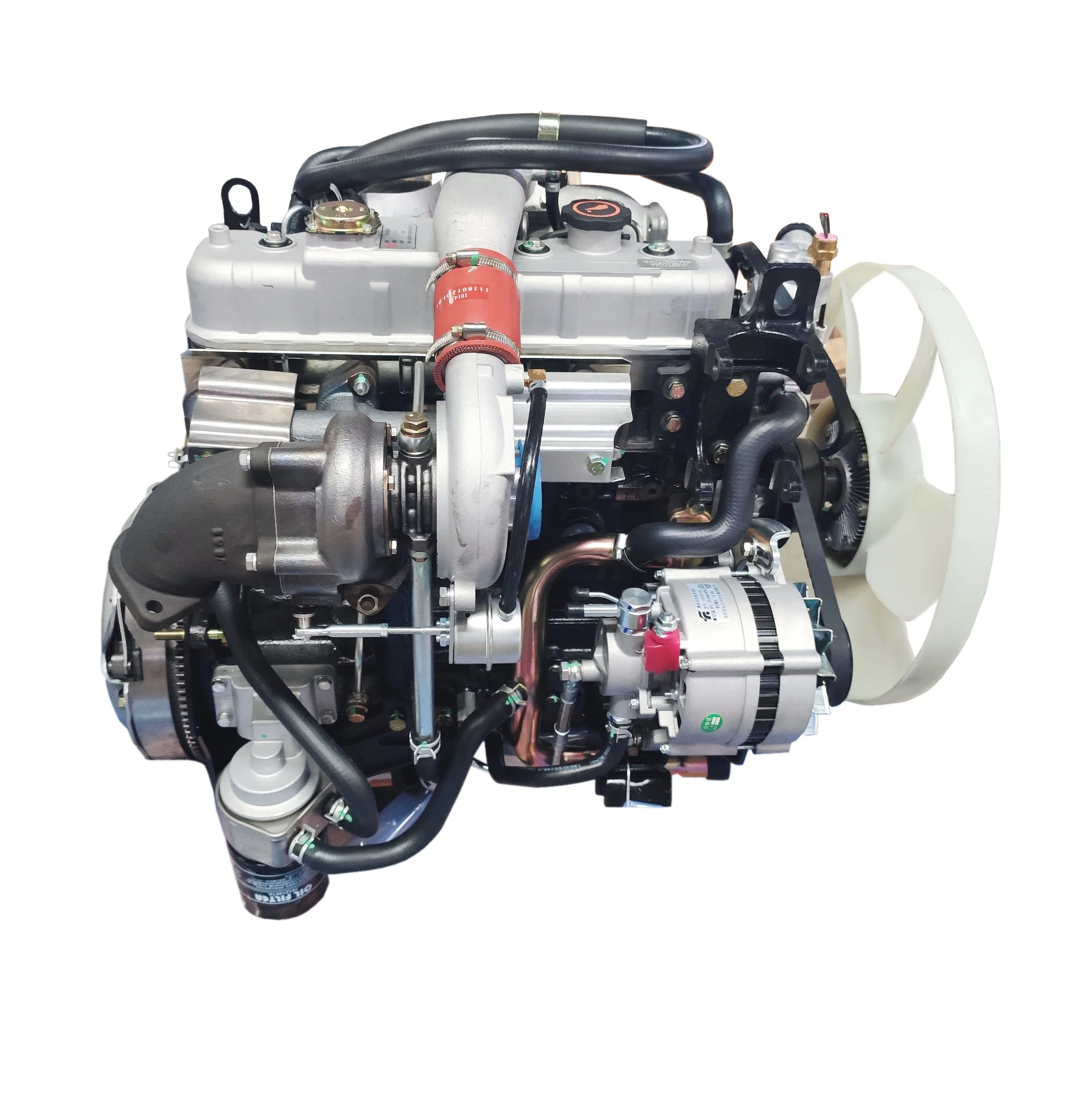

4 Cylinders 4 Stroke 68KW Water Cooling Isuzu Diesel Engine (4JB1T/4JB1)

The Isuzu 4JB1/4JB1T is the most common 2.8L diesel engine, widely used for small trucks, SUVs, pickups, marine boats, pump sets, and generator sets. With a turbocharger, it produces 68KW, and up to 86KW with an electronic common rail system. Known for being exceptionally stable and durable, millions have been proven over decades of use.
Advanced Manufacturing Adapts to harsh working conditions with high strength and heavy-duty operation capabilities.
Exhaust Gas Bypass Valve Features a Holset valve for perfect low-speed performance and increased power.
High Reliability Integrated design with 40% fewer parts than similar engines, greatly reducing failure rates.
Leak Prevention Special cylinder liner design with perfect geometric structure effectively prevents oil leakage.
Efficient Fuel Pump High-pressure rotor fuel pump ensures lower fuel consumption and lower noise levels.
Engine Model Cyl Bore/Stroke Liter Power KW/RPM Application Warranty Dimension (mm) Weight (kg)
4JB1493/1022.7757/3600motor1 year833x580x700124
4JB1T493/1022.7768/3600motor1 year833x580x700130
4BD14102/1183.8570.6/3200motor1 year921x651x751330
4BD1T4102/1183.8683/2800motor1 year790x660x820340
6BD16102/1185.78103/3000motor1 year1286x660x870480
6BD1T6102/1185.78120/2800motor1 year1286x700x970555
4HF14112/1104.334110/2600motor1 year1121×615×743.5350
4HE1T4110/1254.751125/2300motor1 year1181×699.8×833365

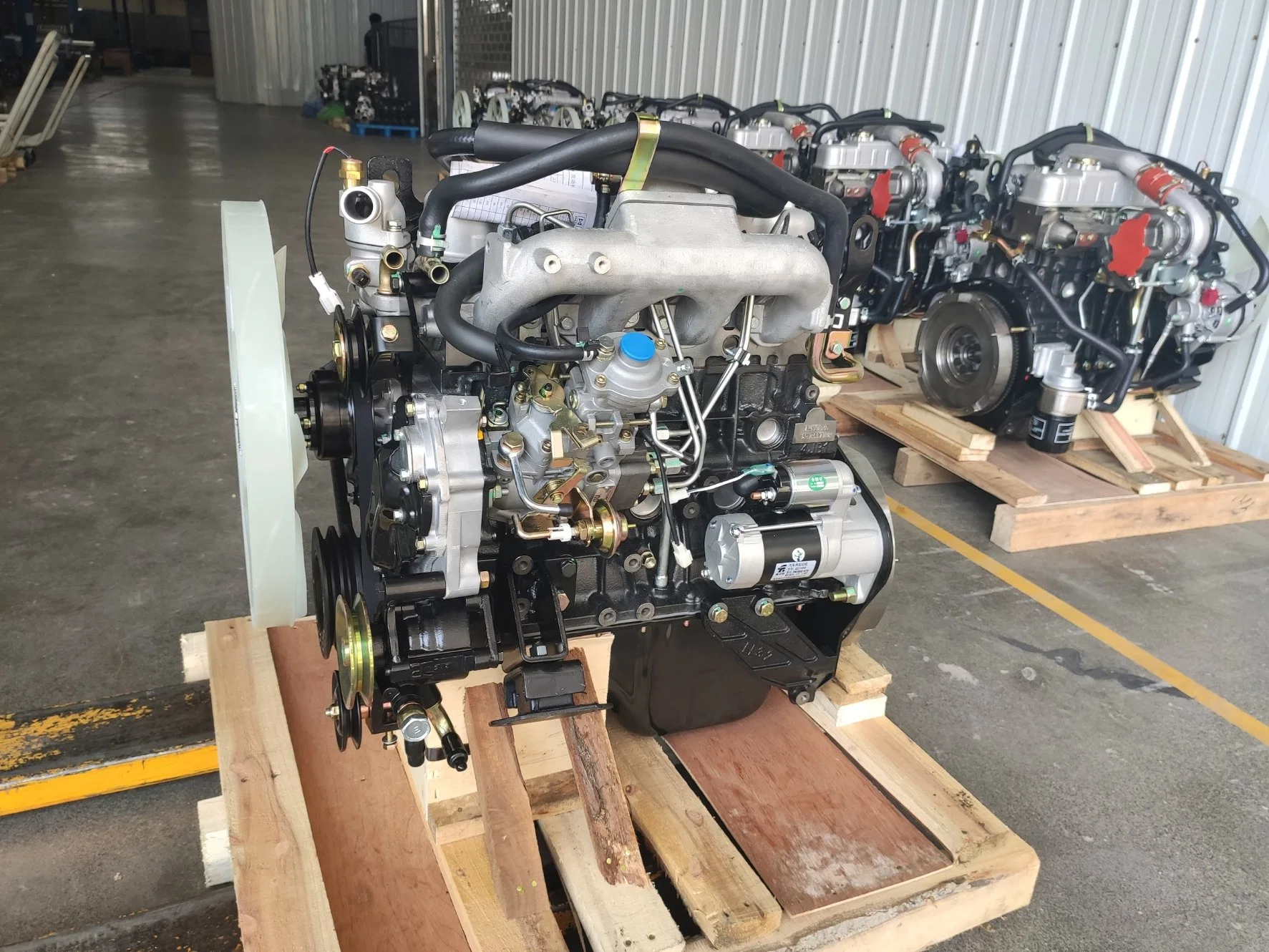

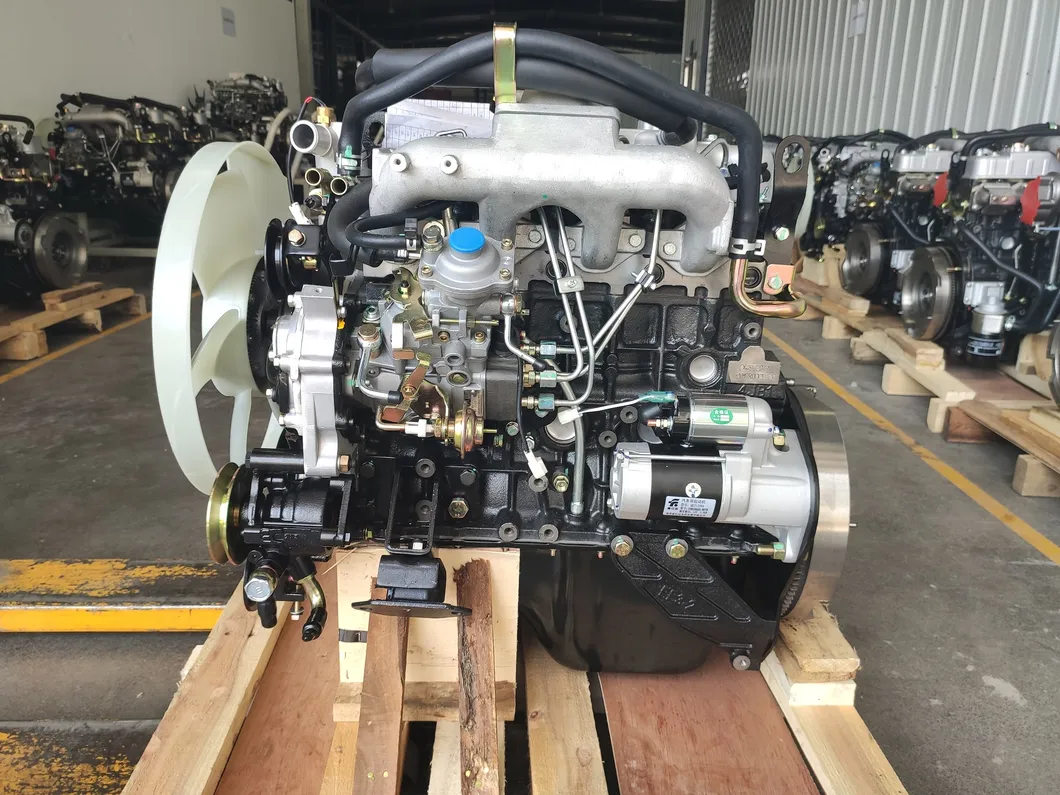

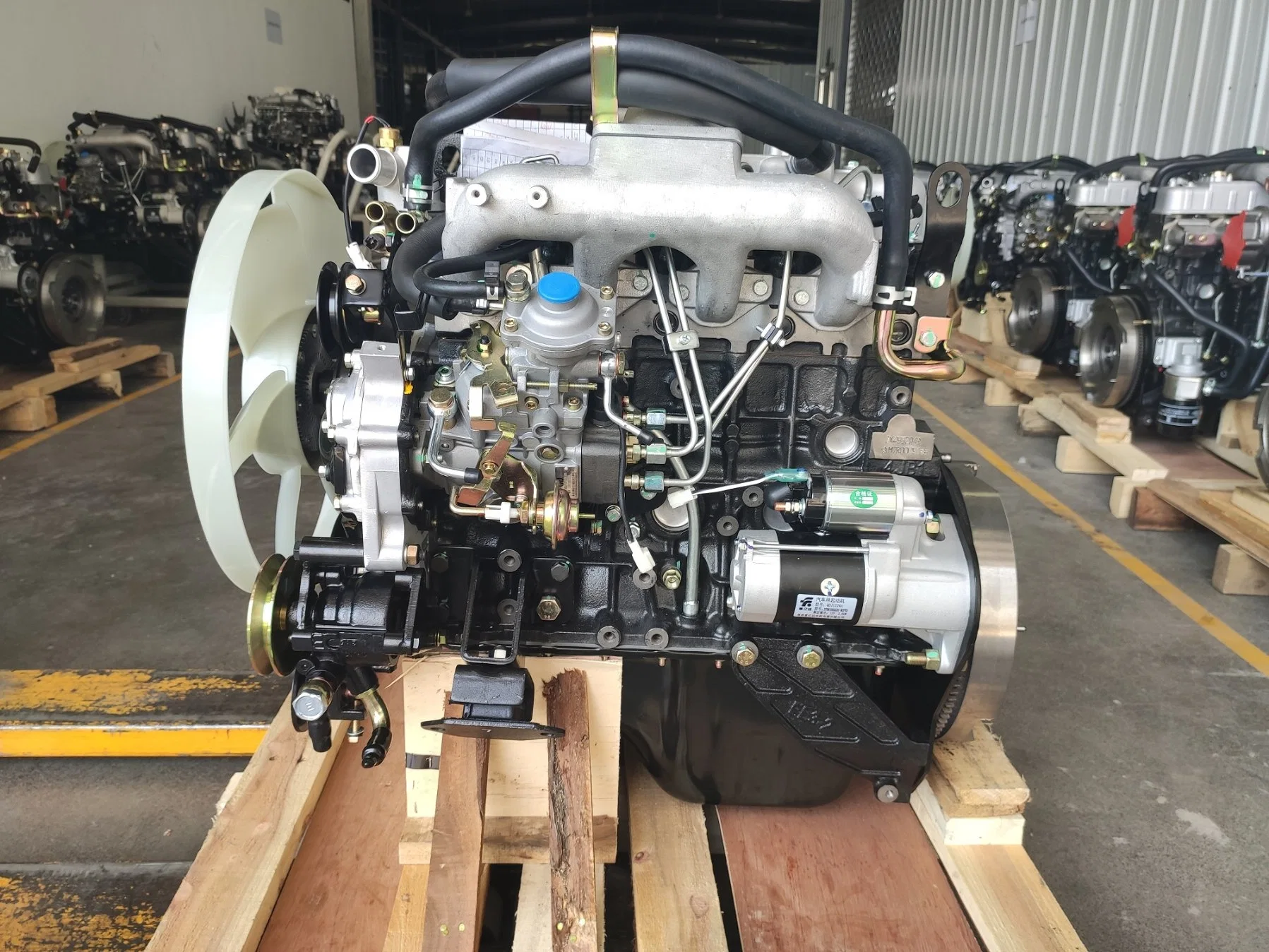

Product Gallery
Frequently Asked Questions
What is the main application for the Isuzu 4JB1T engine?
It is versatile and widely used in small trucks, SUVs, pickups, marine boats, pump sets, and generator sets.
What is the power output of the 4JB1T model?
The standard 4JB1T produces 68KW at 3600 RPM with a turbocharger.
How many cylinders does this engine series have?
The 4JB1 and 4JB1T are 4-cylinder, 4-stroke inline diesel engines.
Is the engine water-cooled?
Yes, the engine uses a water-cooling system to ensure stable performance under heavy-duty operations.
What certifications does the engine hold?
The engine meets CE and ISO specifications, ensuring international quality and safety standards.
Why is this engine considered highly reliable?
It features an integrated design with 40% fewer parts than comparable engines, which significantly lowers the risk of failure.
