1

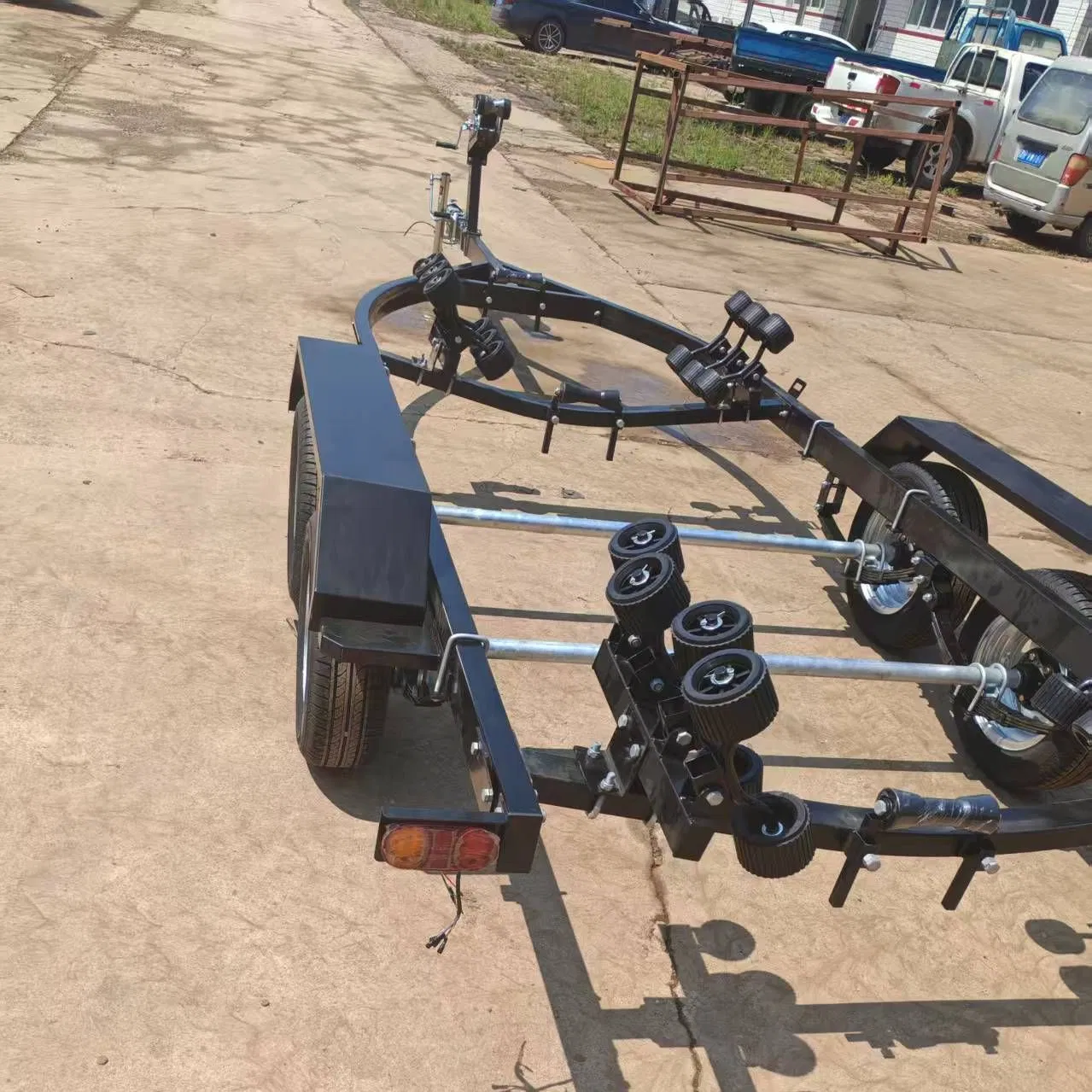

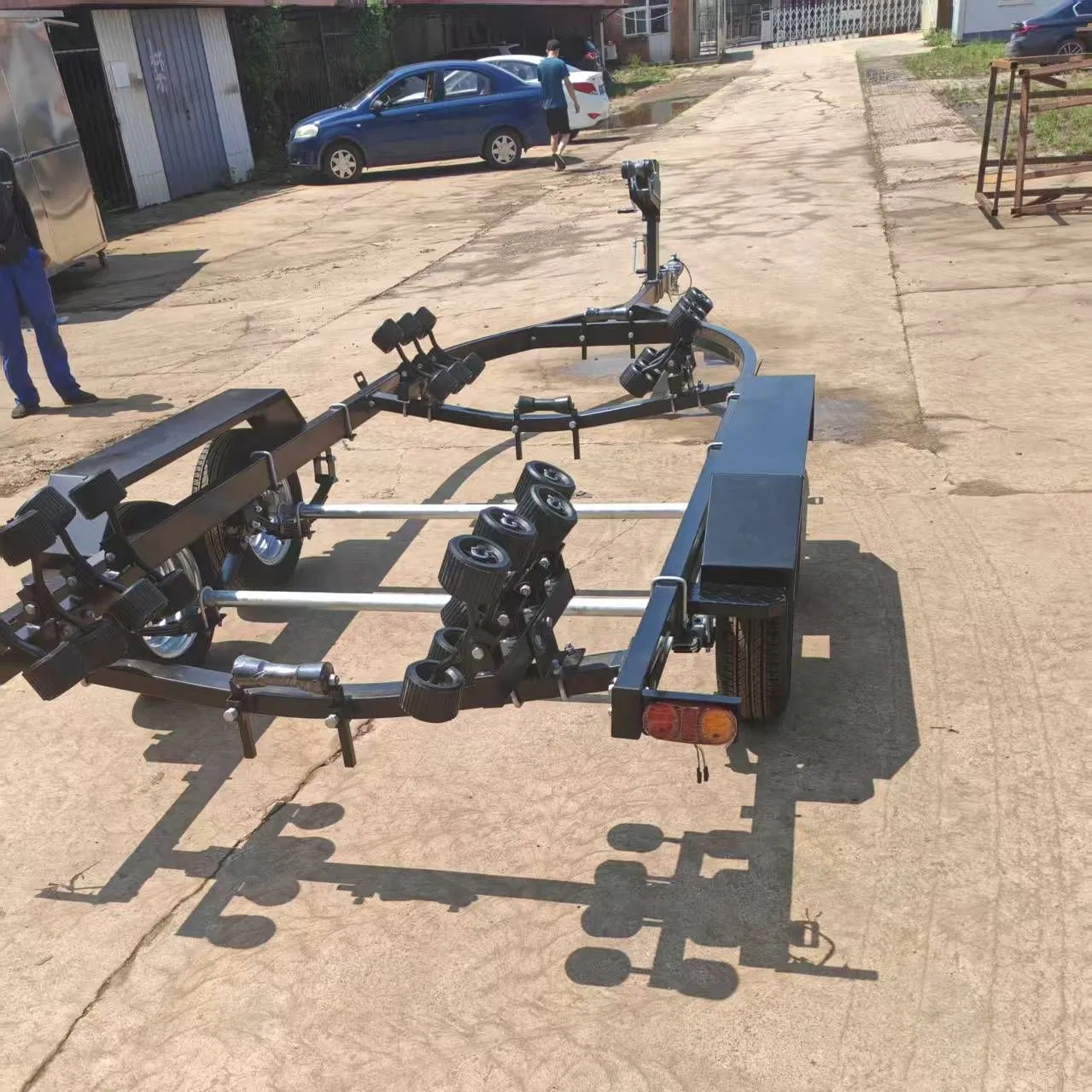

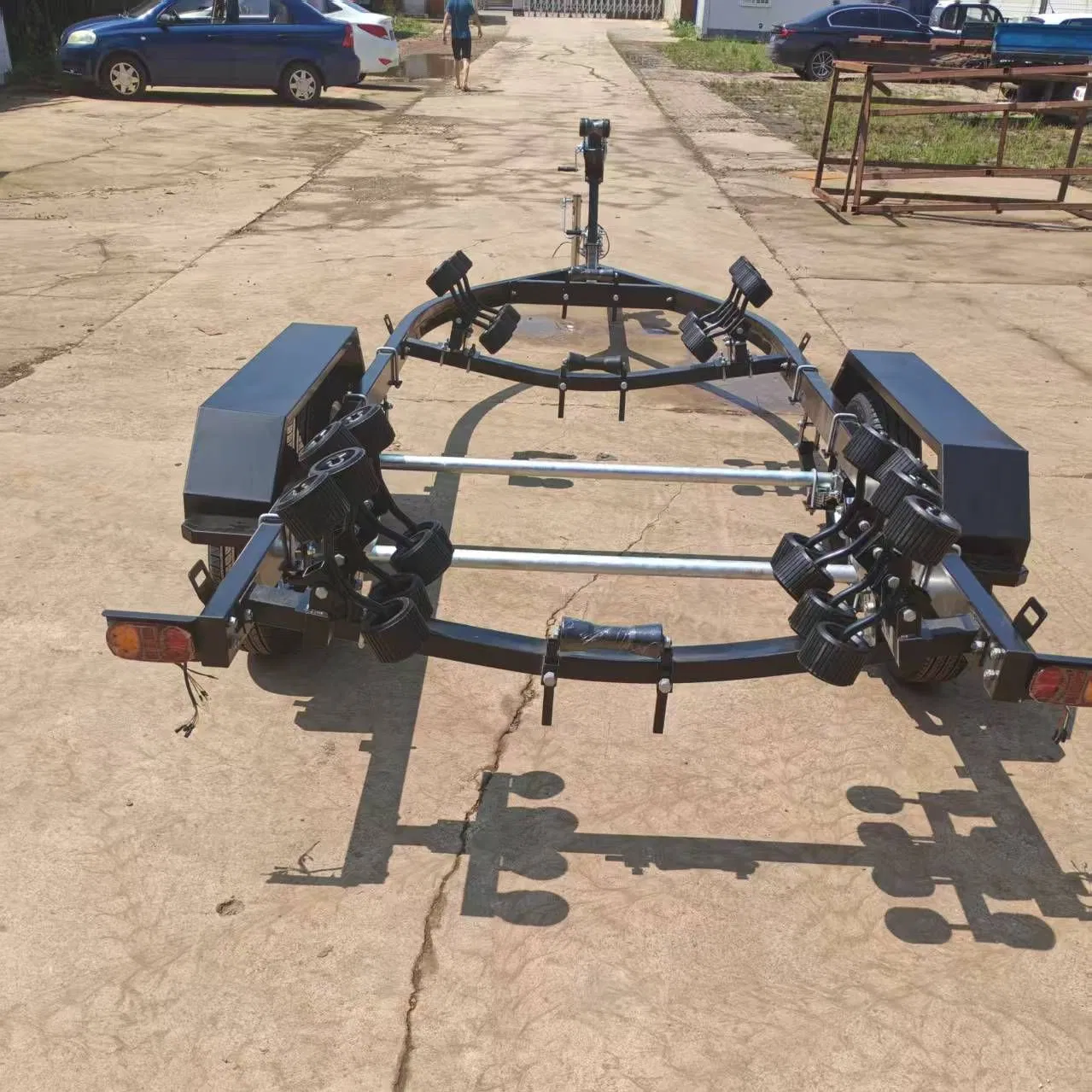

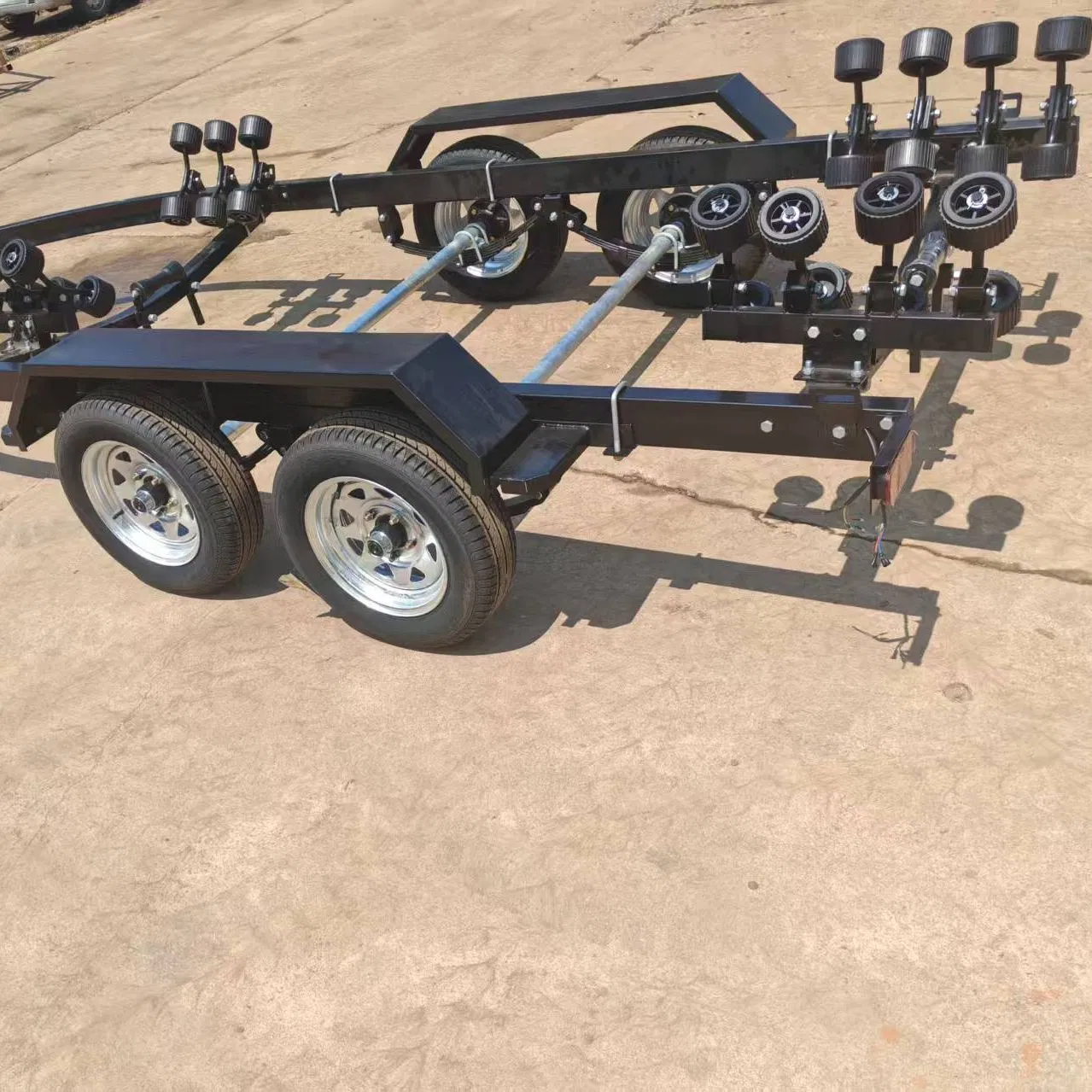

The trailer has an external length of 5.98 meters, an external width of 1.98 meters, a tare weight of 330KG, and a load capacity of ≥1500KG.
2
Traction beam rectangular tube dimensions: national standard 80*100*3mm; side beam rectangular tube dimensions: national standard 50*100*3mm; crossbeam rectangular tube dimensions: national standard 50*70*3mm.
3
The vehicle body adopts hot-dip galvanizing process, with an average zinc layer thickness of not less than 85μm, and the colors are silver and black.
4
The frame fixing bolts use 8.8 grade high-strength salt spray coated bolts, and the nuts use special anti-loosening nuts with flat washers.
5
Equipped with 5 leaf springs, a 2500-pound hand winch, a 1500-pound guide wheel jack (with a 6-inch single wheel), and 165R13LT tubeless tires with hot-dip galvanized rims.
Frequently Asked Questions
Q: What is the load capacity of this boat trailer?
A: The trailer is designed to handle a load capacity of 1500kg or more, with a tare weight of approximately 330kg.
Q: How is the trailer protected against rust?
A: The entire body undergoes a hot-dip galvanizing process with a zinc layer thickness of at least 85μm, providing excellent corrosion resistance.
Q: What type of tires are fitted to this model?
A: It is equipped with 165R13LT steel wire vacuum (tubeless) tires mounted on hot-dip galvanized rims for durability.
Q: Are the bolts used on the frame durable?
A: Yes, we use grade 8.8 high-strength salt spray coated bolts along with special anti-loosening nuts to ensure structural integrity in harsh environments.
Q: Can I customize the specifications of the trailer?
A: Yes, this model supports customization to meet specific requirements regarding dimensions or components.
Q: What kind of winch and jack system does it include?
A: The trailer comes with a 2500-pound hand winch and a 1500-pound guide wheel jack with a 6-inch single wheel.
