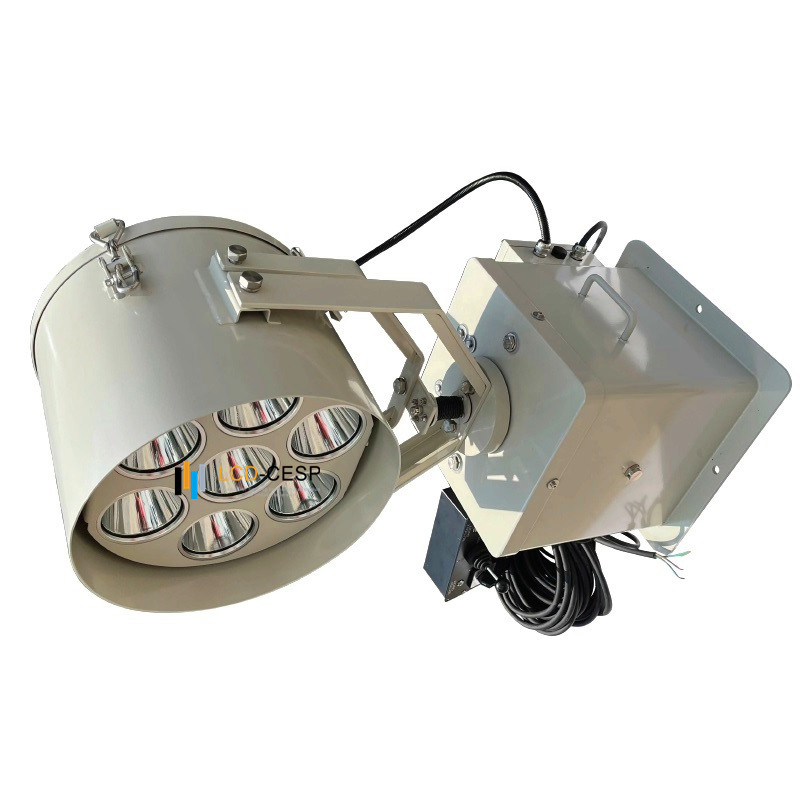

Boat Spotlight 1000W-1200W, Commercial LED Spot/Flood Bulbs, 90-305VAC, 2deg-8deg-30deg-90deg Optic- Marine Lighting

1 / 5

Boat Spotlight 1000W-1200W, Commercial LED Spot/Flood Bulbs, 90-305VAC, 2deg-8deg-30deg-90deg Optic- Marine Lighting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LS-SP500-1500-LN30-5K

Color Temperature

Neutral White

IP Rating

IP67

Light Intensity

> 5,000 Lumens

Light Source

LED

Power Range

50W-1200W

Lumens Output

130-170lm/W

IK Rate

IK09

Intelligent Dimming

0-10V & Dali Dimming, Zigbee Control

Beam Illuminance

Approx. 1000m-6000m (for 1 Lux)

Transport Package

Carton Box

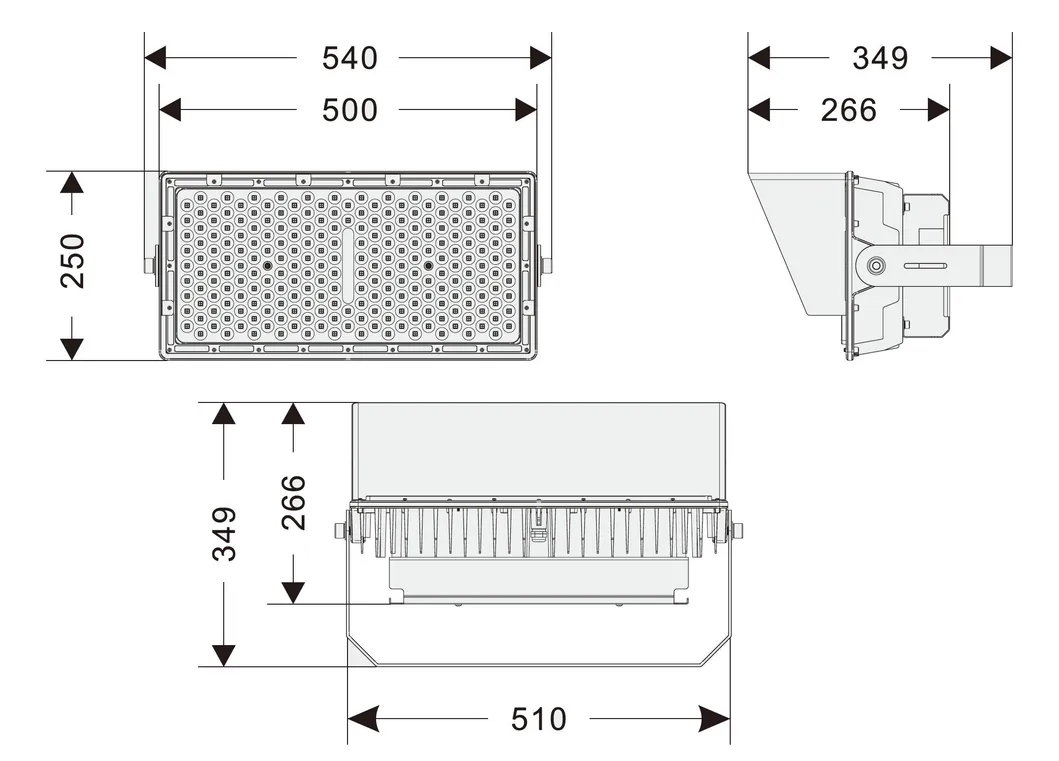

Specification

694x987x268mm

HS Code

9405421000

Capacity

50000PCS / Year

Product Description

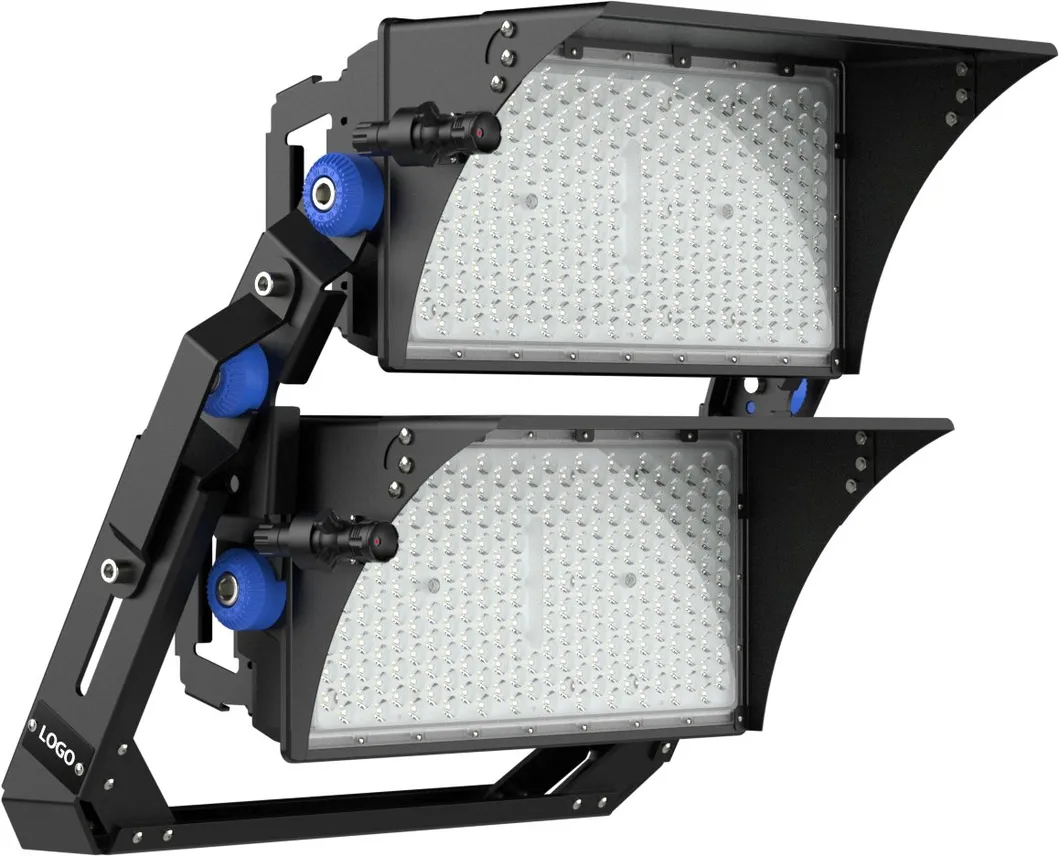

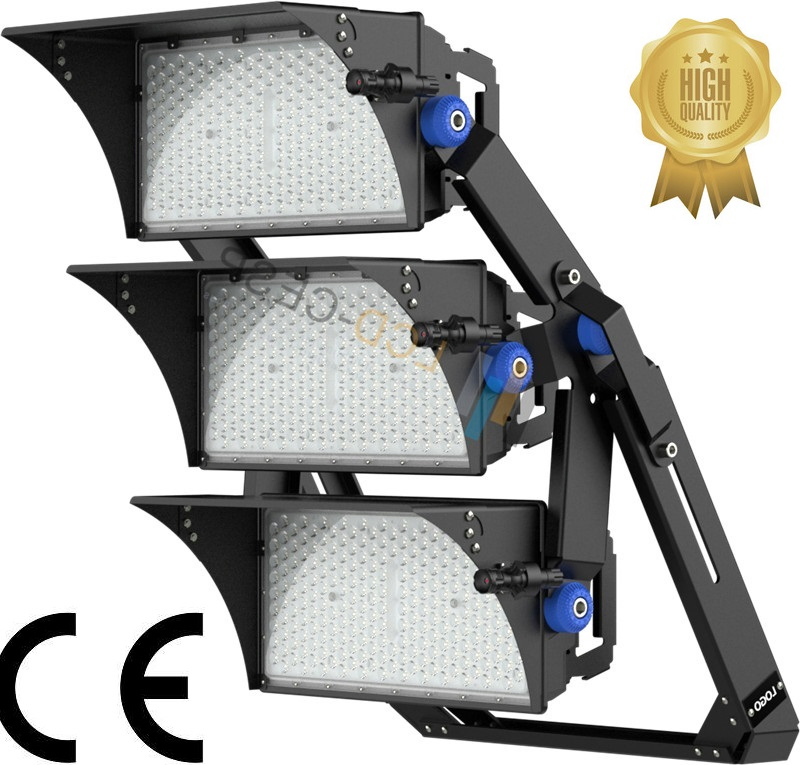

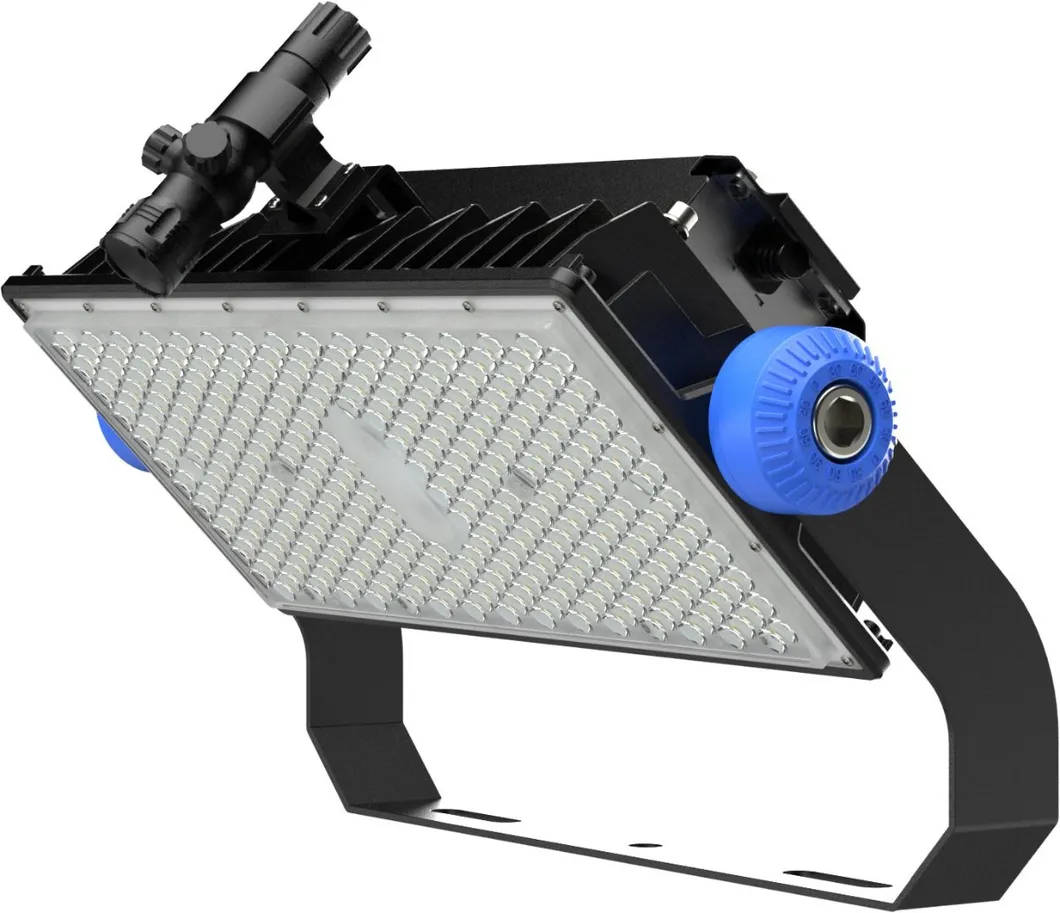

200W-2000W Sports Lighting Stadium High Mast LED Flood Lights

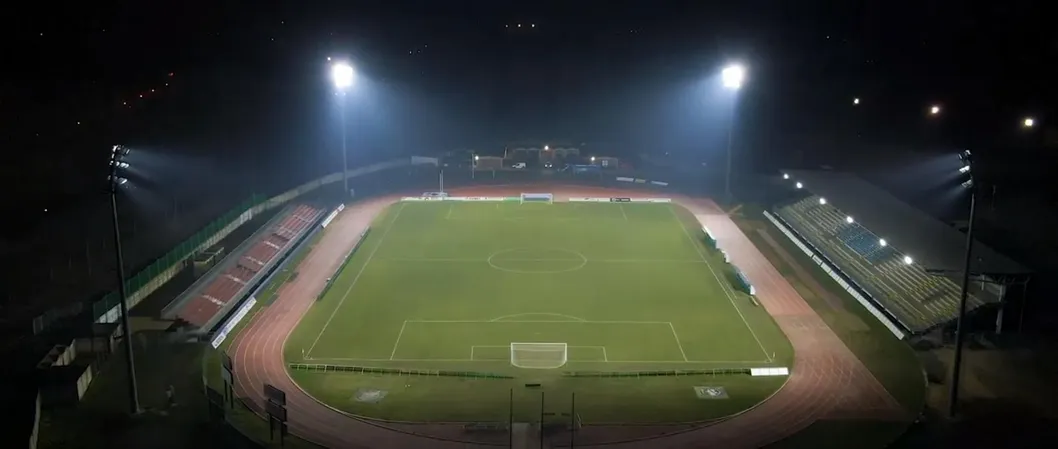

High lumen output highmast lighting for ARENA, UNIVERSITY TRACK & FIELD, GOLF COURSE, MONUMENT, INDUSTRIAL HARBOUR, football tennis baseball volleyball soccer sports field, stadiums, sea ports, construction sites, and factory yards, etc. Luminaire system efficacy up to 140-155LM/W, 5 years warranty.

Available Wattage: 200W / 400W / 500W / 600W / 800W / 1000W / 1200W / 1500W / 2000W

Lumen Range: 30,000lm - 300,000lm

Beam Angles: 15° / 30° / 45° / 60°

Key Features

High power saving replacement for traditional floodlight fixtures 1000W to 3000W.

Equipped with powerful LEDs and high photosynthetic efficiency lens (145-155 lumen/W).

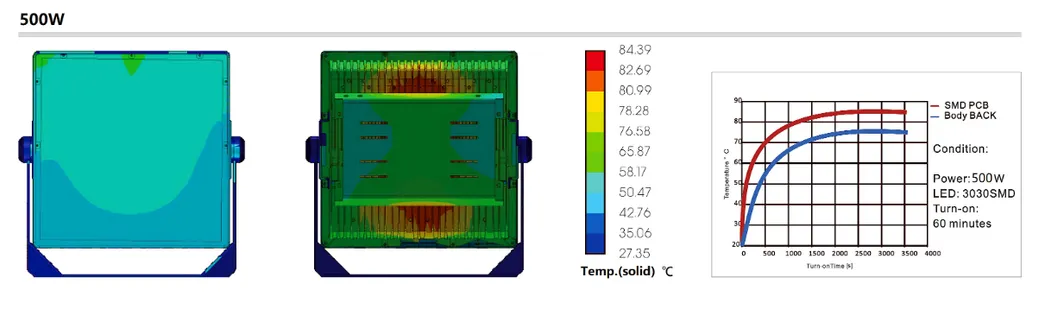

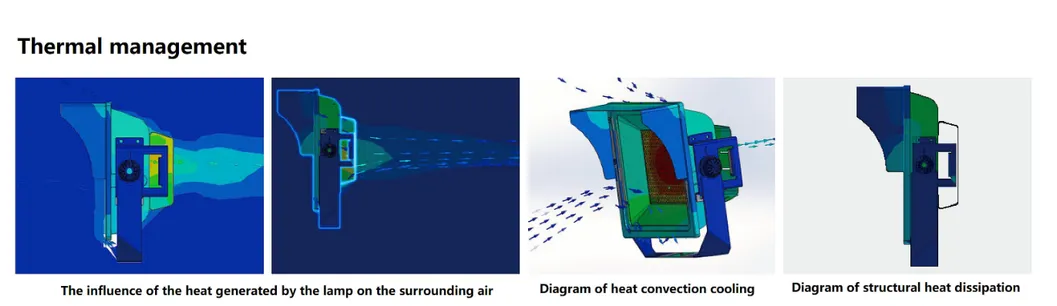

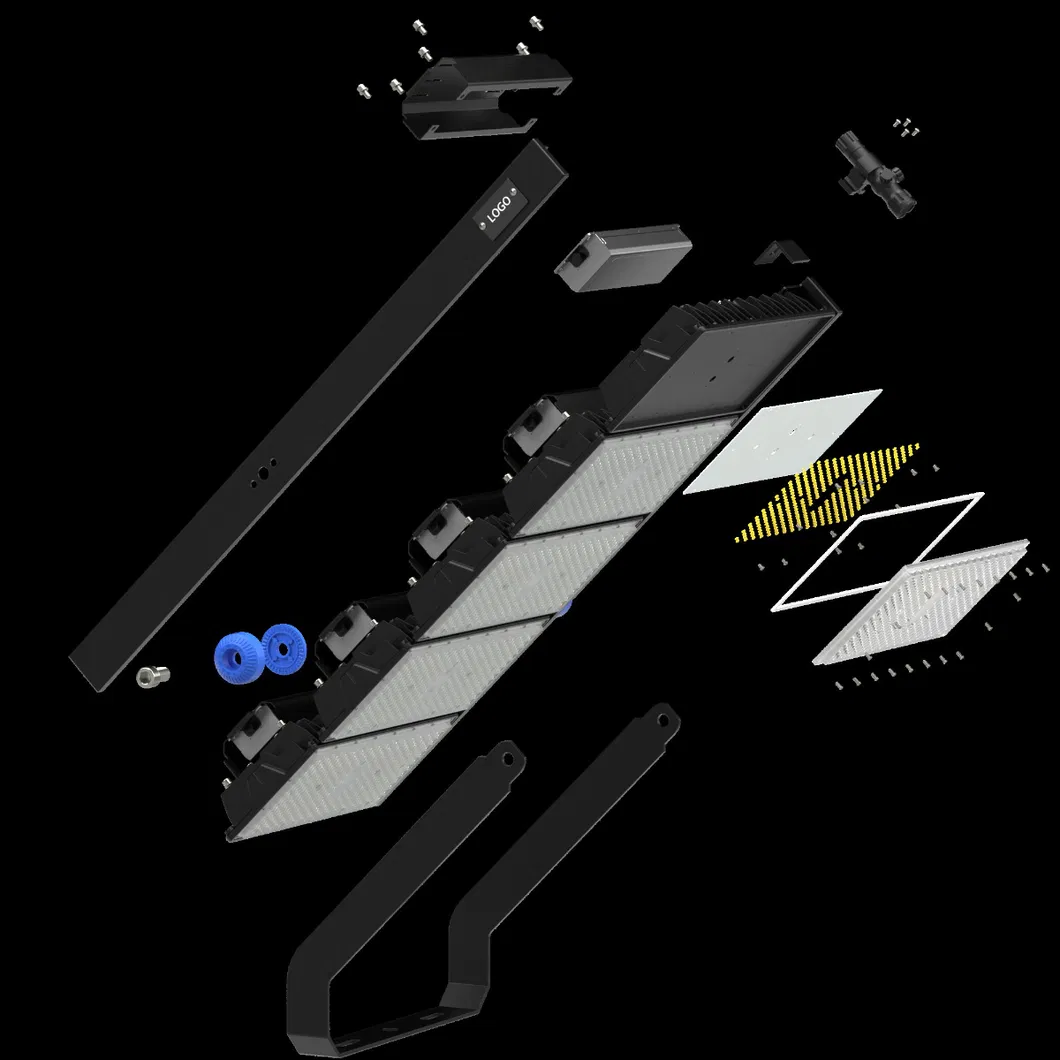

Highly ventilated heat sink design ensures excellent heat dissipation and wind resistance (up to Scale 19 hurricane).

Multiple beam angles available: 15°/30°/45°/60° to meet various application requirements.

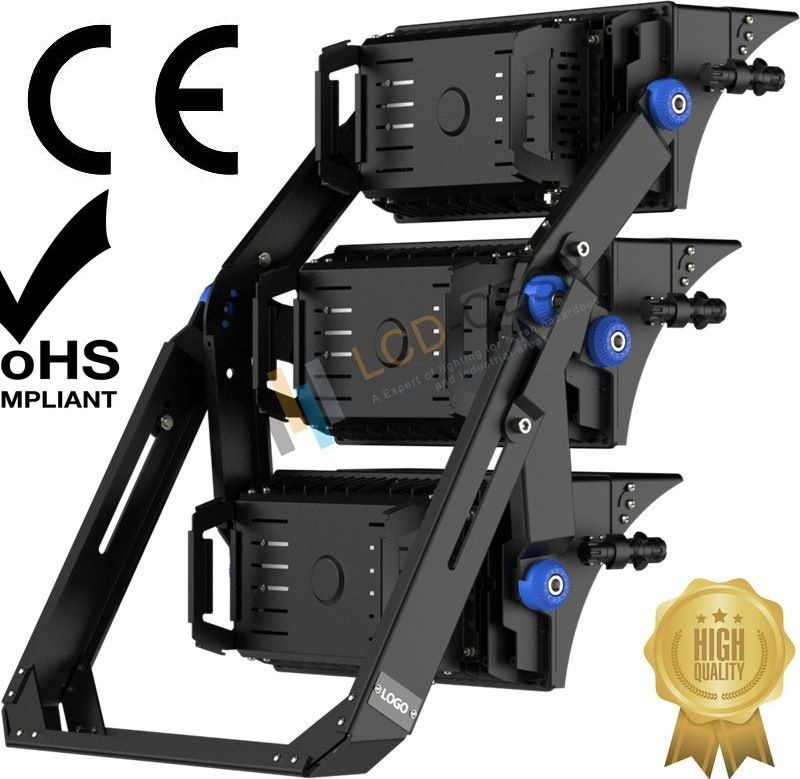

ADC12# die-casting aluminum body with powder-coated finish and stainless screws.

IP66/IP67 waterproof and IK09 impact protection for extreme weather durability.

Intelligent control options: 1-10V, DALI, and ZigBee wireless dimming.

Technical Specifications

Item Name	Data Sheet Details
Initial Luminous Flux (@4000K)	75,500lm +/-10% (for 500W)
Initial LED Luminaire Efficacy	145-155lm/W
CRI	≥75 / Ra>80
Lumen Maintenance (L79)	>100,000 hours
Color Temperature	3000K/4000K/5000K/5700K/6500K
Input Voltage	AC 100-305V, 50/60Hz
Power Factor	>0.96
Operating Temperature	-40°C to 50°C
Surge Protection	10KV/20KV available on request

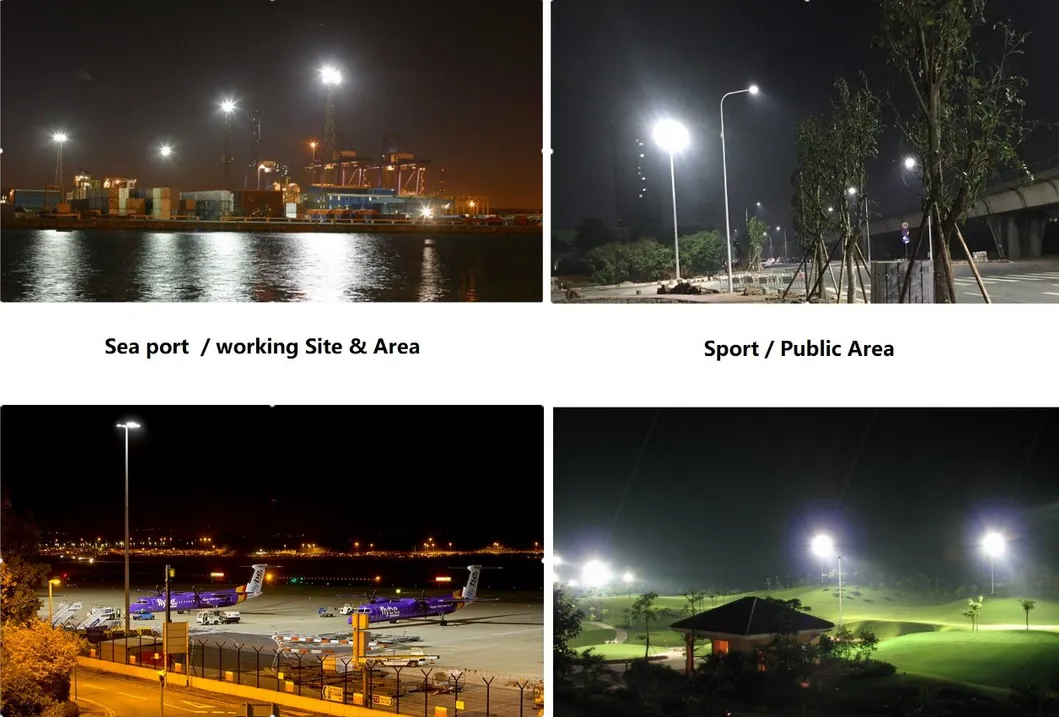

Applications

Municipal high mast lighting, billboards, auto dealerships, building façades, sports stadiums, parking spaces, indoor industrial workspaces, sea ports, airports, tunnels, working sites, construction areas, vessels, and more.

Frequently Asked Questions

What is the energy efficiency of these LED high mast lights?

These lights offer high photosynthetic efficiency with a system efficacy of 135-155lm/W, significantly reducing energy consumption compared to traditional lamps.

Can these fixtures withstand extreme weather conditions?

Yes, the fixtures are IP66/IP67 rated for waterproofing and are designed to withstand Scale 19 hurricanes due to their compact, low wind-resistance heat sink design.

Which traditional lamps can these LED flood lights replace?

They are ideal replacements for traditional metal halide (MH) or HID floodlight fixtures ranging from 1000W to 3000W.

Are there intelligent control options available?

Yes, we provide multiple dimming and control solutions including 0-10V dimming, DALI dimming, and ZigBee wireless control systems.

What beam angles are available for sports field lighting?

To meet various lighting requirements, we offer multiple beam angles: 15°, 30°, 45°, and 60°.

What is the expected lifespan and warranty?

The lights are designed for a lifespan of over 100,000 hours (L79) and come with a standard 5 to 6-year warranty depending on the configuration.
