| Model | UFO U5 | ||
| GNSS Capability | Channels | 800 | |
| Satellites | GPS, GLONASS, GALILEO, QZSS, BEIDOU, SBAS, IRNSS | ||
| Update Rate | 5 Hz, up to 50 Hz | ||
| Accuracy (RTK) | Horizon: ±(8+1×10-6D)mm | Vertical: ±(15+1×10-6D)mm | ||
| Power | Battery | Built-in battery, 7.2V 6800mAh (Up to 12 hours) | |
| Input Voltage | 9~28 V DC external power input | ||
| Communication | Wireless | Bluetooth V4.1 Dual Mode, WIFI 802.11 b/g/n | |
| Internal UHF | 410-470MHz; Protocols: TrimTalk, SATEL, HiTarget, South | ||
| Network | Support 4G; NANO SIM slot | ||

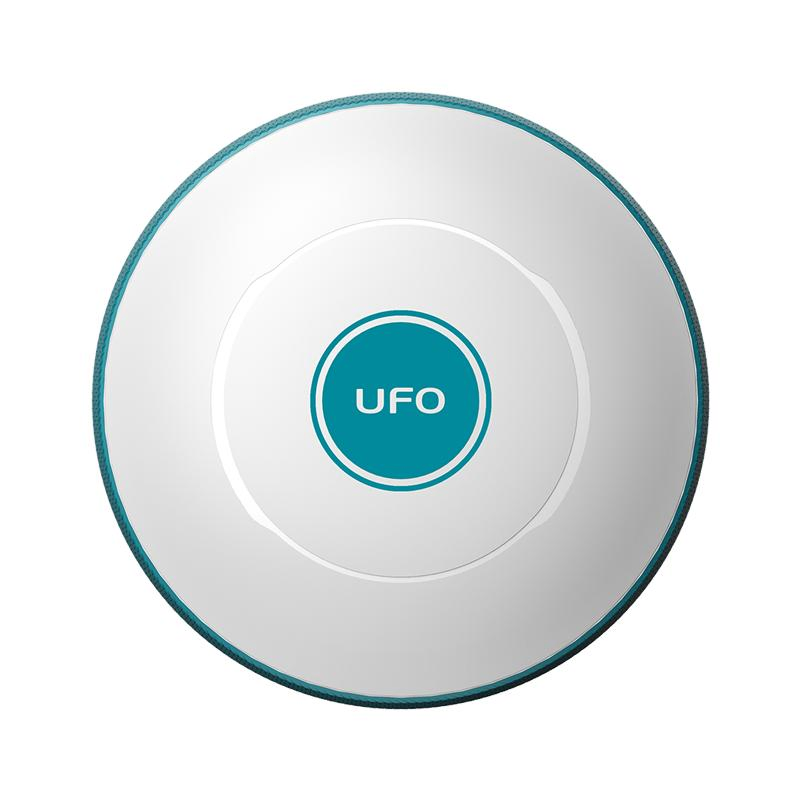

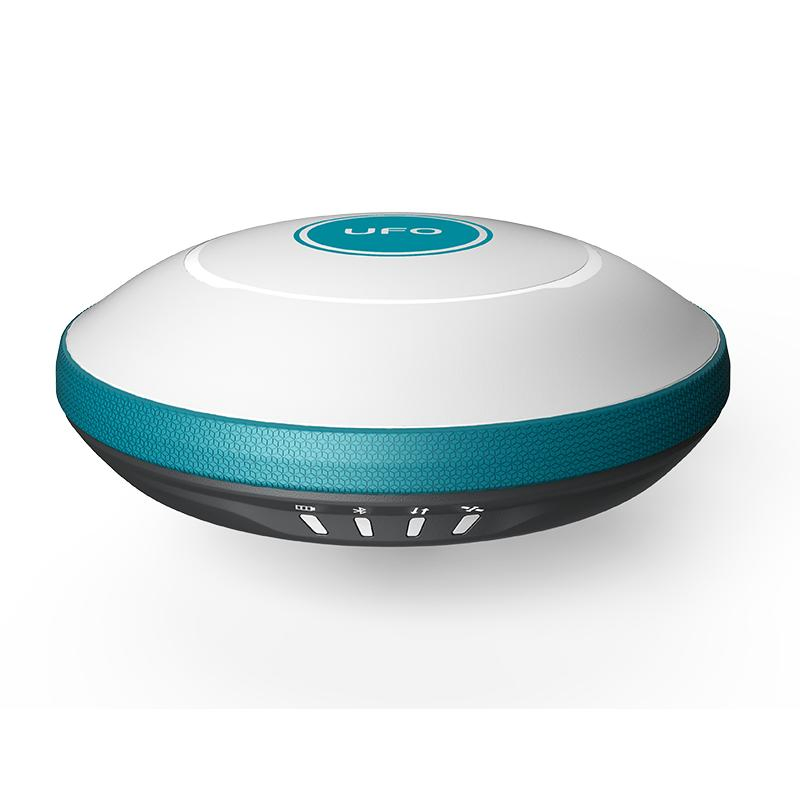

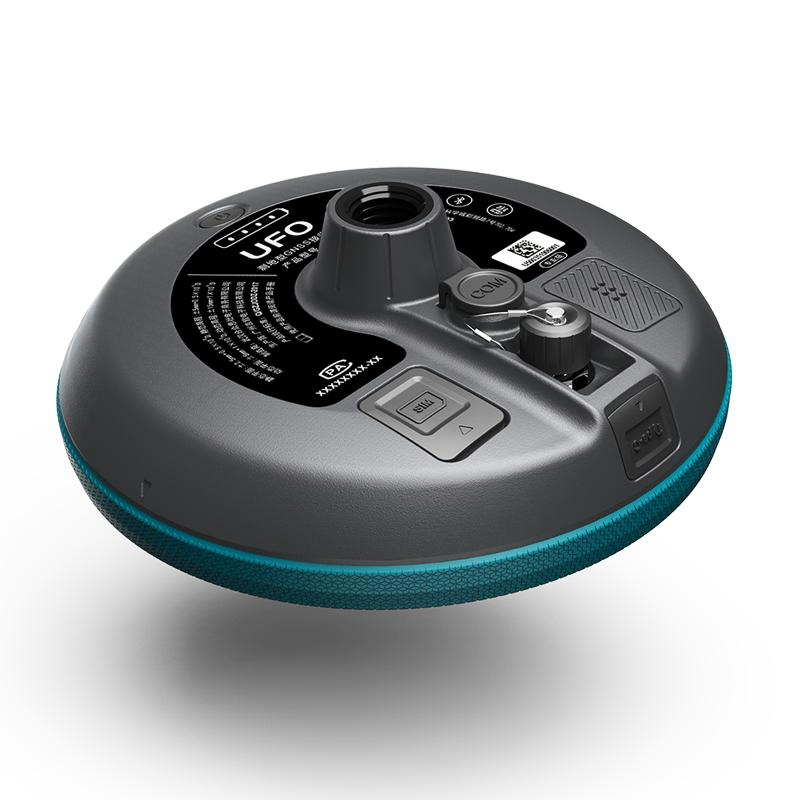

Inspired by flying saucers, providing high performance with a minimal, rugged magnesium alloy structure.

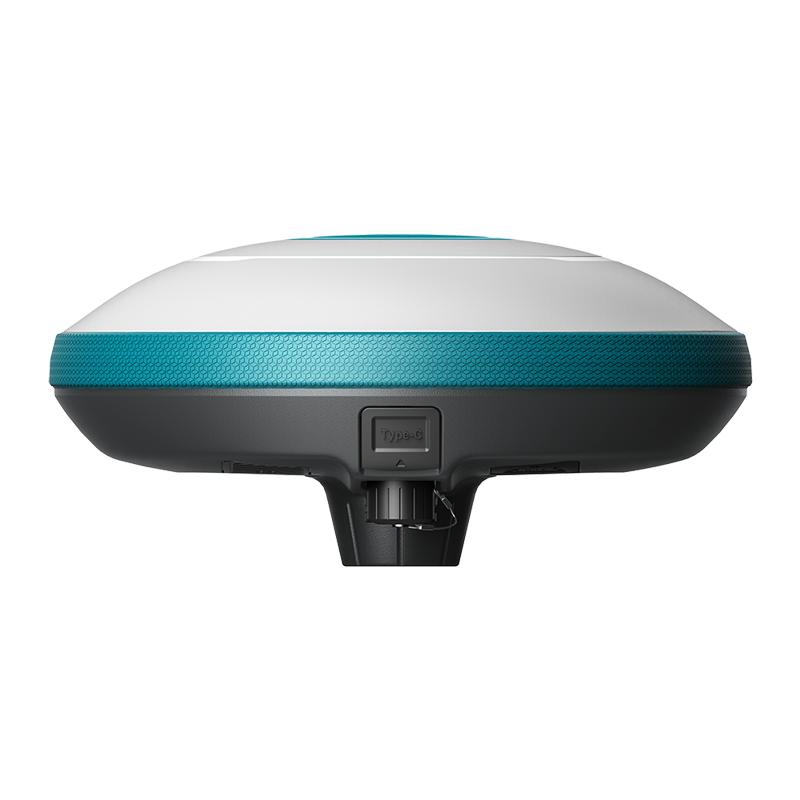

Features a concealed Type-C port for two-in-one charging and high-speed data transmission.
IP67 rated dustproof and waterproof, with a 2m drop-resistant design for extreme field environments.
Built-in high-sensitivity tilt sensor and electronic bubble for accurate data collection without leveling.
Access settings, status checks, and data downloads via smartphone WiFi—as simple as surfing the internet.
Maintains centimeter-level accuracy even when differential links are briefly interrupted.
The U5 is equipped with 800 channels, ensuring robust tracking of multiple satellite constellations including GPS, GLONASS, Beidou, and Galileo.
The built-in 7.2V 6800mAh battery provides up to 12 hours of continuous working time, and it supports external power input via the Type-C or 5-pin interface.
Yes, it features a built-in high-sensitivity tilt sensor and patented algorithm that eliminates the need for manual calibration, making field collection faster.
Absolutely. The device is IP67 rated (waterproof and dustproof) and can operate in temperatures ranging from -30°C to +65°C.
Yes, via the WebUI feature. You can connect through WiFi to adjust settings, check status, or download survey data directly on your phone or tablet.
In RTK mode, it achieves a horizontal accuracy of ±(8mm + 1ppm) and a vertical accuracy of ±(15mm + 1ppm).
