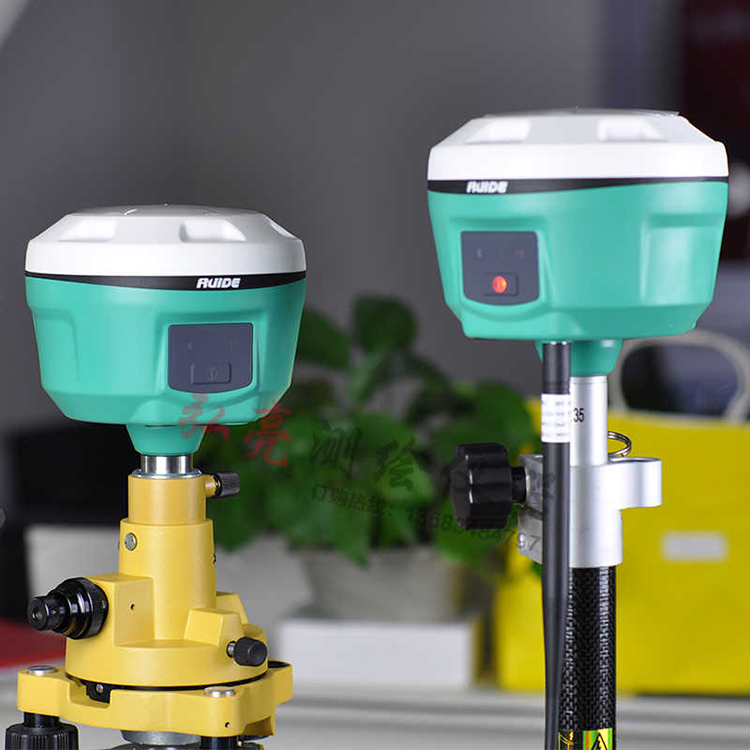

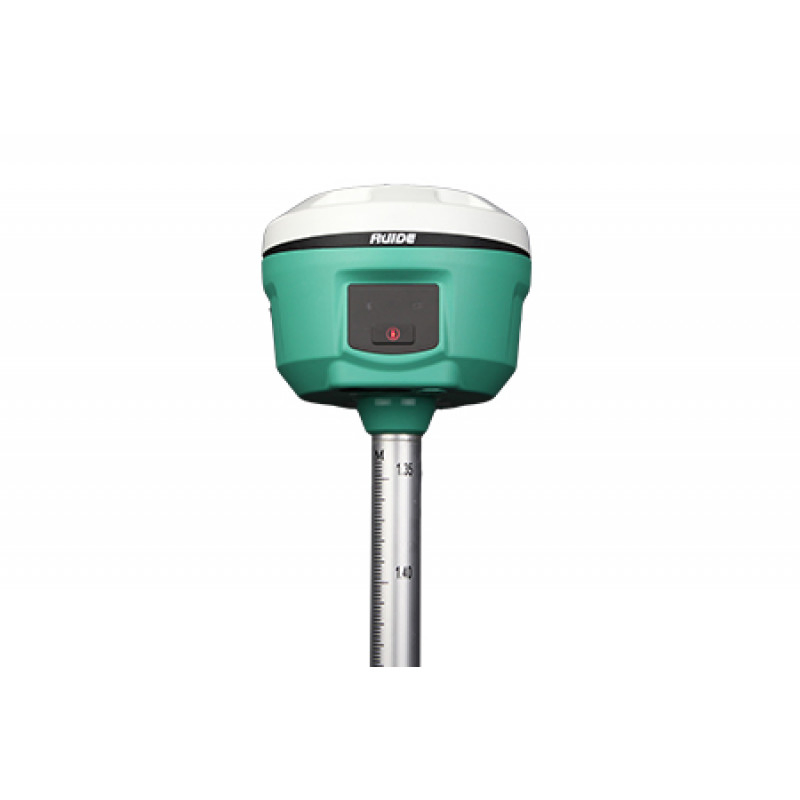

China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver
China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver
China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver
China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver
China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver
1 / 5
China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver
China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver
China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver
China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver
China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver

China Brand Rtk GPS Ruide R6 Dual-Frequency Equipped with IP 67 Waterproof Gnss Receiver

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

GNSS Receiver R6

Technical Overview

Model
R6
Channels
336 Channels
Frequency
Dual-Frequency
Warranty
3 Years
Static Accuracy
H: 2.5mm+0.5ppm / V: 5mm+0.5ppm
RTK Accuracy
H: 8mm+1ppm / V: 15mm+1ppm
Tracking
GPS, Glonass, Beidou, Galileo
Protection
IP67 Waterproof & Dustproof

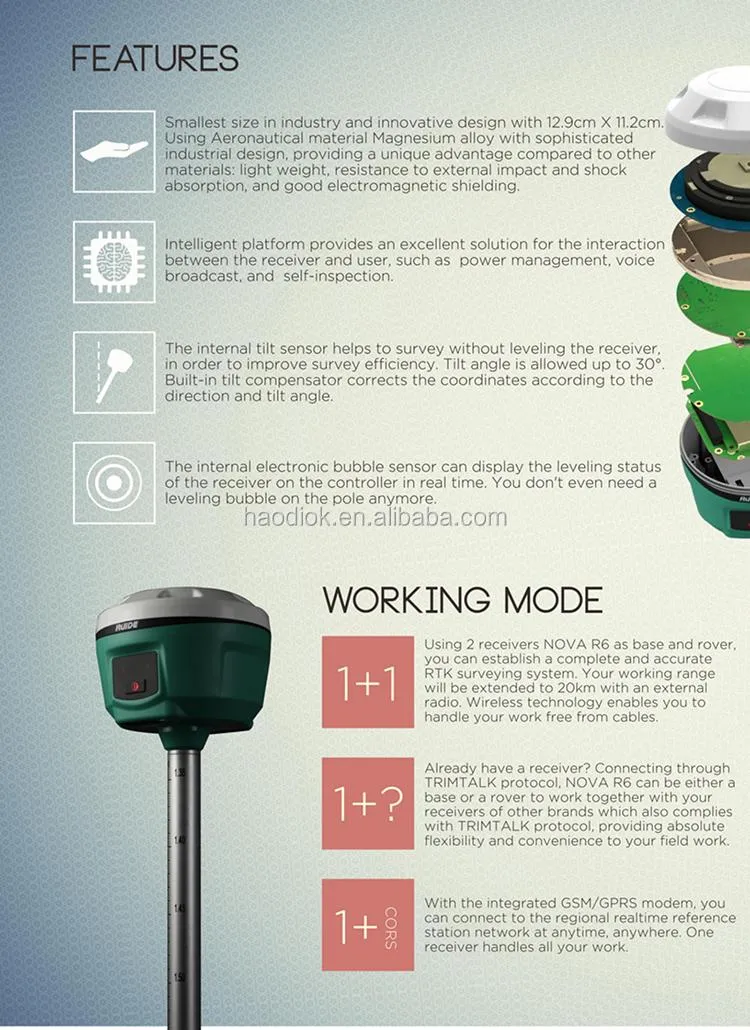

Key Product Features

The R6 GNSS receiver is designed for high-precision surveying with an integrated LED screen, advanced tilt sensors, and electronic bubble leveling. Its magnesium aluminum alloy shell ensures durability in extreme environments.

Feature View 1
Feature View 2

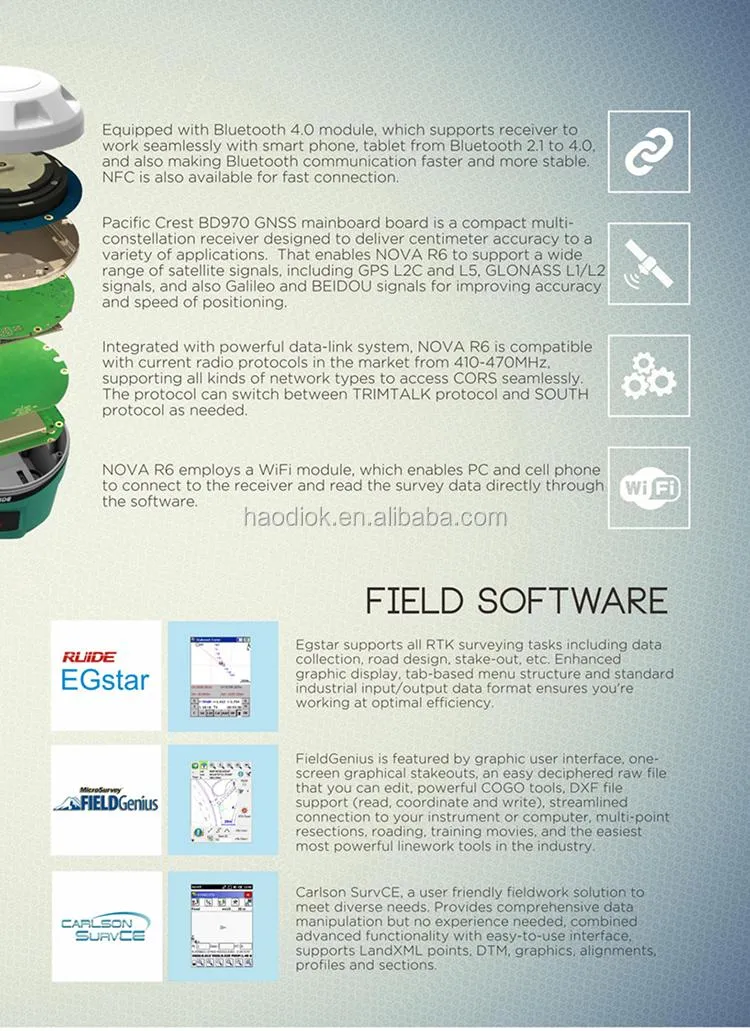

Feature View 3

Detailed Specifications

Surveying Performance
Signal TrackingBDS B1, B2, B3; GPS L1C/A, L1P, L2C/A, L2P, L3; GLONASS L1C/A, L1P, L2C/A, L2P, L3; Galileo E1, E5A, E5B; QZSS, SBAS
Initialization Time< 10s (Reliability > 99.99%)
Positioning Rate1Hz ~ 50Hz
Physical & Environmental
Dimensions & Weight12.9cm x 11.2cm | 970g (including battery)
Operating Temperature-45°C to +60°C
Shock/VibrationWithstand 2m pole drop; 40G impact test
Power & Communications
Battery Life7h (Static), 6h (Rover), 5h (Internal UHF Base)
Storage4GB Internal (stores > 3 years of raw data)
WirelessBluetooth 4.0/2.1, Internal Radio 0.5W/1W, WCDMA 3.5G
Data FormatRTCM 2.1, 2.3, 3.0, 3.1, 3.2; NMEA0183; NTRIP Protocol
Interface Details
Hardware Details
Usage Scenario
Internal Components

Packaging & Delivery

Package Size
55.00cm * 45.00cm * 70.00cm
Gross Weight
30.00kg
Packaging Detail

Frequently Asked Questions

What is the positioning accuracy of the R6 GNSS Receiver?
The R6 provides high-precision results with Static GNSS Surveying at ±2.5 mm + 0.5 ppm (Horizontal) and Real-Time Kinematic (RTK) Surveying at ±8 mm + 1 ppm (Horizontal).
How many channels does this device support for signal tracking?
The receiver is equipped with 336 channels, supporting multiple constellations including GPS, GLONASS, Beidou (B1, B2, B3), and Galileo.
Is the R6 receiver suitable for harsh environment conditions?
Yes, it features an IP67 waterproof and dustproof rating, protecting it from long-term immersion up to 1m depth and extreme temperatures from -45°C to +60°C.
Does the R6 support tilt compensation surveying?
Yes, it includes a built-in tilt compensator that automatically corrects coordinates based on the tilt direction and angle of the centering rod.
What is the battery life of the receiver?
The R6 uses removable Lithium-ion batteries. A single battery provides approximately 7 hours in static mode, 6 hours in rover mode, and 5 hours in internal UHF base mode.
How is data stored and transferred?
It has 4GB of internal storage, capable of holding over 3 years of raw observation data. Data can be transferred via a plug-and-play USB mode or Bluetooth 4.0.
