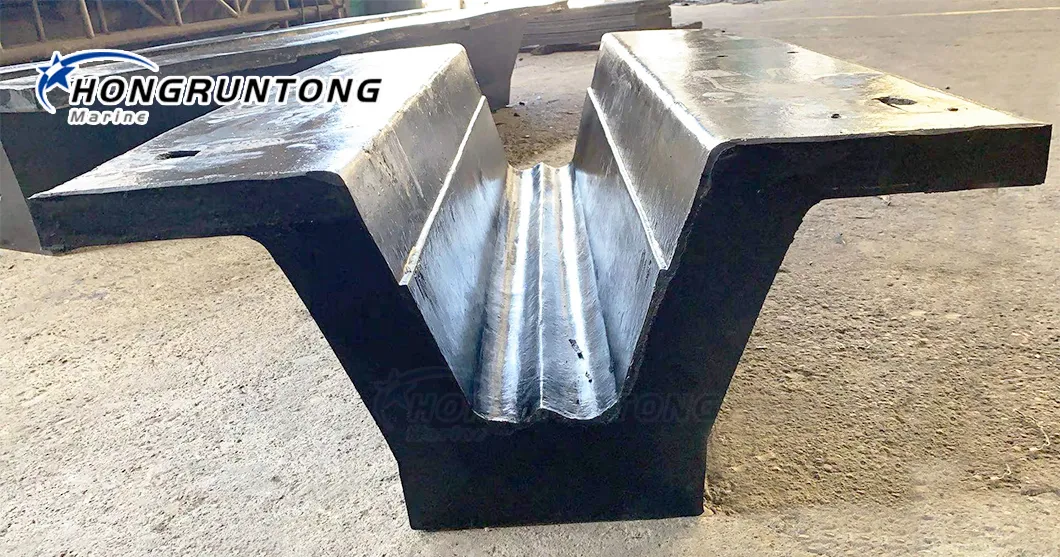

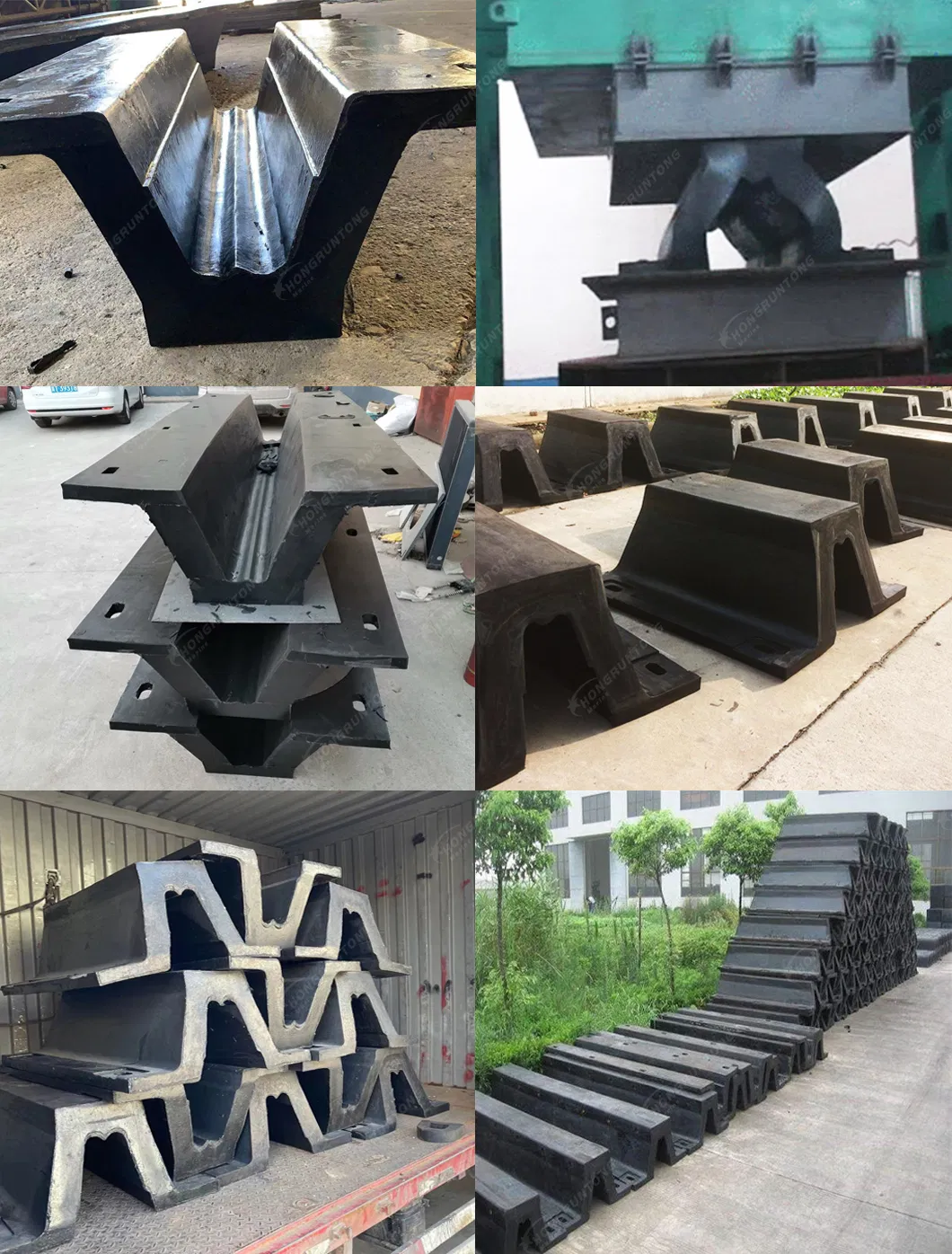

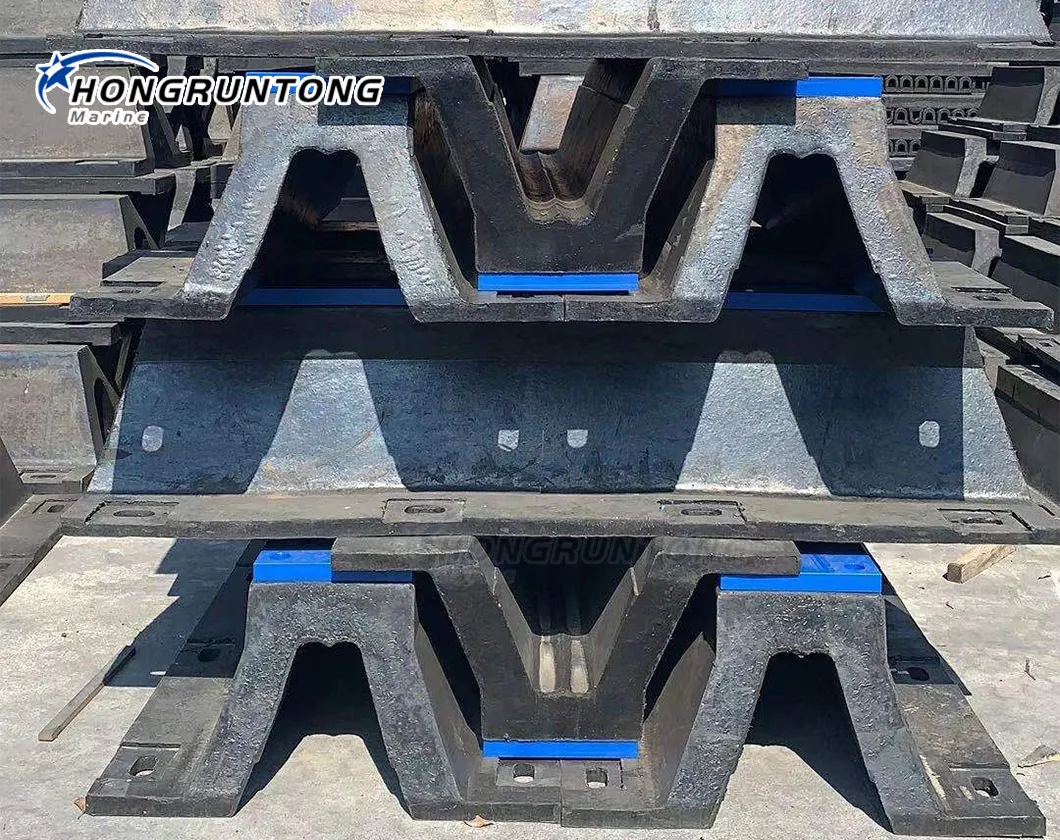

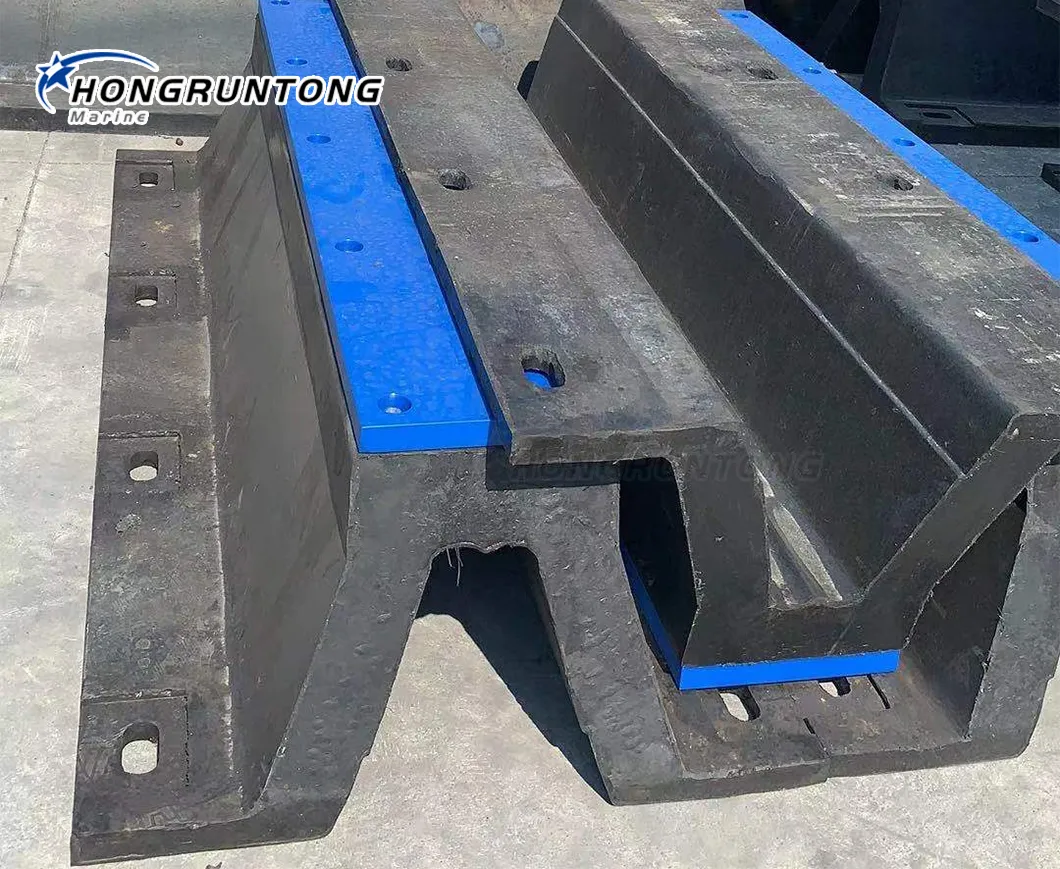

Super Arch Fenders

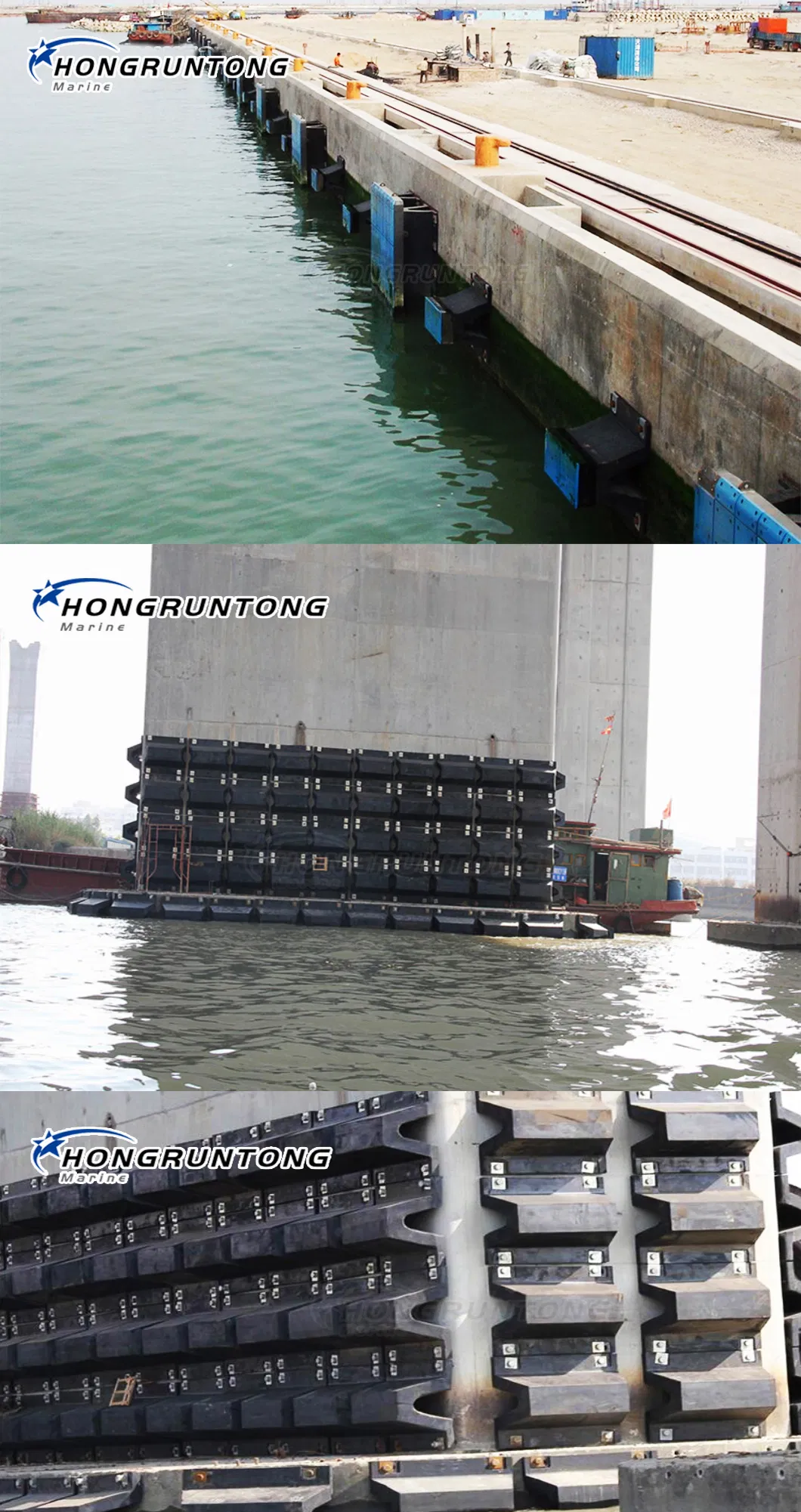

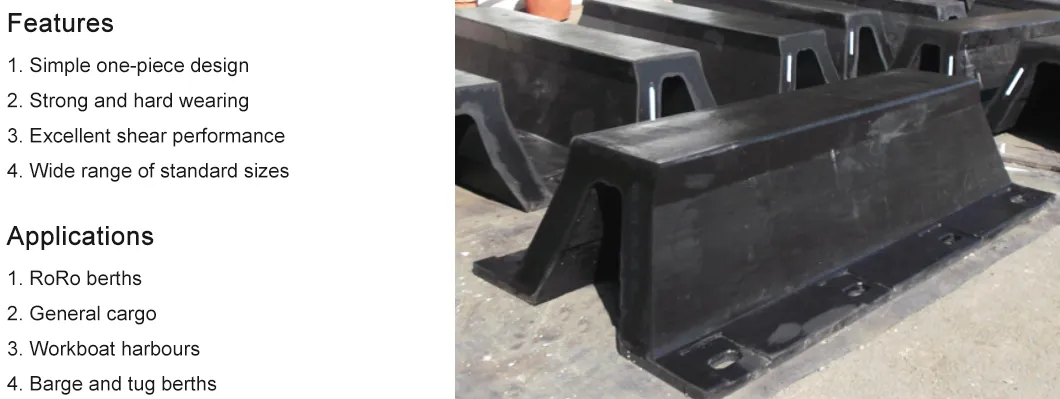

Super Arch Rubber Fenders, sometimes called as V type fenders, can provide trouble-free service for protecting vessels and docks from damages even under the most severe conditions. Super Arch Fenders are simple and rugged marine fender systems, providing reliable and trouble-free service for a wide variety of berths even under the most severe conditions.

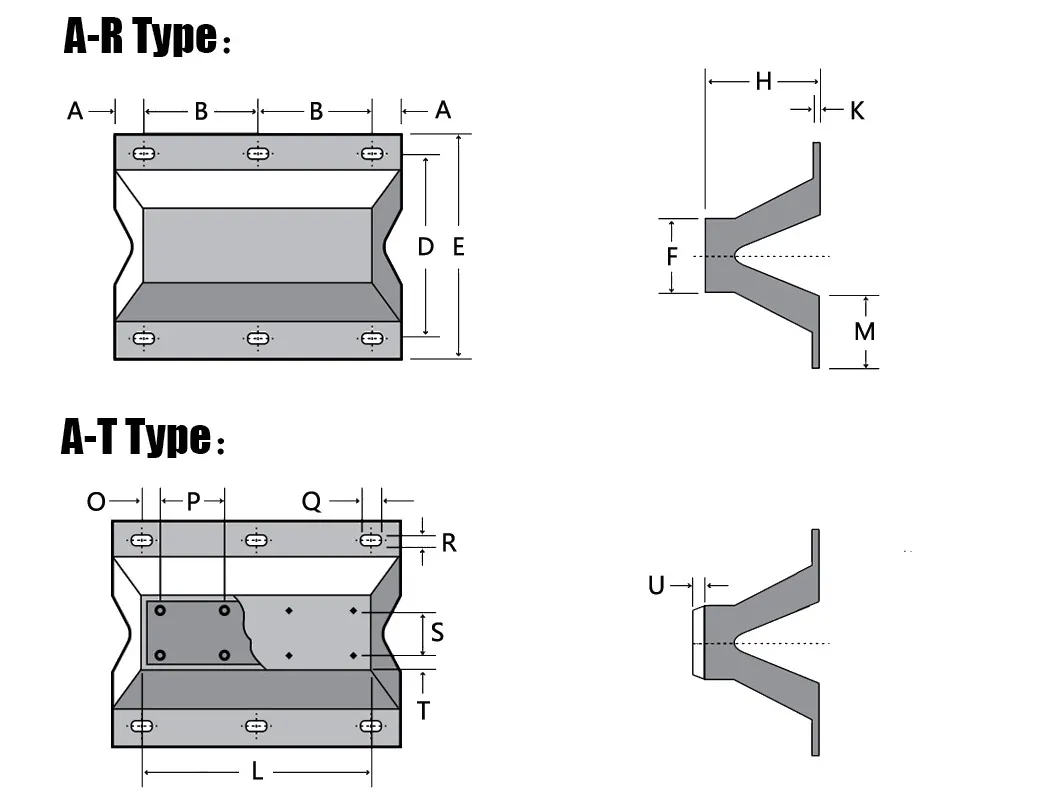

| Model A-R | A [mm] | D [mm] | E [mm] | F [mm] | H [mm] | K [mm] | M [mm] | R x Q [mm] | L max |
|---|---|---|---|---|---|---|---|---|---|
| 150 | 50 | 240 | 326 | 98 | 150 | 16-20 | 108 | 20x40 | 3000 |
| 200 | 50 | 320 | 422 | 130 | 200 | 18-25 | 142 | 25x50 | 3000 |
| 300 | 75 | 480 | 595 | 195 | 300 | 25-32 | 194 | 28x56 | 3500 |
| 500 | 125 | 800 | 981 | 325 | 500 | 25-32 | 318 | 42x84 | 3500 |
| 1000 | 250 | 1550 | 1850 | 650 | 1000 | 50-62 | 580 | 54x108 | 3000 |
*Note: Other sizes can be customized according to the requirements.

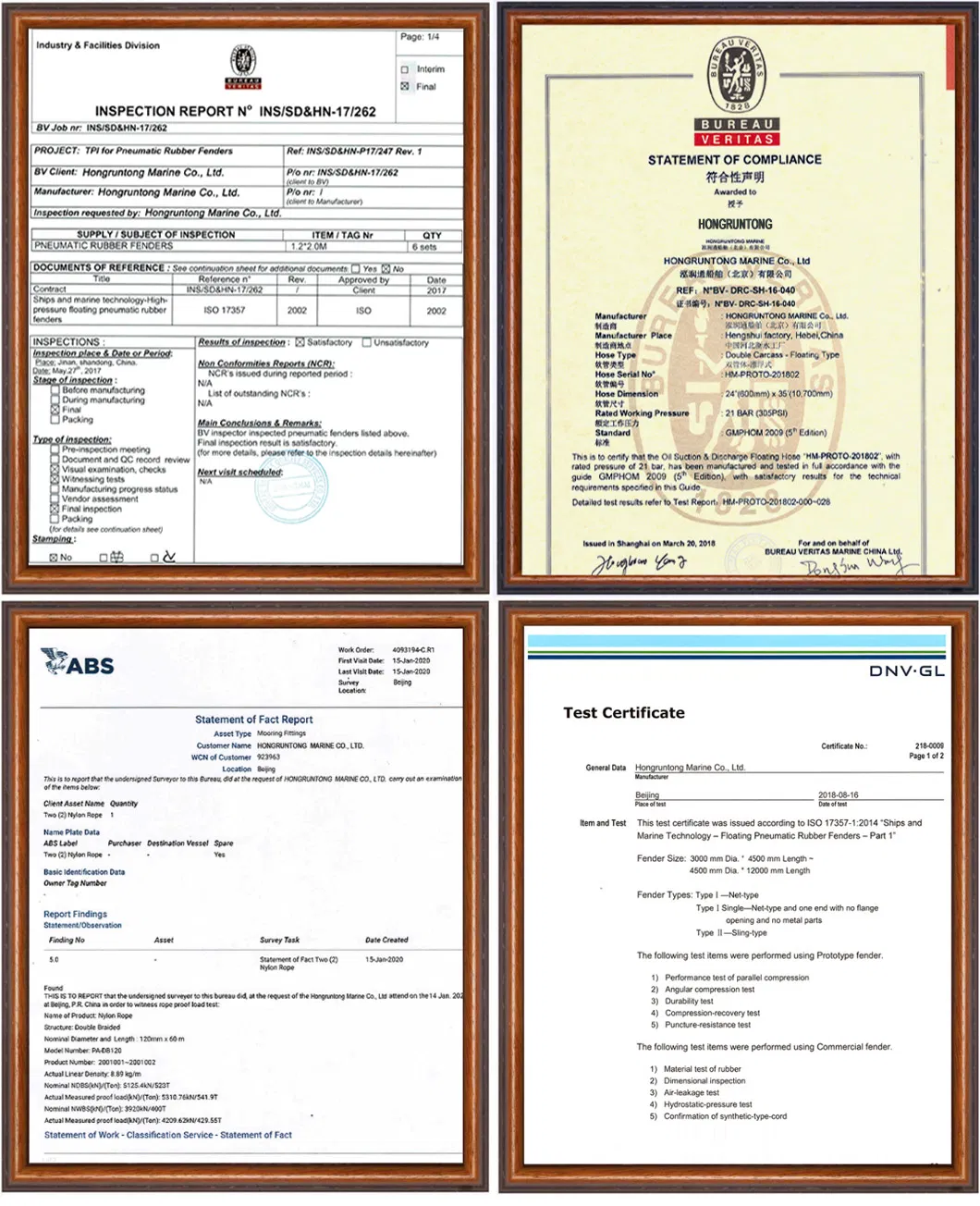

With certification, product quality is More Guaranteed!
Since 1990, our team has been committed to the supplying of equipments, tools and solutions for the marine and offshore industry. Up to now, we have reached cooperation with 800+ customers in more than 30 countries and regions around the world.
