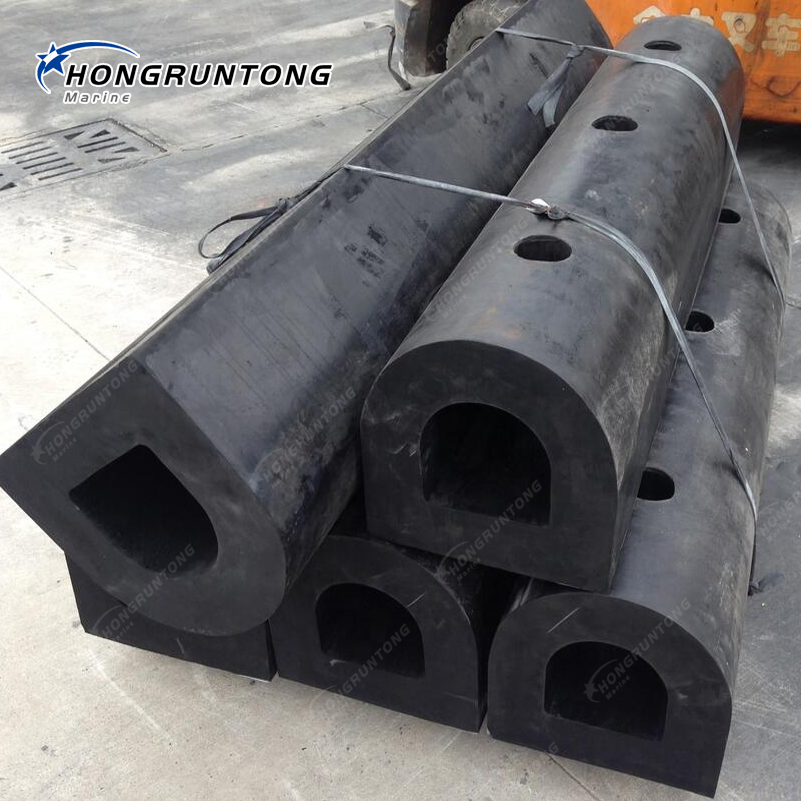

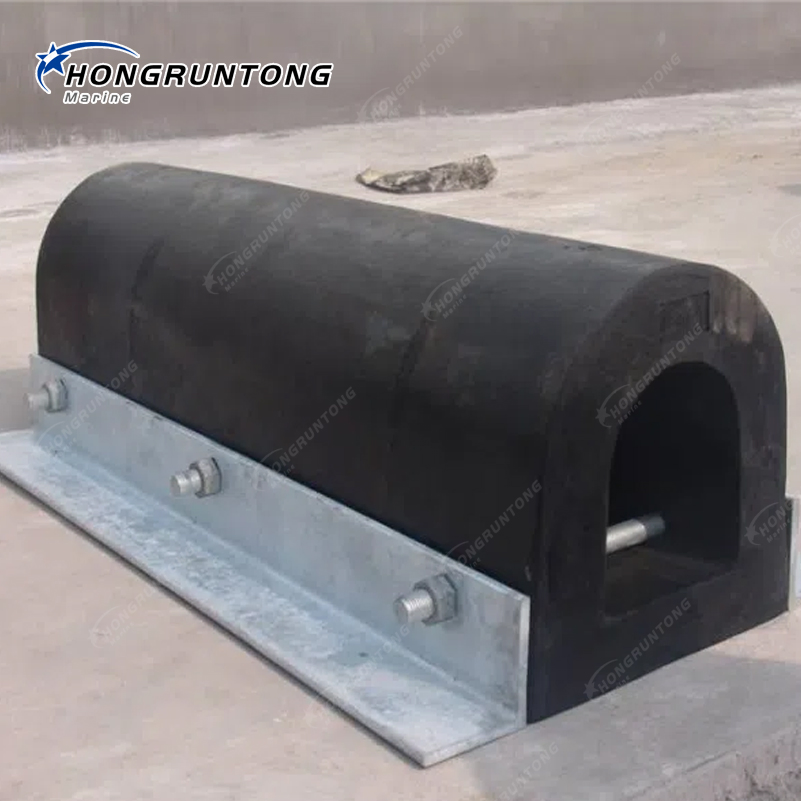

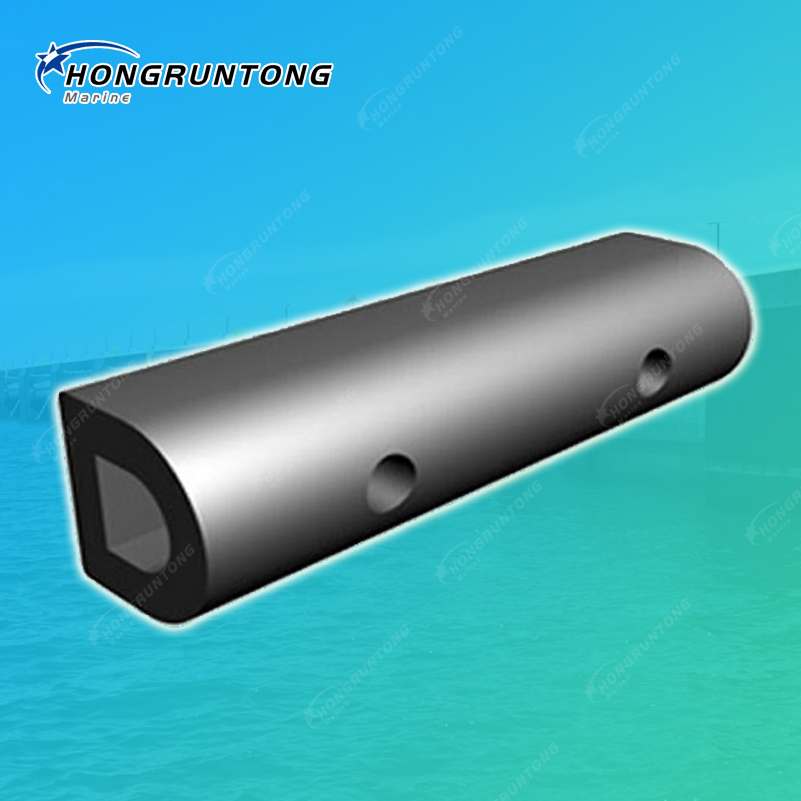

D Type Fenders

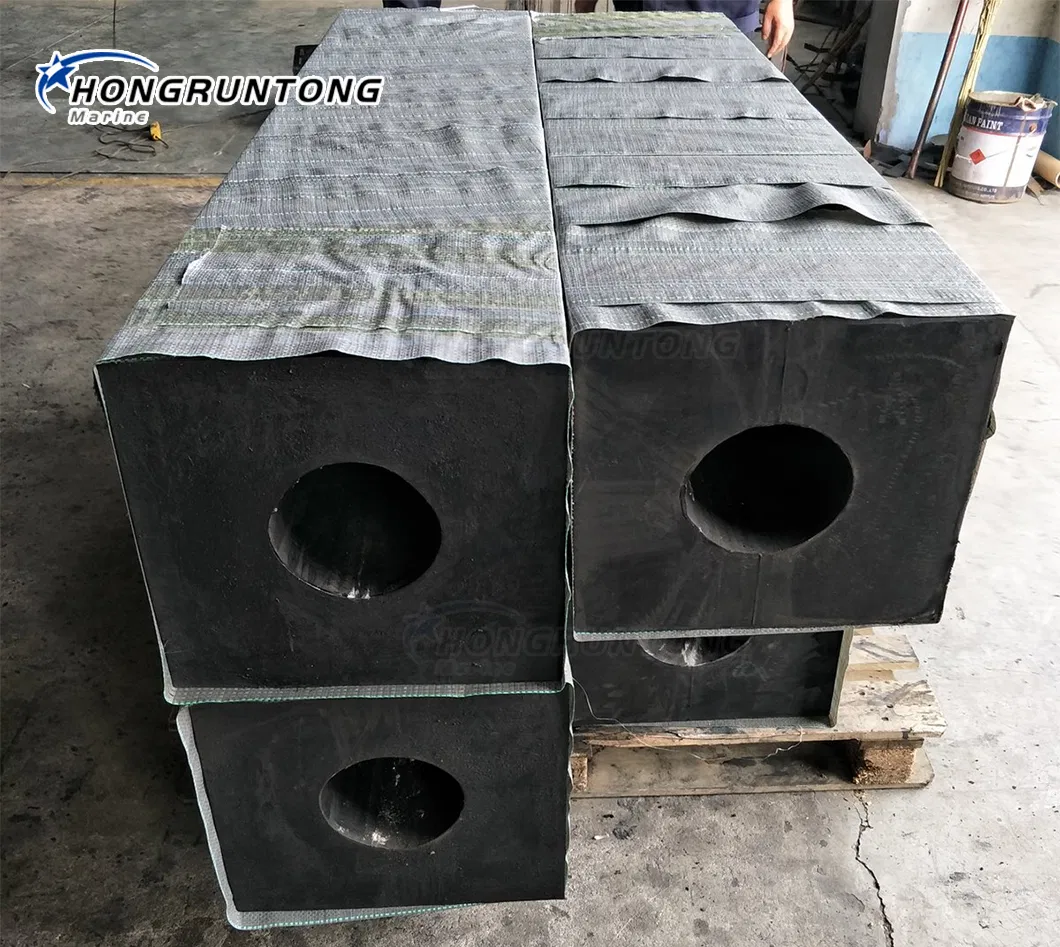

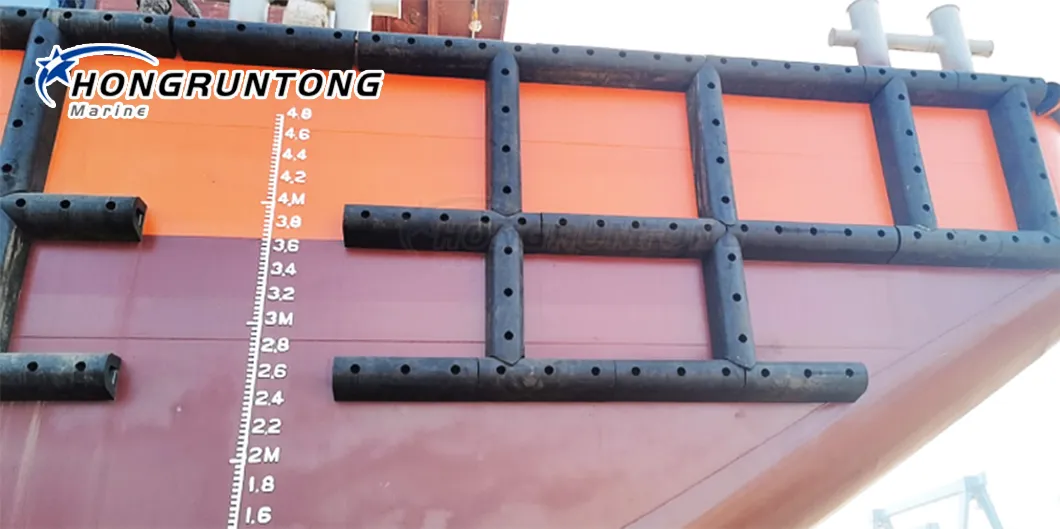

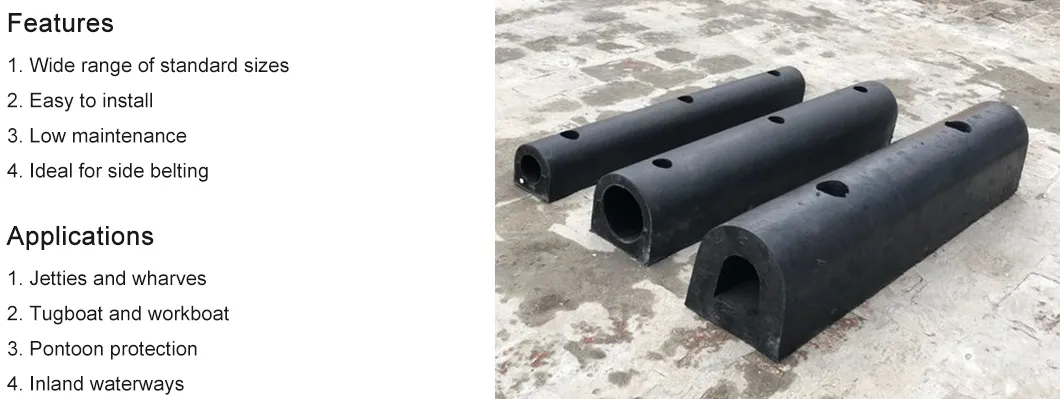

D Type Fenders are widely utilized on Tugs and Ocean-going Vessels, as well as for extensive applications on small jetties and fishing harbors. Also known as Extruded fenders or Square fenders, these are ideal for smaller vessels and lighter maritime applications. They are typically secured to the structure via bolting through the top or sides.

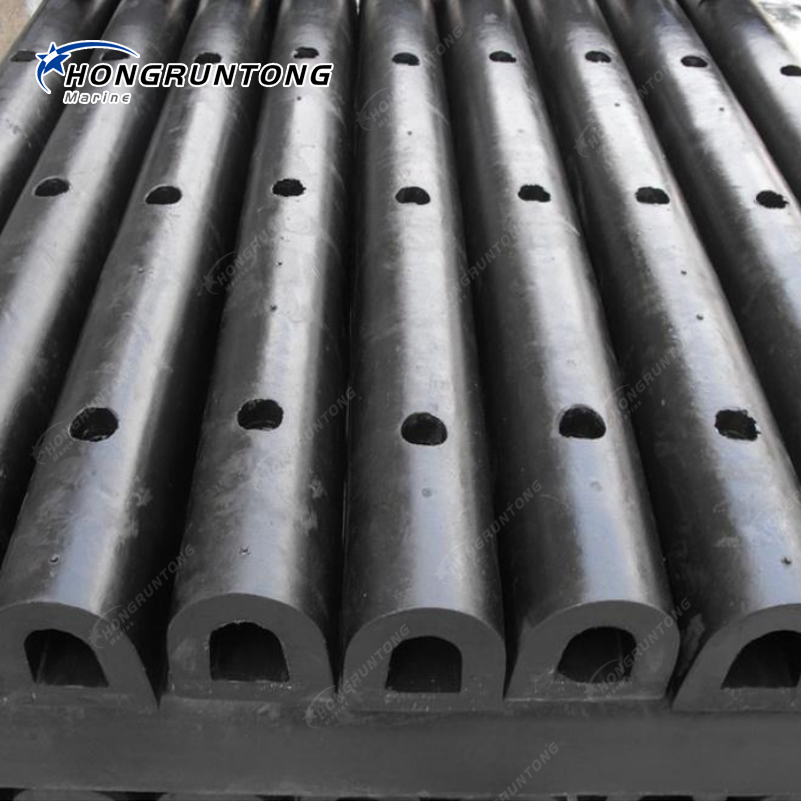

Available sections include D shape, Square shape, and Wing type. They can be supplied in virtually any length and customized with specific cutting and drilling. The fender range is categorized into four primary types: E-DC, E-SC, E-DD, E-SD.

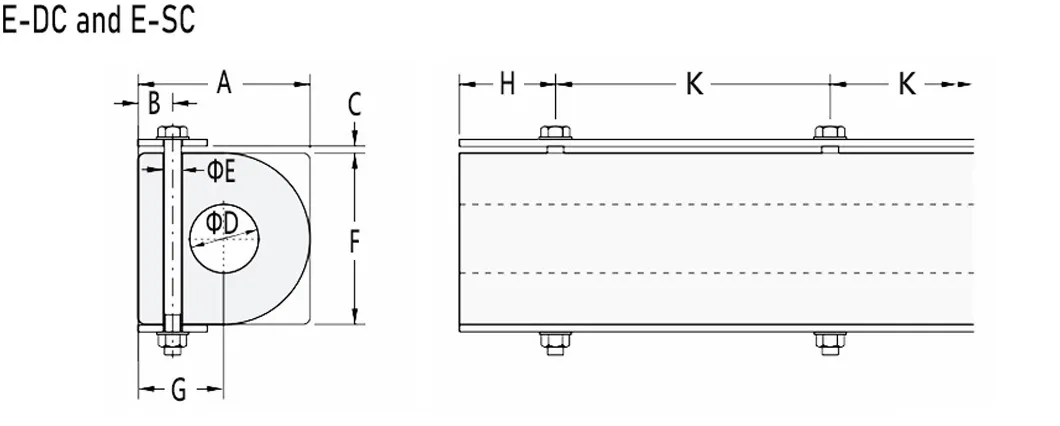

| A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G [mm] | H [mm] | K [mm] |
|---|---|---|---|---|---|---|---|---|
| 100 | 25 | 10 | 30 | 15 | 100 | 50 | 90-130 | 200-300 |
| 150 | 30 | 12 | 65 | 20 | 150 | 75 | 110-150 | 250-350 |
| 200 | 45 | 15 | 75 | 25 | 200 | 100 | 130-180 | 300-400 |
| 250 | 50 | 20 | 100 | 30 | 250 | 125 | 140-200 | 350-450 |
| 300 | 60 | 25 | 125 | 30 | 300 | 150 | 140-200 | 350-450 |
| 400 | 80 | 30 | 175 | 35 | 400 | 200 | 140-200 | 350-450 |
| 500 | 100 | 30 | 250 | 35 | 500 | 250 | 140-200 | 350-450 |
*Note: Other sizes can be customized according to the requirements.

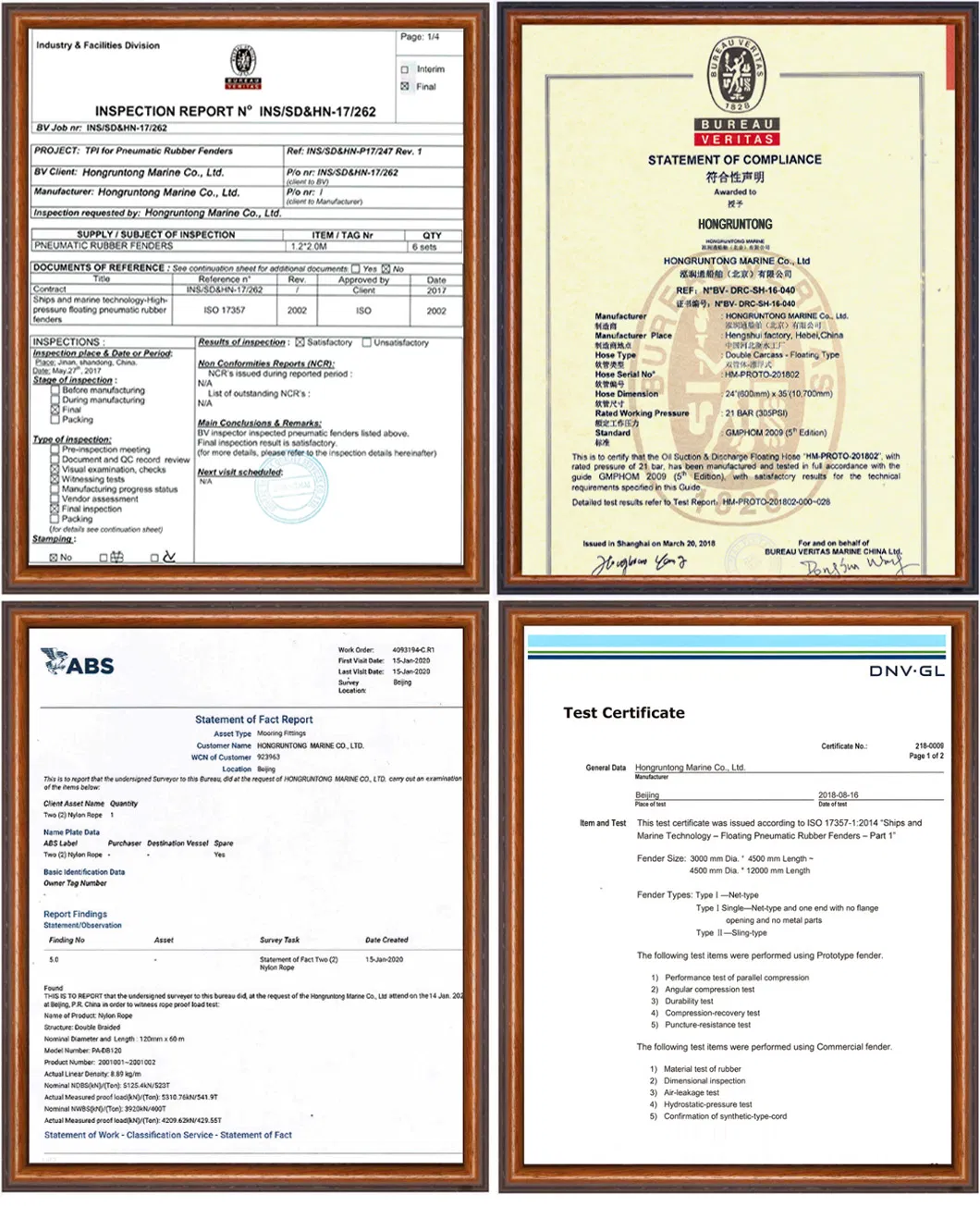

With full international certification, product quality is guaranteed. Since 1990, the commitment has been to supply high-standard equipment, tools, and solutions for the marine and offshore industry globally, serving over 800+ customers across 30+ countries.
