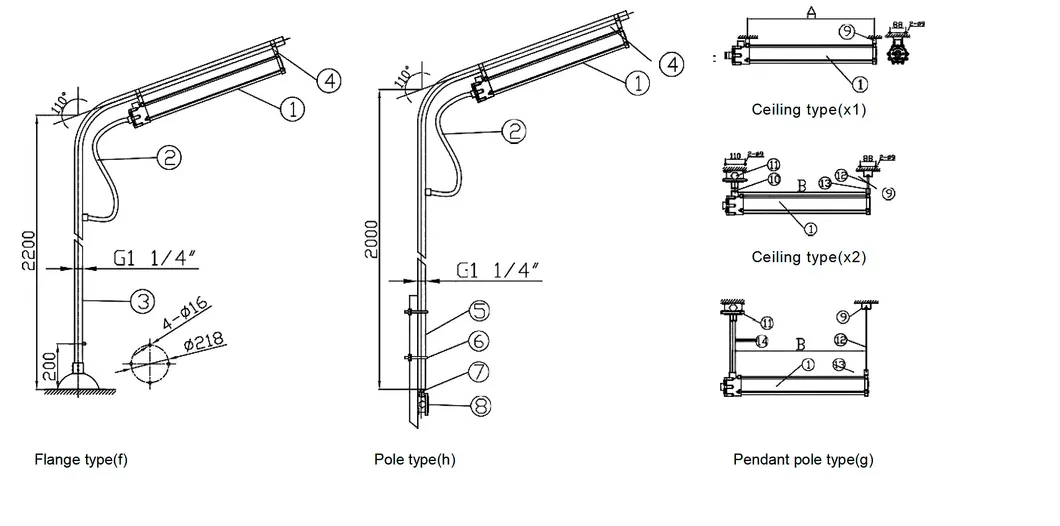

Our explosion-proof series is specifically designed for challenging environments such as refineries, mining, chemical plants, and marine applications. These rugged, flameproof LED luminaires feature integrated mounting channels for universal installation. Constructed with high-grade aluminum and UV-resistant materials, they are highly resistant to aggressive chemical agents and harsh weather conditions.
The linear explosion-proof light fitting is intended for use in places with explosive gas and dust atmospheres. It is ideal for Zone 2 and Zone 22 hazardous areas, supporting IIA, IIB, and IIC type environments.
| Parameter | Value / Unit |
|---|---|
| Apparatus Category | II 3GD |
| ATEX Marking (Zone 2) | II3G Ex nR IIC T6 Gc |
| ATEX Marking (Zone 22) | II 3D Ex tc IIIC T80 ºC Dc IP66 |
| Ingress Protection | IP66 |
| Resistance to Shock | IK09 / IK10 |
| Source Type | Luxeon & Cree SMD Chips |
| Cable Entry | Two entries Ex e M25 & M27x1.5 |
| Estimated Service Life | 70,000h at Tamb=40°C |
| Model Wattage | 10/20W | 40W | 60W |
|---|---|---|---|
| Lumen Output | 1300-2400 LM | 4800 LM | 7200 LM |
| Dimensions (mm) | 720 x 113 x 125 | 1020 x 113 x 125 | 1320 x 113 x 125 |
| Net Weight | 3.4 kg | 3.8 kg | 4.2 kg |
| Enclosure | Copper-free aluminum alloy and PC pipe | ||
| CRI | > 80 | ||
| Power Factor | > 0.9 | ||
| Warranty | 5 Years | ||
