PLC dimming control system high voltage replacement for DALI system or DMX512 system with LED flood light solution for more competitive low prices and more durable, overstable, and easier installation.
Designed for challenging environments such as -70°C Cold Storage, Warehouse Workshops, and Engineering Lighting, this solution provides sustainable high quality and guaranteed service.

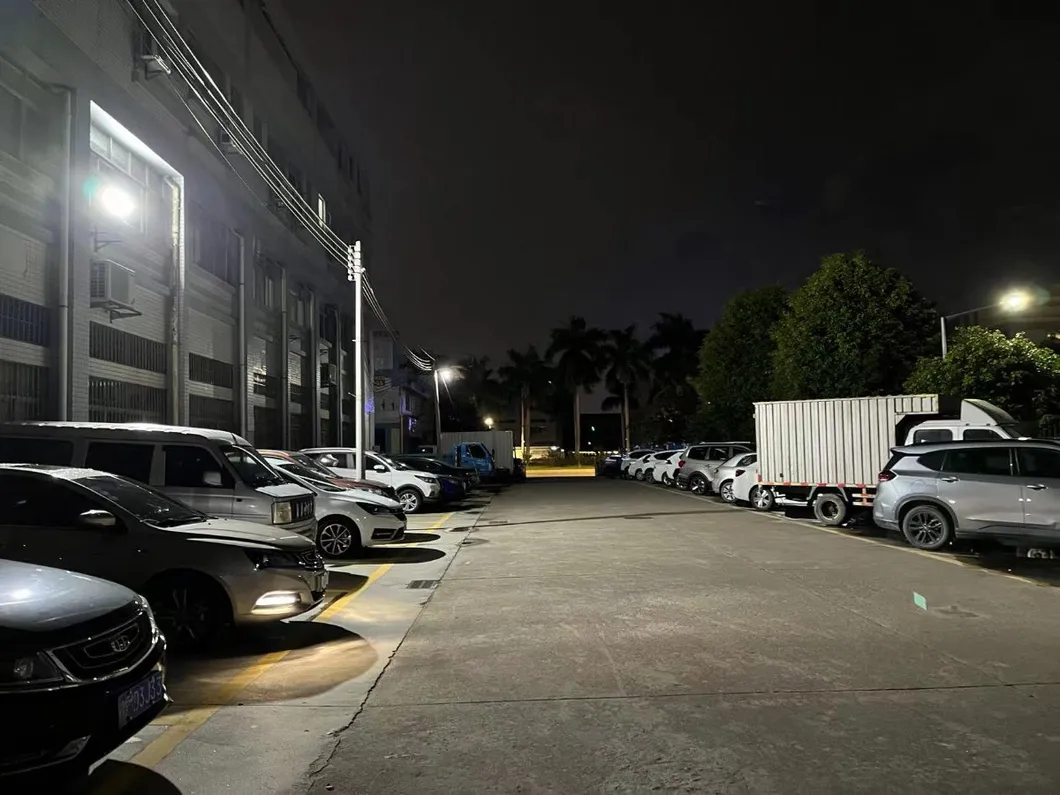

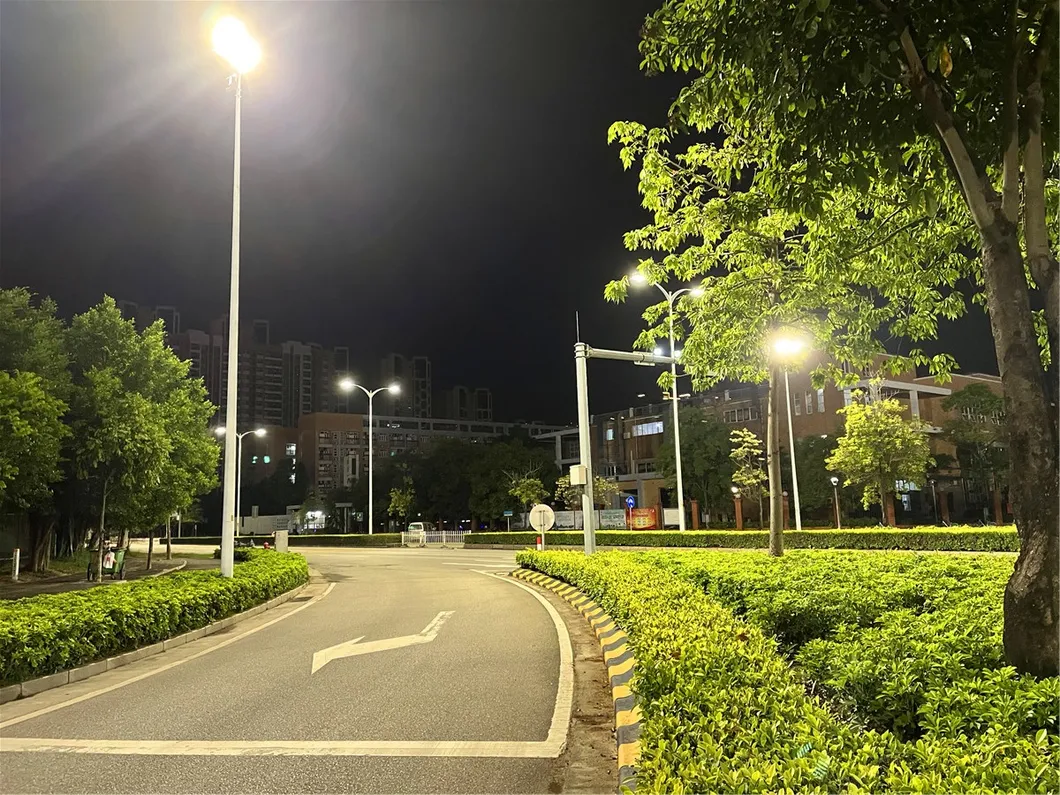

The special light series is ideally used in challenging environments such as building lighting, roadway and car parking construction, and loading areas. The diverse portfolio offers the opportunity to find the right product for special circumstances.
| Category | Specifications |
|---|---|
| CERTIFICATIONS | CE RoHs, SAA C-tick, TUV ETL |
| HOUSING | Aluminum alloy ADC12 |
| LENS | 4mm thick front tempered glasses, +95% light transmission, Shock and vibration resistant |
| PERFORMANCE | 10400 to 20800 lumens, Up to 130-155 lm/w, Rated > 60,000 hours (L70) |
| IP RATING | IP65/IP66/IP67, Dust tight and protected against big waves or strong water jetting |
| OPERATING TEMP | From -30°F up to 131°F (-30°C to 55°C) |
| DIMMING | 1-10V dimming standard or PWM on requests |

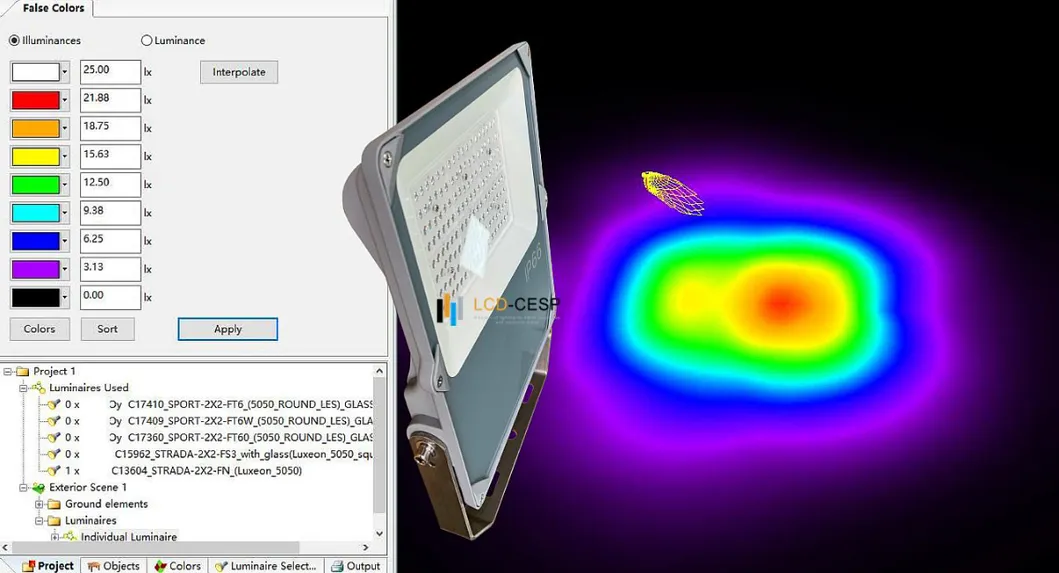

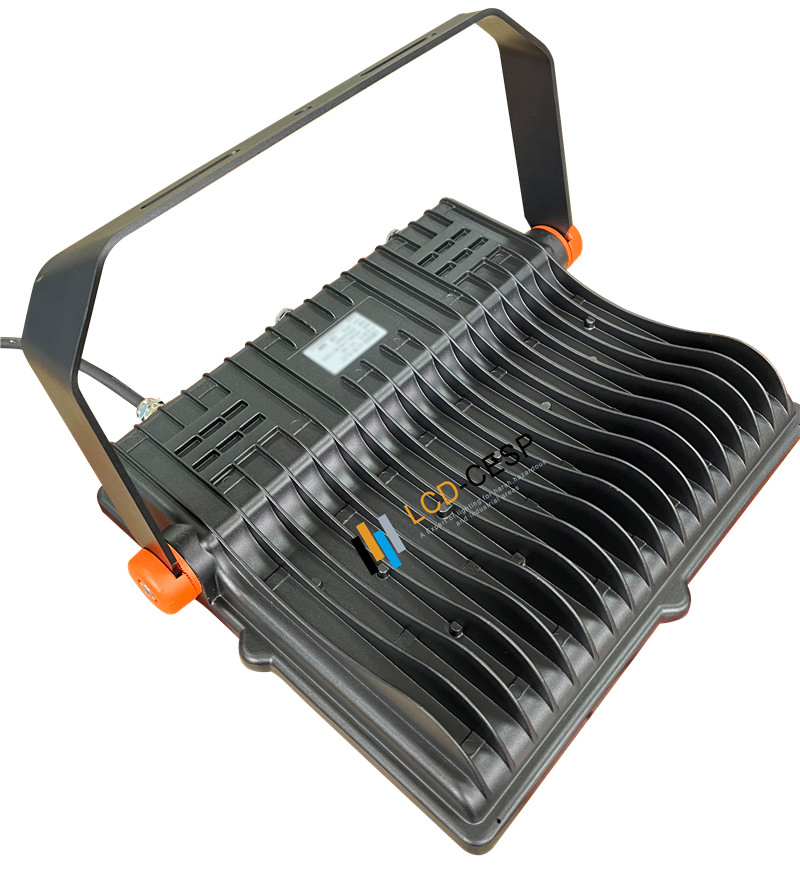

Thermal management is critical in industrial applications. This floodlight is designed to withstand extreme environments through advanced heat dissipation and optimized optic beams. While many fixtures fail due to poor thermal management, this series ensures long-term reliability in compact designs.
| Model No | LED Source | Wattage | Lumens | Efficiency |
|---|---|---|---|---|
| FE-50 | SMD 3030/5050 | 50W | 6500-7750lm | 130-155lm/w |
| FE-100 | SMD 3030/5050 | 100W | 13000-15500lm | 130-155lm/w |
| FE-150 | SMD 3030/5050 | 150W | 19500-23250lm | 130-155lm/w |
| FE-200 | SMD 3030/5050 | 200W | 26000-31000lm | 130-155lm/w |
