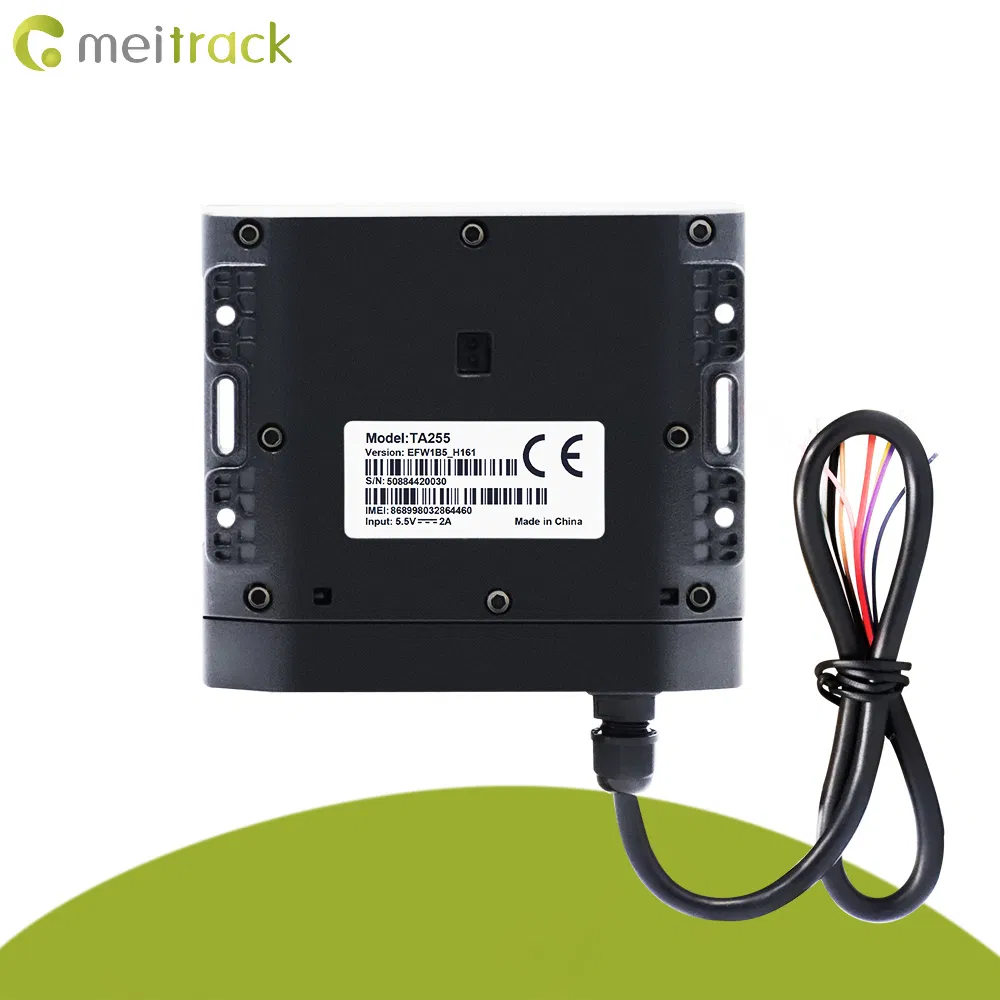

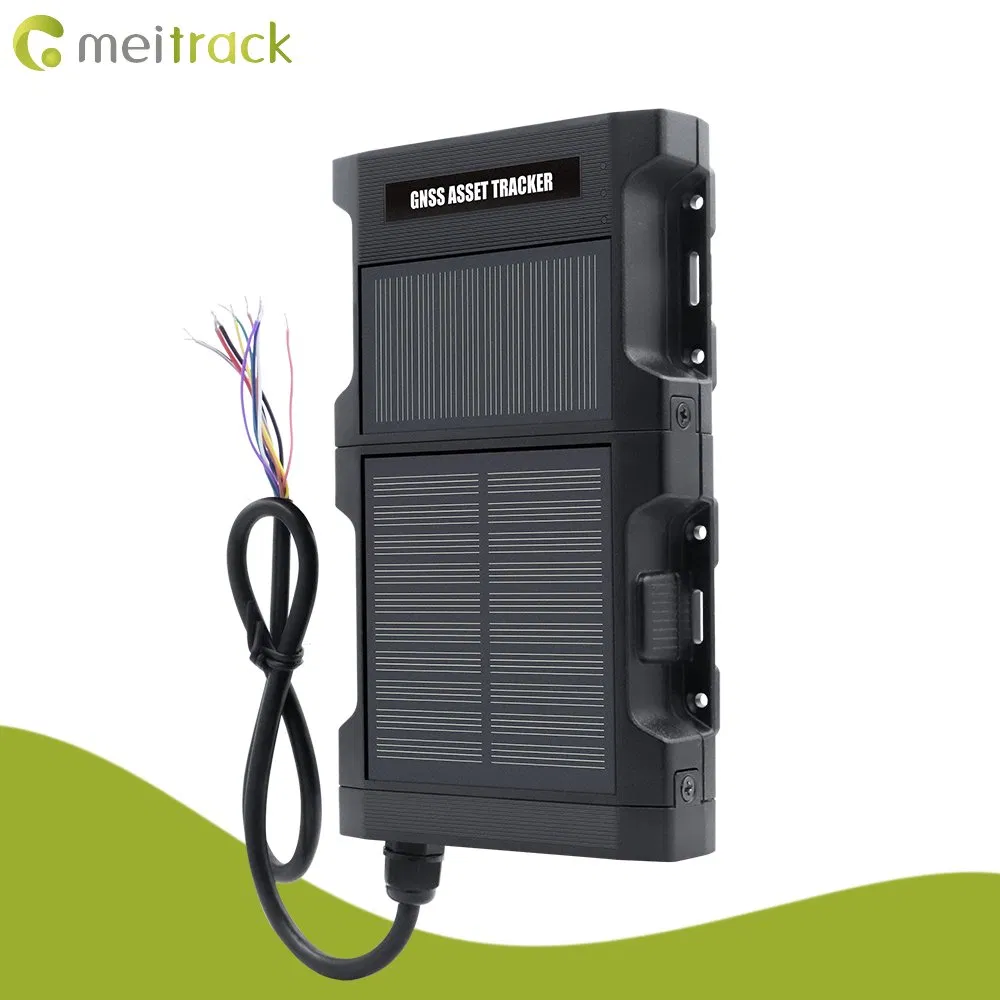

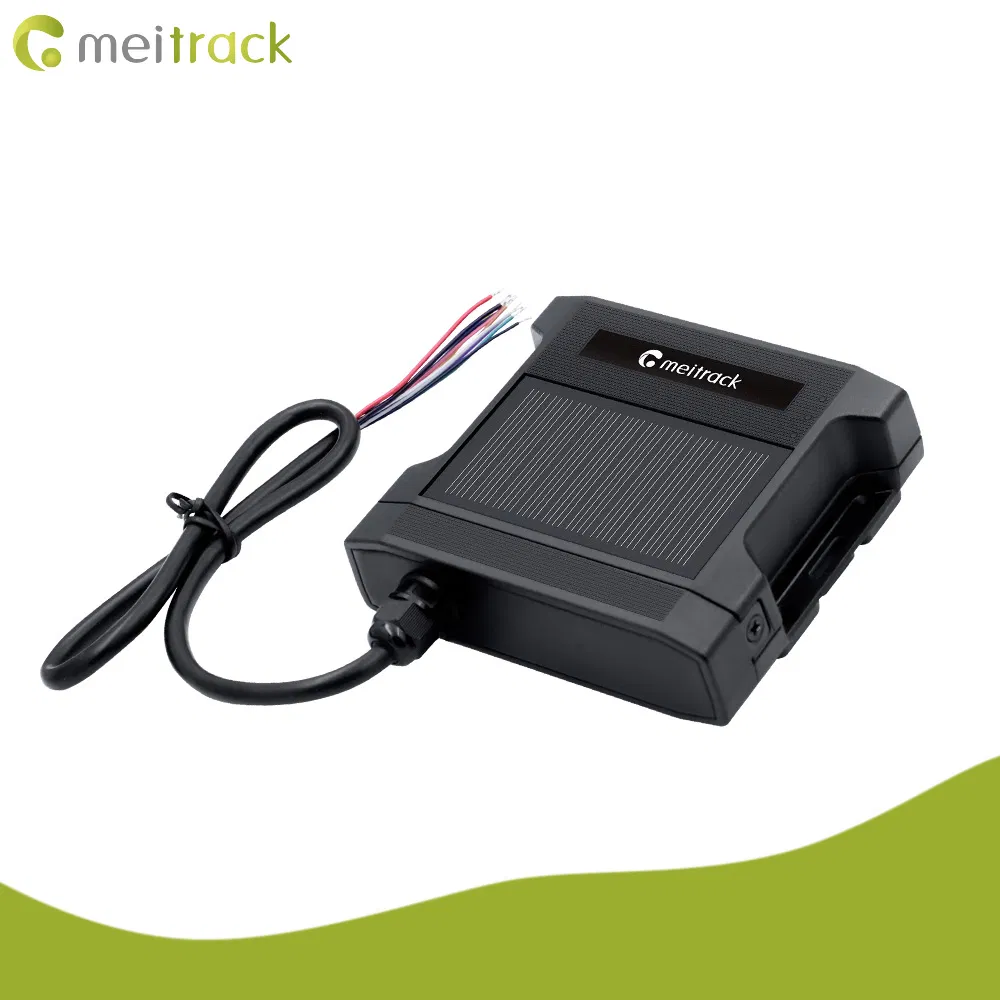

Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker
Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker
Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker
Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker
Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker
1 / 5
Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker
Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker
Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker
Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker
Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker

Marine Containers Assets IP67 BLE WIFI Cargo Security Monitoring Portable GPS Asset Car Tracker

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model:TA255L
Certification:CE
Warranty:1 Year
Dimension:71 mm X 95 mm X 27 mm
Built-in Battery:3200 mAh/3.7V (Optional)
IP Rating:IP67 Water Resistance
GPS Accuracy:2.5 Meters
Memory:8 MB Flash
Sensor:3-Axis Accelerometer
USB Interface:Micro-USB
✓

Product Overview

4G Solar Asset Tracker TA255 Series

Solar Asset Tracker Overview
Technical Specifications

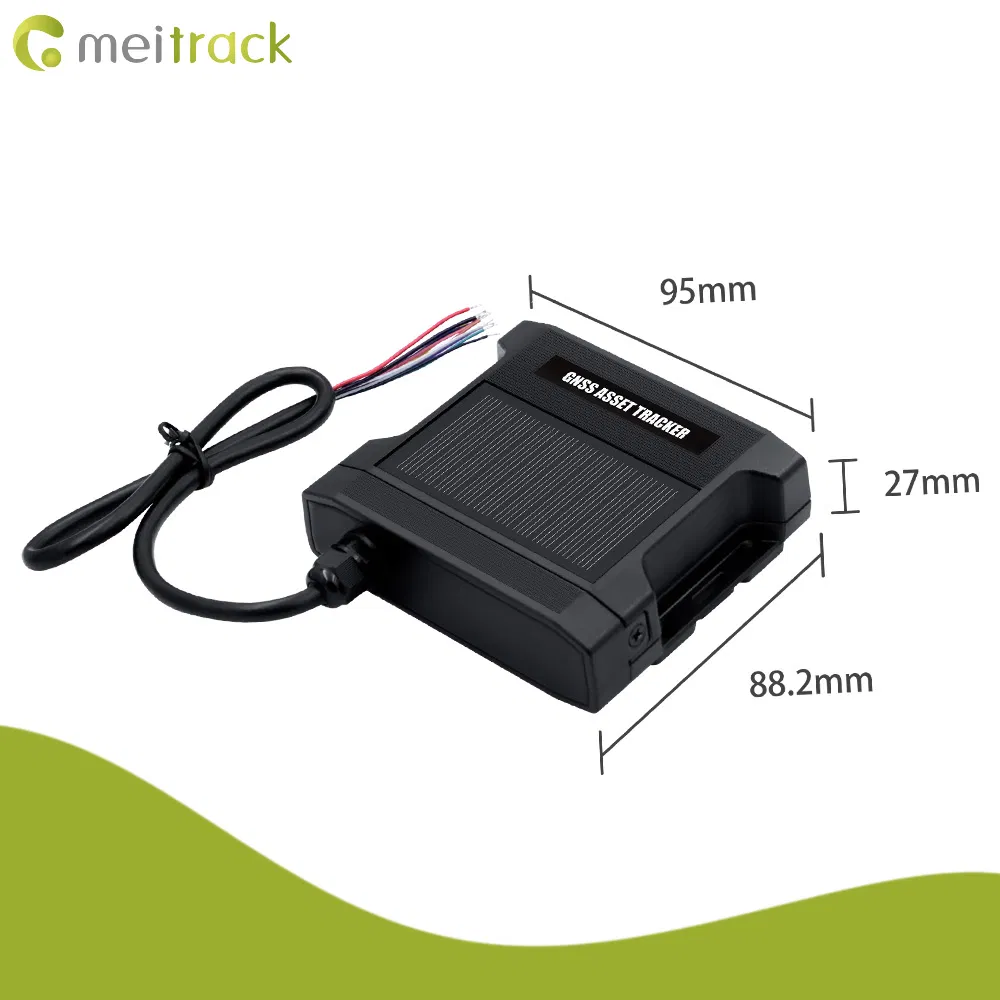

Dimensions71 mm × 95 mm × 27 mm (L × W × H)
MaterialABS
Operating Voltage3.7V
Minimum Current (Sleep)0.29mA
Charging VoltageMagnetic: 5.5 V/2 A; Battery Box: 11.4-60 V
Solar Charging CurrentTracker: MAX 70 mA; Battery Box: MAX 100 mA
GPS ModeGPS, BD, Glonass; LBS+WIFI assisted positioning
BluetoothCompliant with Bluetooth 5.0/4.2
WiFi802.11 b/g/n, 2.4 GHz, STA mode
Memory8 MB flash
Sensors3-axis accelerometer, Drop detection sensor
+

Standard Accessories

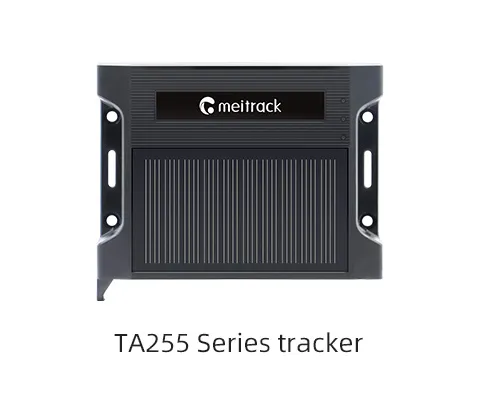

Accessory 1

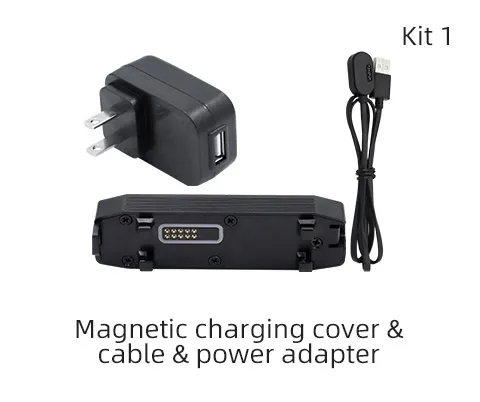

Accessory 2

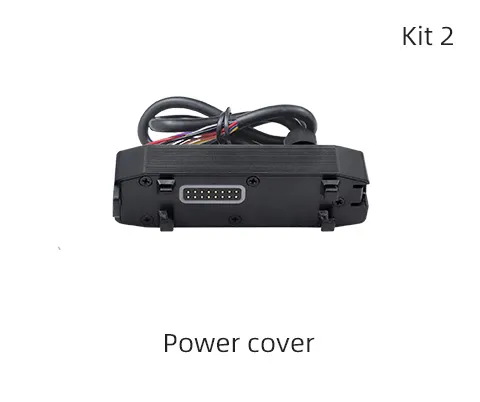

Accessory 3

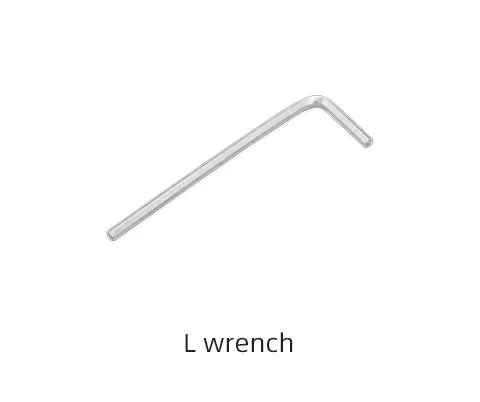

Accessory 4

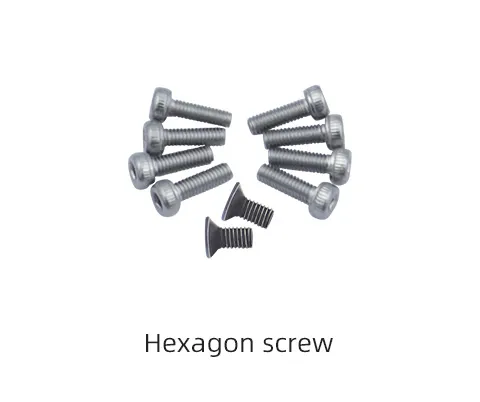

Accessory 5
Accessory 6
★

Applications & Certificates

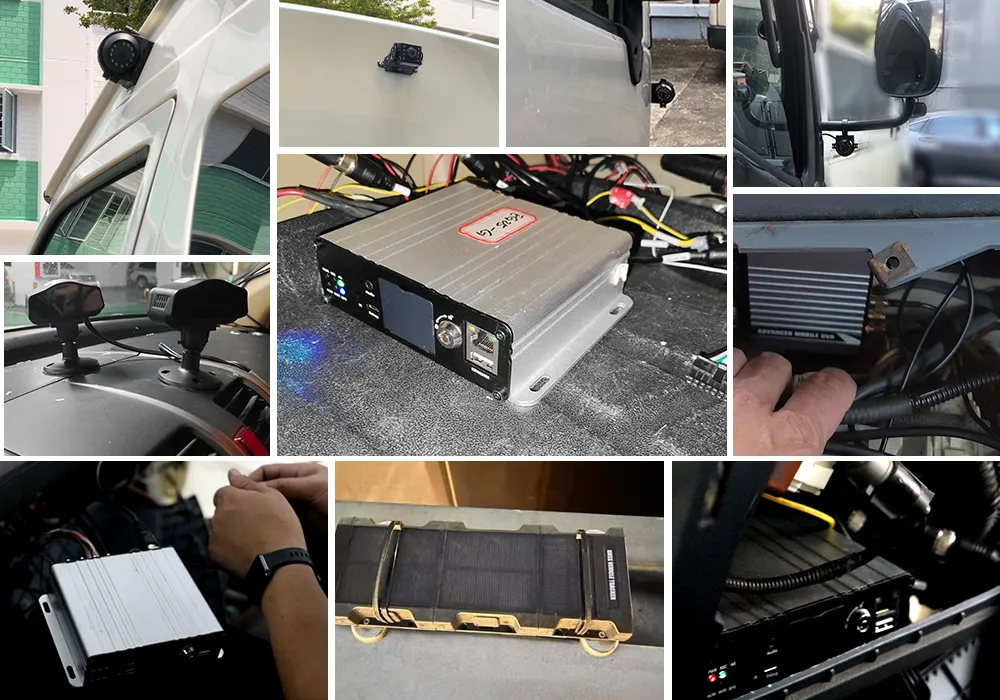

Application Scenarios

Certificates: CE, IP67, FCC, RoHS, PAHs.

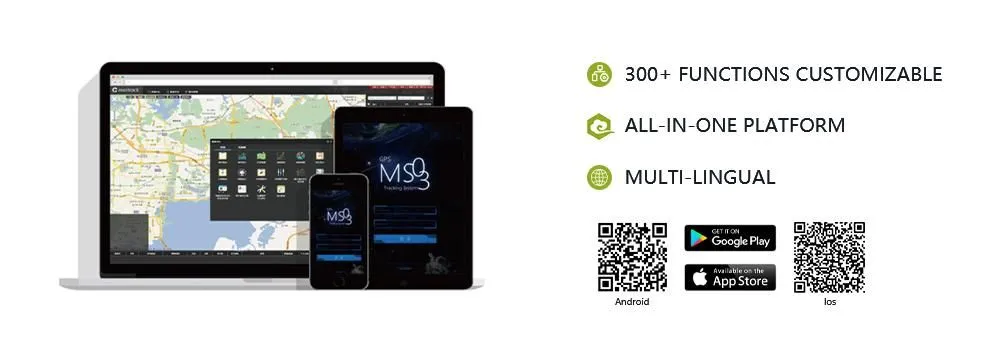

The software platform consists of an extendable database, providing a user-friendly interface to meet various functional tracking requirements.

Software Platform
⚙

Manufacturing & Quality Control

Standardized Production Management: GPS signal generators MP9000 & MP9100 Agilent, GSM/GPRS integrated testers, Reflow soldering, SMT machines, AOI testers.

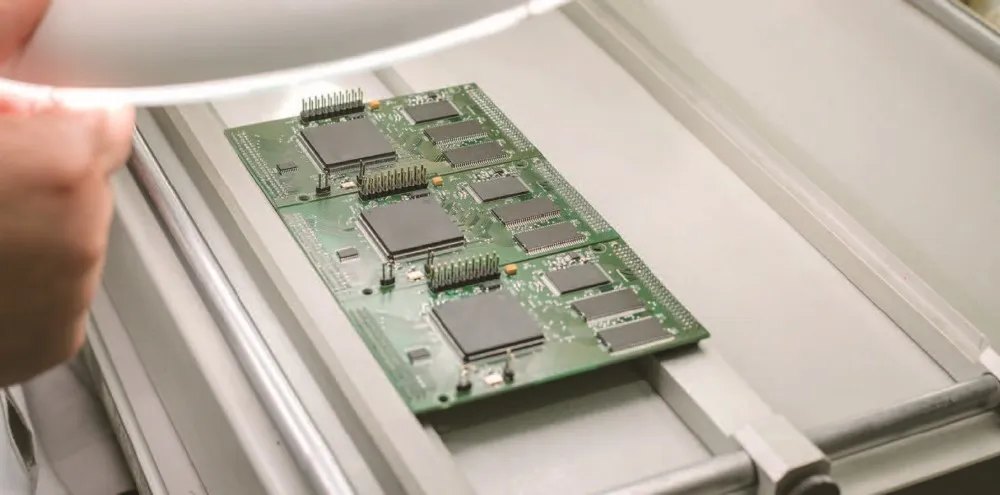

Production Facility

Strict Quality Control:

  • IATF16949:2016 Quality Management System
  • ISO9001:2015 Quality Management System

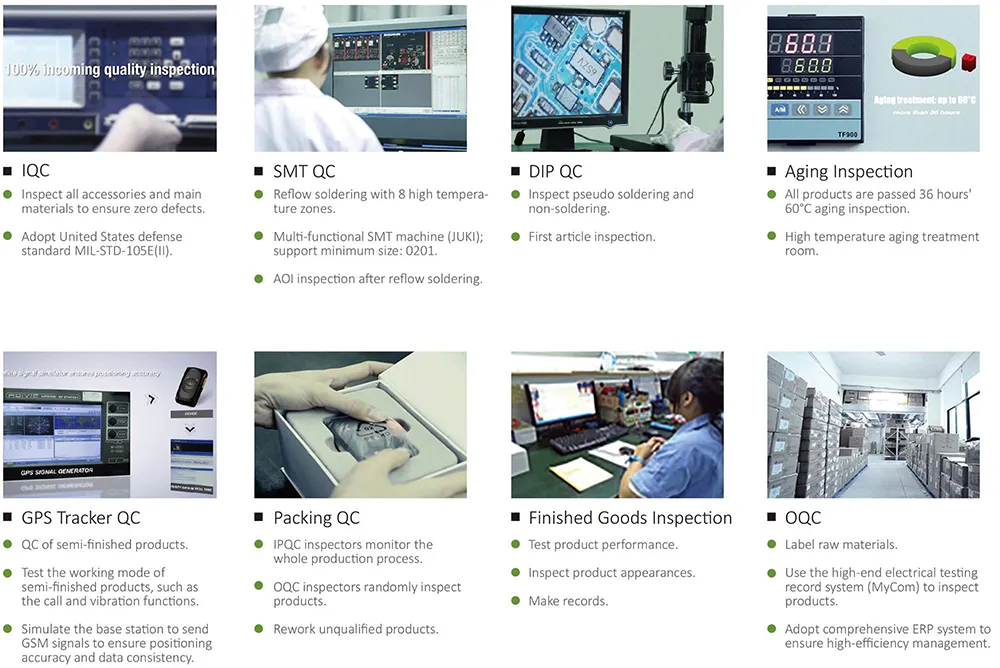

Quality Control Process
Certificates Display
?

Why Choose US?

Key Benefits
  1. Strong R&D capabilities and rich supply chain resources.
  2. Diverse standard products to meet various IoT requirements.
  3. Customized designs tailored to unique customer needs.
Service Capabilities
Q

Frequently Asked Questions

1. How does the solar charging feature work on the TA255? The device features an integrated solar panel that can provide up to 70mA of charging current to the tracker itself and up to 100mA when used with an external battery box, significantly extending standby time.
2. Is the tracker suitable for harsh outdoor environments? Yes, the device is rated IP67 water-resistant, making it fully protected against dust and capable of withstanding temporary immersion in water, ideal for marine containers and outdoor assets.
3. What types of alerts can the device generate? The tracker supports various alerts including drop/installation alerts, geo-fence boundaries, low power warnings, speeding, impact detection, and harsh cornering or braking.
4. Does it support multi-mode positioning? Yes, it supports a combination of GPS, BD, and Glonass positioning, supplemented by LBS and WiFi assisted positioning for higher accuracy (approx. 2.5 meters).
5. Can the firmware be updated remotely? Yes, the device supports FOTA (Firmware Over-The-Air) updates, allowing for remote maintenance and feature enhancements without physical access.
6. What communication networks does the TA255 series support? It supports 4G LTE (Cat M1/NB2) and is backward compatible with GSM/EGPRS networks, ensuring global connectivity across different frequency bands.
