| Model NO. | Trailer | Type | Semi-Trailer |
| Load Capacity | 50t-150t | Certification | CE, CCC |
| Wheel Base | 1550mm | Tread | 1820mm |
| Suspension | Hydro-Pneumatic | Shape | Flatbed |
| Tire Number | 8PCS/Axis | Material | Steel |
| Width | 2990mm | Platform Height | 1070mm |

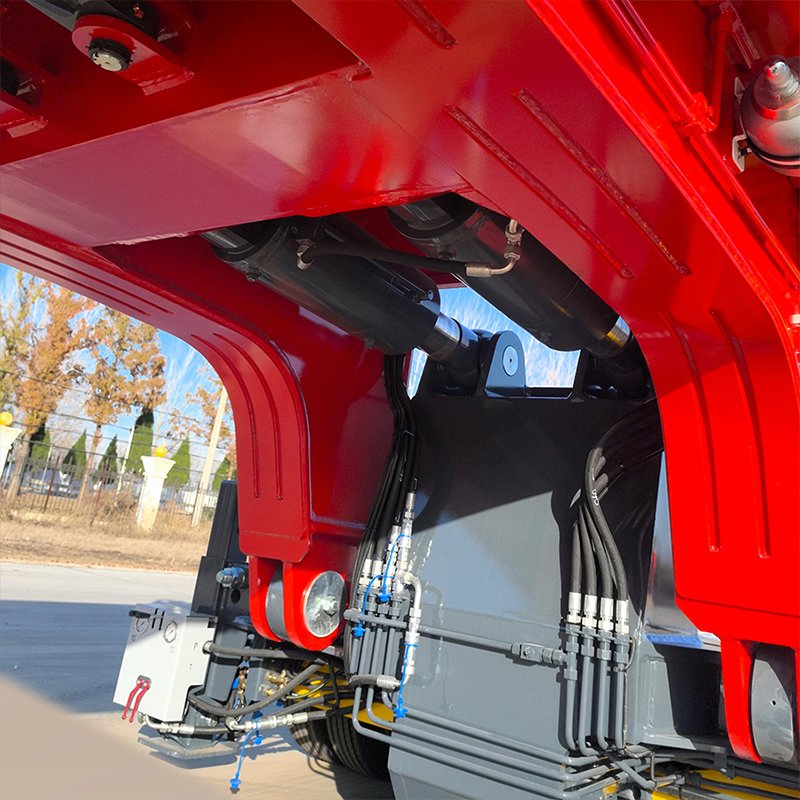

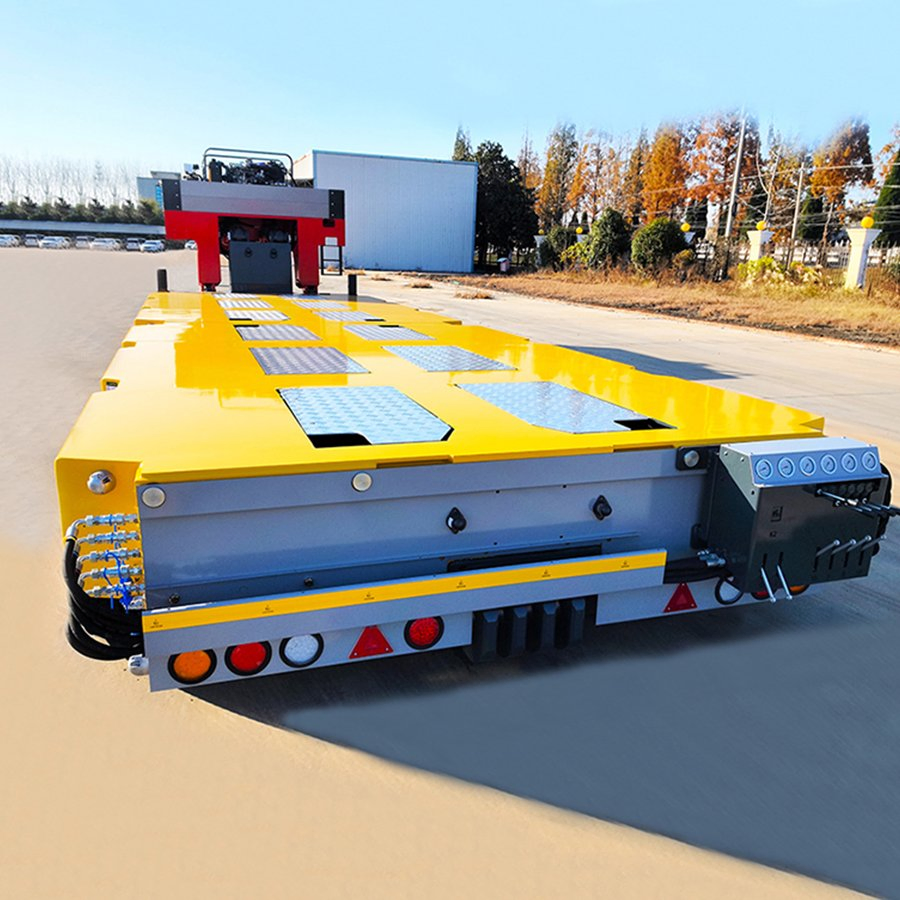

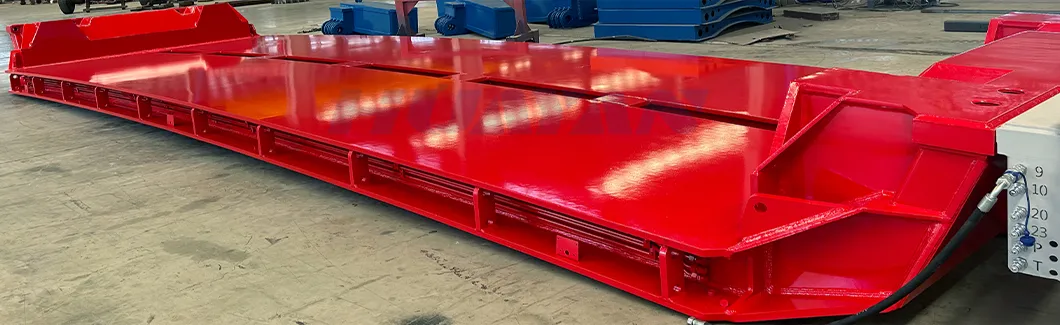

This hydraulic trailer combines cutting-edge German and French technologies with proprietary innovations to deliver a high-strength, user-friendly heavy-duty transport solution. Its core frame is precision-welded from Q550D extra-thick steel plates in a reinforced box-shaped structure, processed through gantry milling for seamless joints and millimeter-level accuracy, ensuring exceptional load-bearing capacity and deformation resistance.
| Main Performance Parameters | ||
|---|---|---|
| 1 | Wheel Base | 1550mm |
| 2 | Wheel Track | 735/1820mm |
| 3 | Tyre Quantity | 8 pcs/each axis |
| 4 | Cargo Bed Width | 2990mm |
| 5 | Platform Height | 1070mm |
| 6 | Suspension Travel | ±300mm |
| 7 | Frame Material | Q550D |
| 8 | Max Turning Angle | 55° |

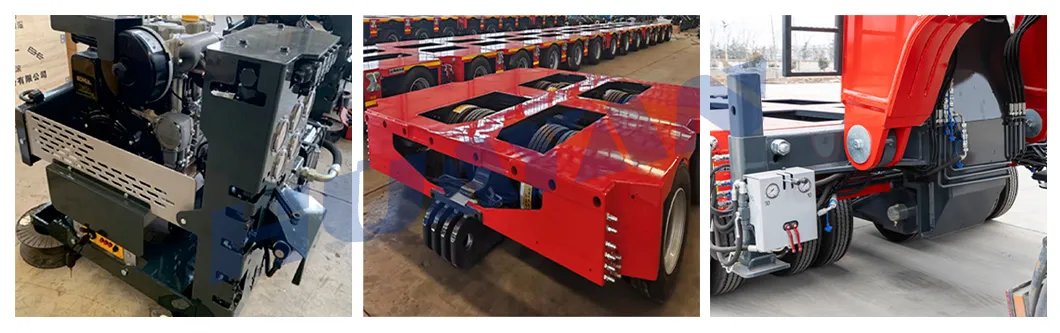

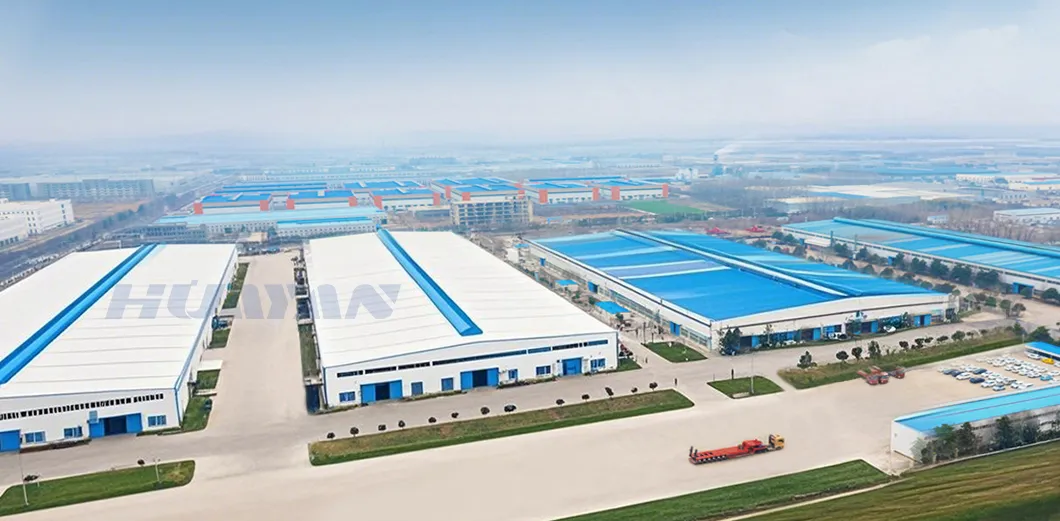

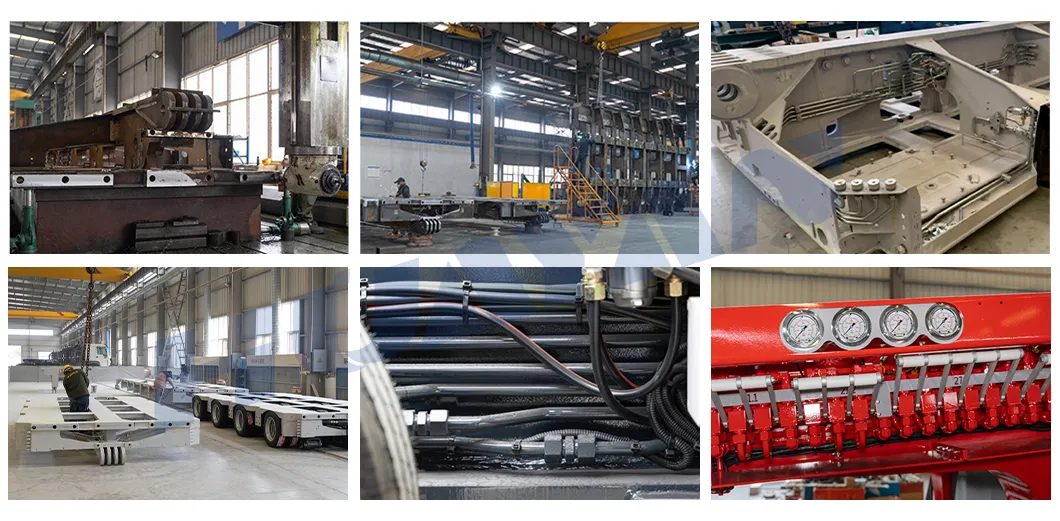

Advanced manufacturing using automatic gantry centers ensures precision. CNC pipe bending systems achieve leak-proof performance and full interchangeability of components.

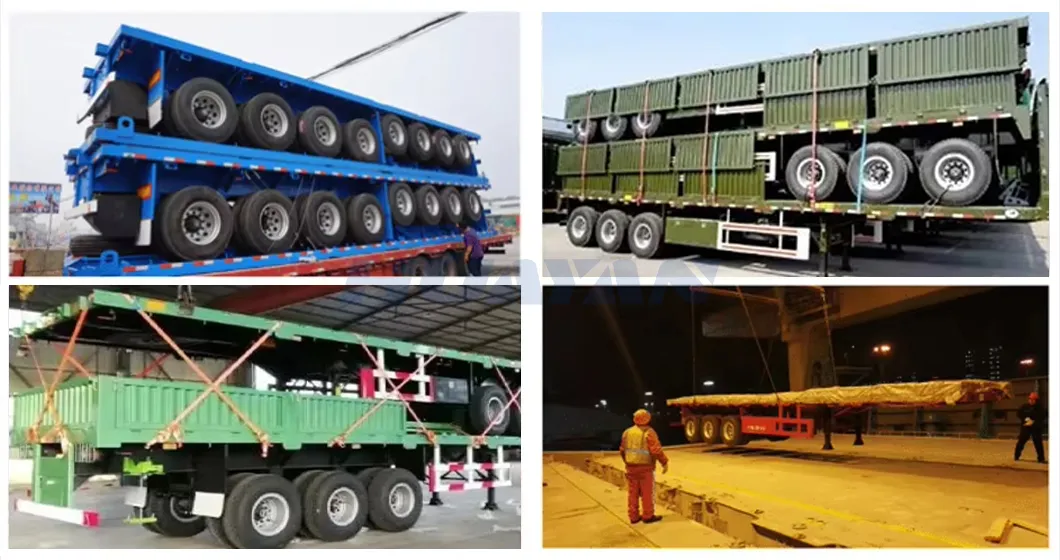

We provide comprehensive delivery schedules for projects, utilizing strong logistics capabilities for both domestic and international shipping.
