Basic Specifications
Model NO.MA-S-7M-LN2-65K
Color TemperatureCool White
IP RatingIP67 / IP68
Light Intensity> 5,000 Lumens
Light SourceLED
Power Range80W-350W
Input Voltage12V/18V/24V/32V/110V/220V/240V
Total Lumen33,560 Lm
Peak Intensity6.25 Mcd
Beam Angle2° FWHM
Illuminance105lux @ 9m
1 Lux RangeApprox. 2500m
MaterialStainless Steel + Aluminum
Impact RatingIK10

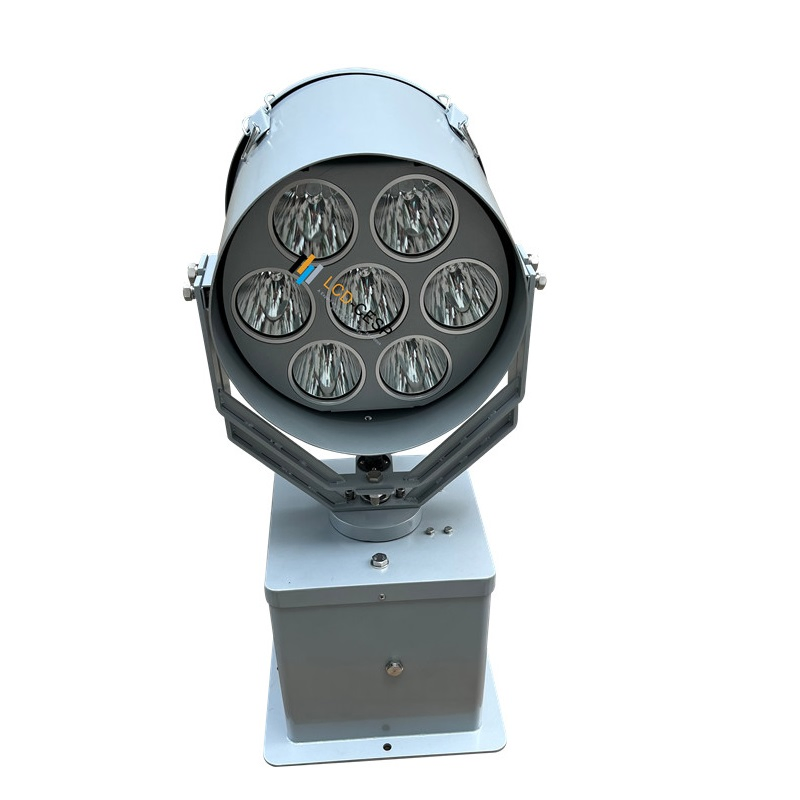

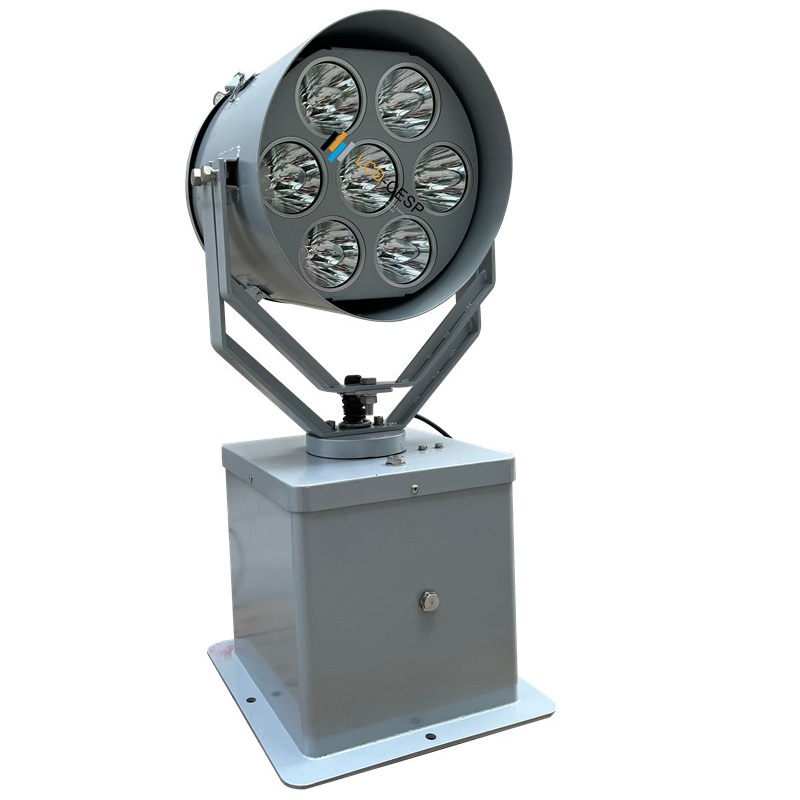

High-Performance Marine Searchlights
Advanced LED searchlights (80W-350W) serve as a superior replacement for traditional 1000W-5000W Halogen and Xenon lamps. These units deliver powerful illumination for demanding marine environments, offering competitive efficiency and versatile beam options.
- Wide Beam Models: Ideal for close-range tasks such as man overboard rescue operations.
- Narrow 2° Beam Models: Engineered for long-distance visibility in professional marine applications.
- Arctic Optimized: High-output spectrum designed specifically for harsh and cold environments.
Compared to traditional halogen systems, these LED solutions offer significant advantages:
- Longer lifespan with virtually zero maintenance requirements.
- Substantially lower energy consumption and operational costs.
- Compact design ensuring straightforward installation on various vessels.
Commonly deployed on patrol boats, SAR (Search and Rescue) vessels, workboats, windfarm support vessels, and superyachts. A thermal imager integrated version is also available for enhanced situational awareness.
Technical Features & Optics
Utilizing precision metal diffusers, these searchlights produce a focused 2-degree laser-style parallel beam capable of reaching ranges up to 5000 meters. This makes them an essential tool for navigation, security surveillance, and detecting obstacles like icebergs at night.
- Low power consumption compared to 1000W-8000W Xenon/HID searchlights.
- Corrosion-resistant marine-grade 1070 Aluminum and stainless steel hardware.
- UV-resistant toughened tempered glass lens.
- Vibration resistance tested for 5-6G standards.
| Feature |
Specifications |
| Typical Models | 4M-LN2 / 5M-LN2 / 7M-LN2 / 9M-LN2 / 12M-LN2 |
| Lumen Output | 16,080 LM (Standard configuration) |
| Candlepower | 3,673,851 cd |
| Operating Temp | -30°C to +50°C |
| Control Range | Pan 0°~ 350° , Tilt -30°~ +30° (MC & EC Types) |
| Warranty | 5 Years for marine applications |
*Note: Illumination distances are theoretical and may decrease during heavy fog, smoke, or harsh weather conditions.
Frequently Asked Questions
1. What is the maximum range of these LED searchlights?
The narrow 2-degree beam models can provide effective illumination at ranges up to 5000 meters depending on the specific module configuration.
2. Are these lights resistant to saltwater corrosion?
Yes, they are constructed using marine-grade 1070 Aluminum and stainless steel with an IP67/IP68 rating, specifically designed for harsh saltwater environments.
3. Can I replace my existing 2000W Xenon searchlight with an LED version?
Absolutely. Our 80W-350W LED units are engineered to outperform 1000W-5000W Xenon and Halogen lamps while using significantly less power.
4. Do these searchlights require regular maintenance?
No, these LED searchlights are virtually maintenance-free due to their long-life solid-state technology and durable housing materials.
5. What mounting and control options are available?

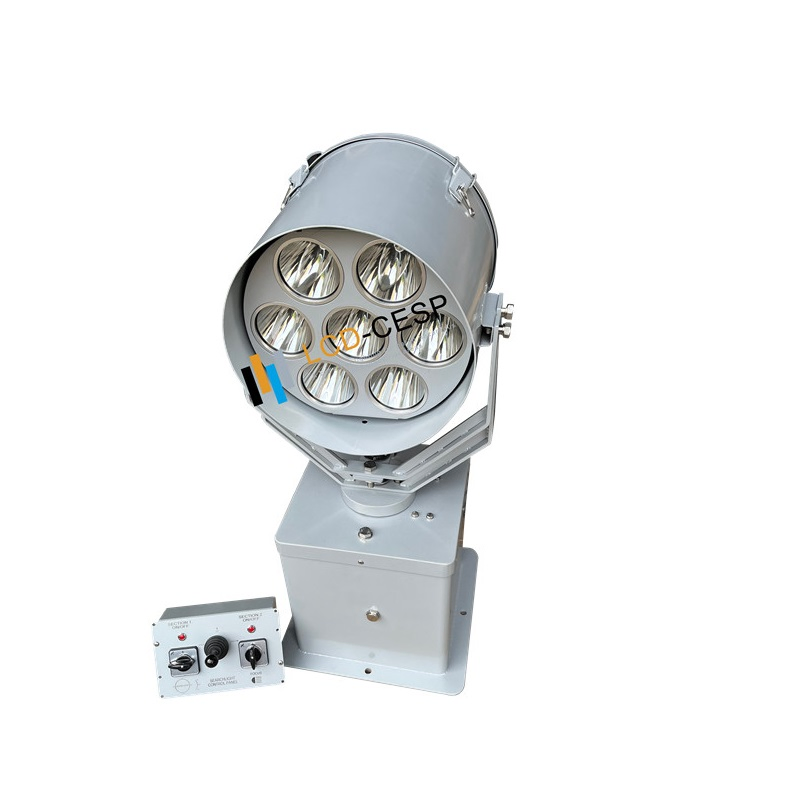

We offer multiple mounting styles including Manual (MD), Manual Cabin (MC), and Electronic Remote Control (EC) types to suit different vessel requirements.
6. How do they perform in extreme temperatures?
The units are tested for reliable operation in temperatures ranging from -30°C to +50°C, making them suitable for both Arctic and tropical climates.
