Ex Mark: Ex d IIB T6 Gb, Ex tD A21 IP66
Application: Zone 1, 2 & 21, 22 Hazardous Locations

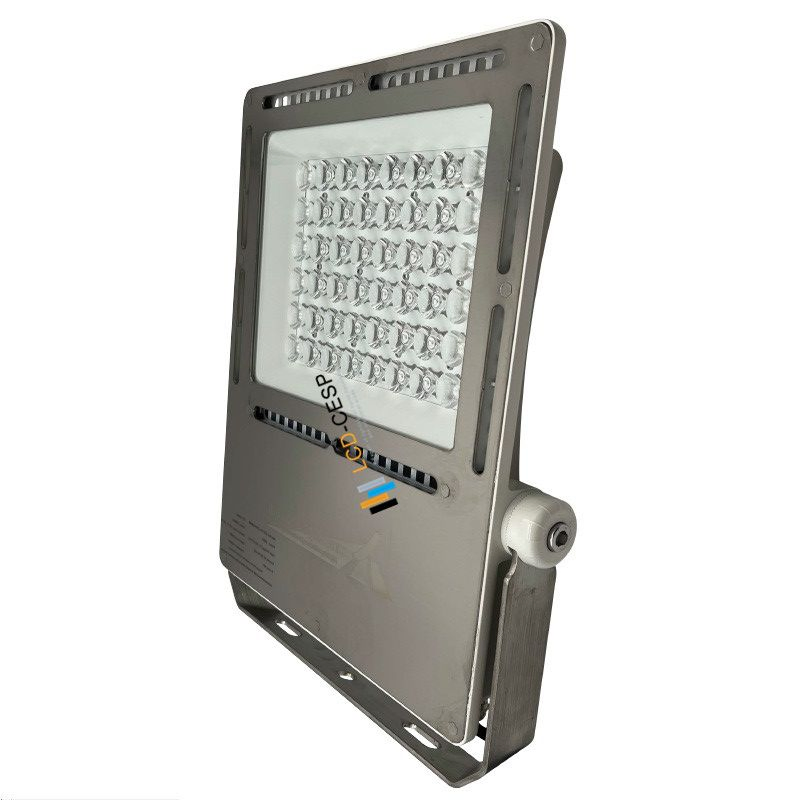

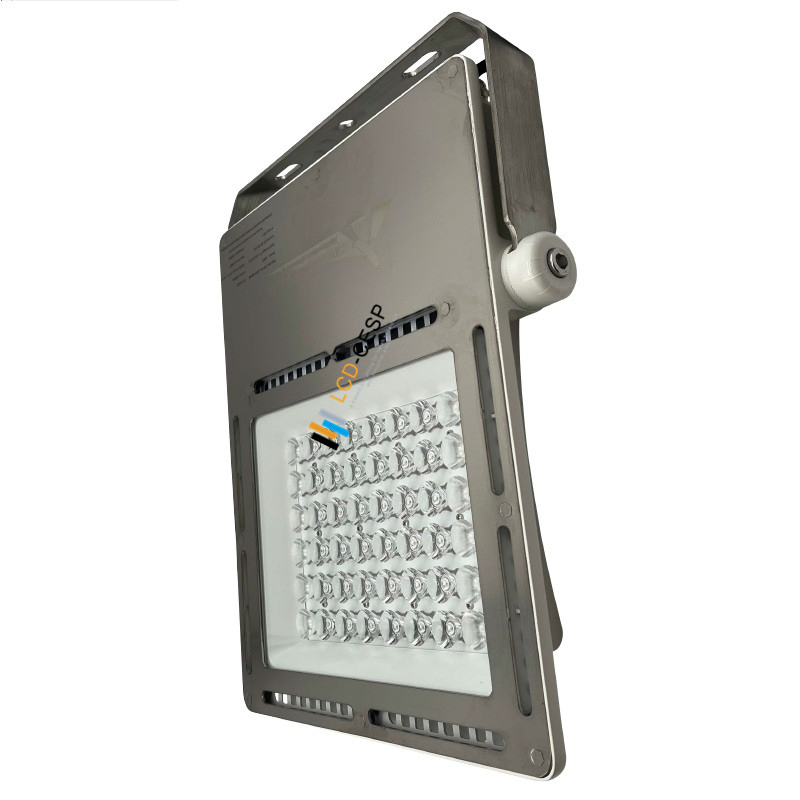

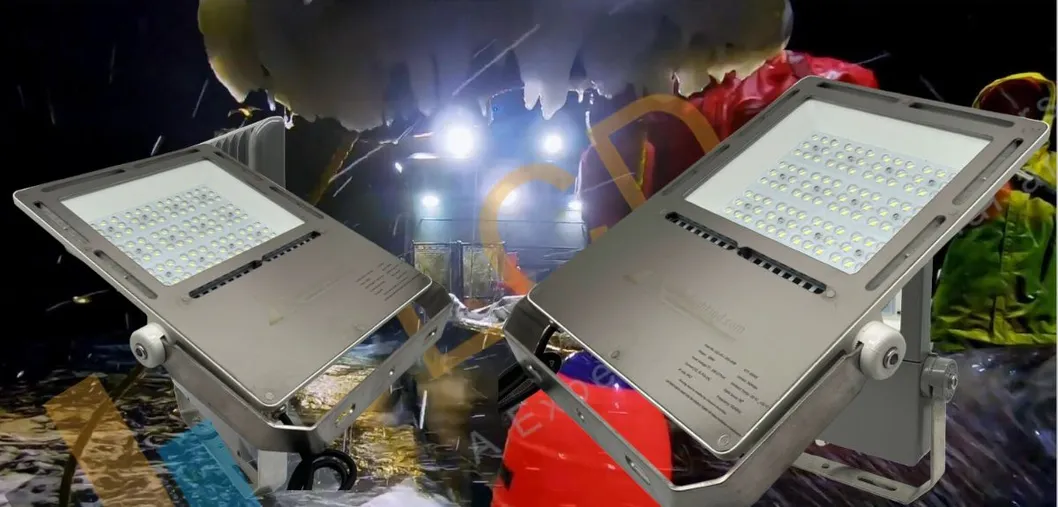

This Explosion proof led light fixtures series is suited for nearly every kind of lighting task in hazardous areas, including applications in on- and offshore, heavy industrial, chemical, petrochemical, oil and gas, pharmaceuticals, shipyards, dockyards, power generation, paper mills and wastewater treatment. It is designed for potentially explosive areas under harsh conditions like vibrations, dust, moisture or corrosive atmospheres and extreme temperatures.
With high efficient power LED technology, these fixtures achieve up to 135-170 Lumen/Watt, enabling up to 80% energy-cost savings compared to conventional HID lamps. The series can replace conventional light fittings up to 800W.
| Light Source & Electrical | |
|---|---|
| Chip Brand | Cree / Bridgelux |
| Efficiency | 135 - 170 lm/W |
| CRI | >70 / 75 |
| Input Voltage | 100-277VAC / 12-32VDC |
| Power Factor | >0.98 |
| Surge Protection | 4KV (Standard) / 6KV (Optional) |
| Mechanical & Environmental | |
| Housing Material | Copper-free Aluminum Alloy (ADC12) |
| Lens Material | Tempered Glass (15mm) |
| Ingress Protection | IP66 |
| Impact Resistance | IK09 / IK10 |
| Ambient Temperature | -40°C to +55°C |
| Vibration Rating | 3G vibration tested (ANSI C136.31) |
| Rated Wattage | 100W | 120W | 150W | 185W | 200W |
| Luminous FLUX | 14000lm | 16800lm | 21000lm | 25900lm | 28000lm |
| Ex-mark (Gas) | II 2G Ex db op is IIC T4...5…T6 Gb | ||||
| Ex-mark (Dust) | II 2D Ex tb op is IIIC T103°C ... T98°C ... T93°C Db | ||||
