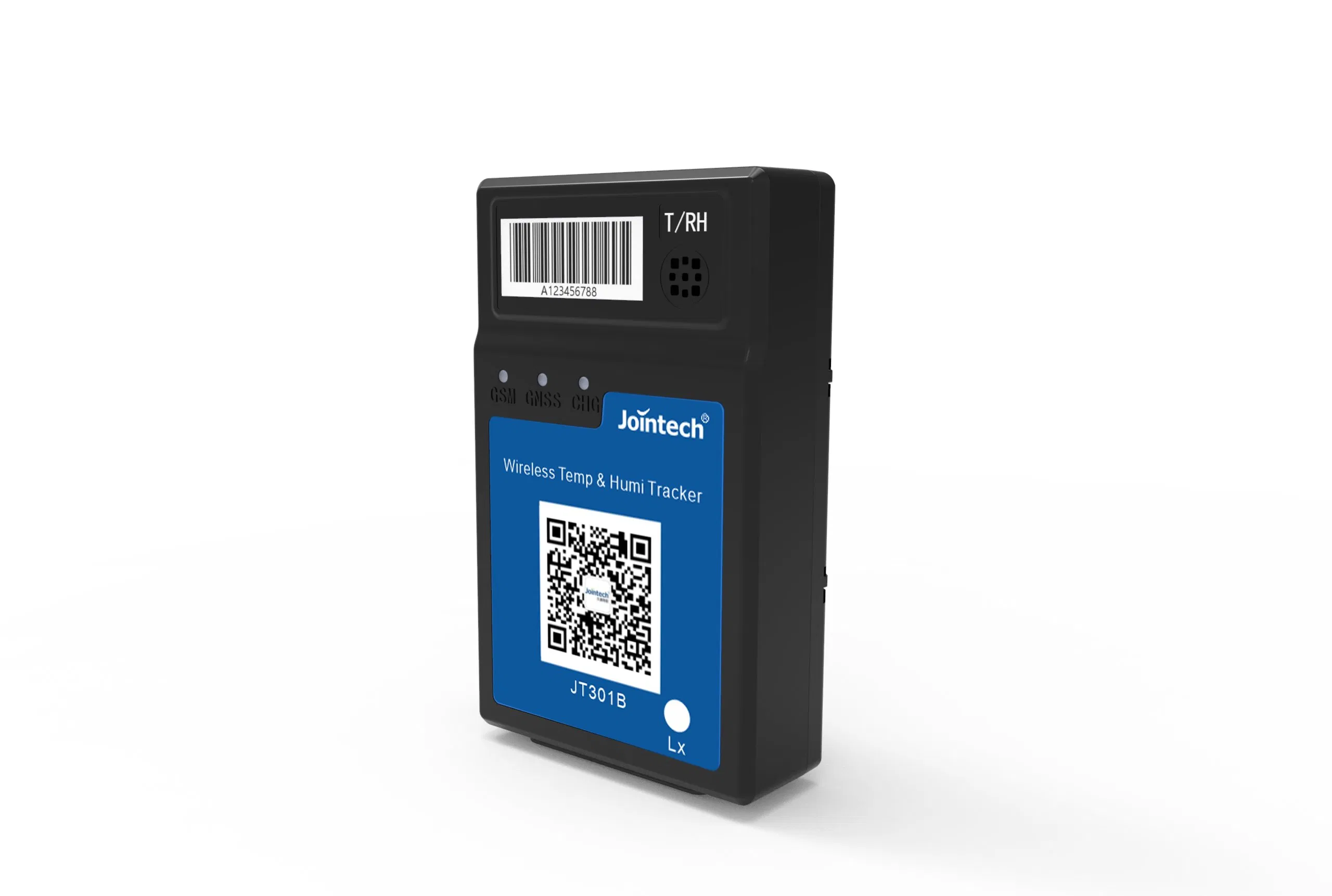

Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker
Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker
Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker
Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker
Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker
1 / 5
Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker
Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker
Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker
Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker
Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker

Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
JT301B
Warranty
1 Year
Product Name
Marine Containers Assets Management Cargo Security
Battery
Rechargeable Lithium Battery 3.7V / 4200mAh
Protection Class
IP53
Operating Temp.
-20℃ to 60℃
Working Current
<80mA
Origin
China
★

Product Overview

Marine Containers Assets Management Cargo Security Monitoring Portable GPS Tracker

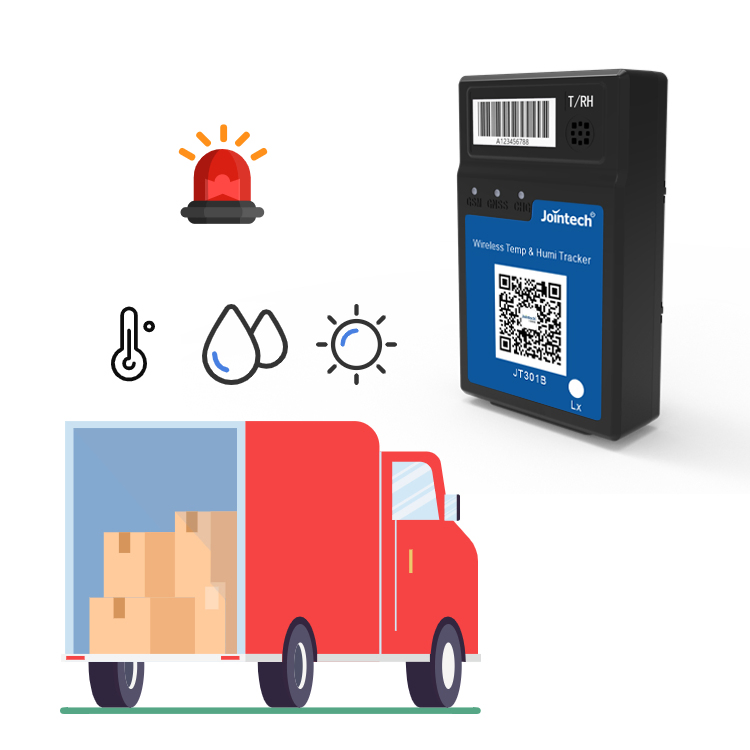

The JT301B is a smart container real-time monitoring GPS tracker designed specifically for logistics scenarios. It serves three critical purposes: cargo tracking, environmental inspection, and door status detection. Equipped with a GPS lock, it provides robust tracking and monitoring capabilities. The device integrates customized sensors supporting 4G, GPS, Bluetooth, G-Sensor, barometric pressure, temperature, and humidity, offering a comprehensive solution for asset security during transportation.

Parameters Detailed Description
Dimension (L x W x H)97mm * 60mm * 23mm
WeightAbout 120g
Shell MaterialABS+PC Engineering Plastic
InstallationCable ties, magnetic suction, Velcro
Temp. Range-40ºC to +85ºC (Optional)
Humidity Range0 %RH to 100%RH (Optional)
Luminous Flux1-65535LX (Optional)
CommunicationLTE-FDD B1/B3/B7/B8/B20; TDD-LTE: B38/B40; GSM 900/1800 MHz
PositioningLBS / GPS / BD
Standby Current<100uA
Charging InterfaceMicro USB (Full charge in about 5 hours)
📷

Product Showcase

Tracker Overview
Feature Banner

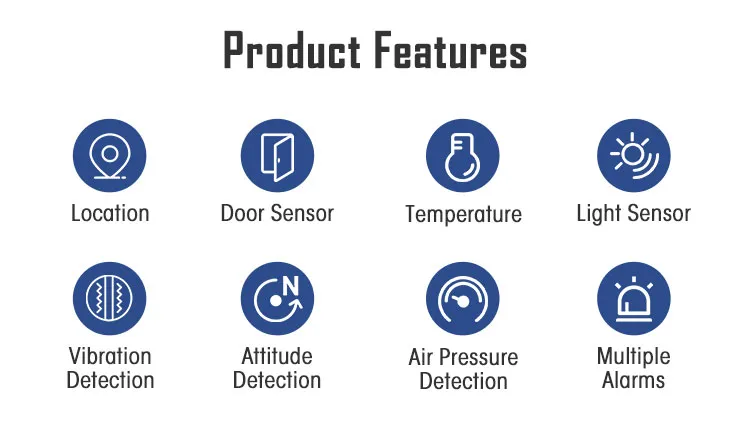

Detail 1
Detail 2

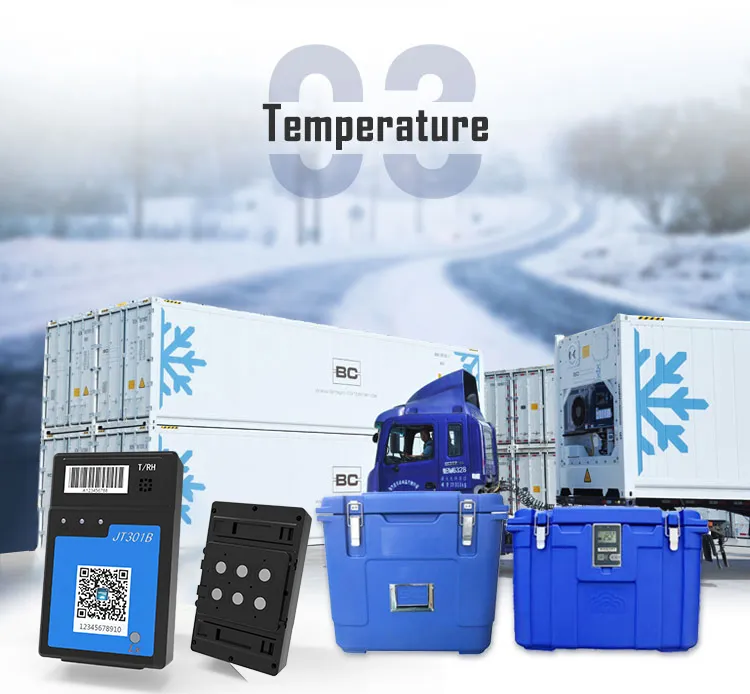

Detail 3

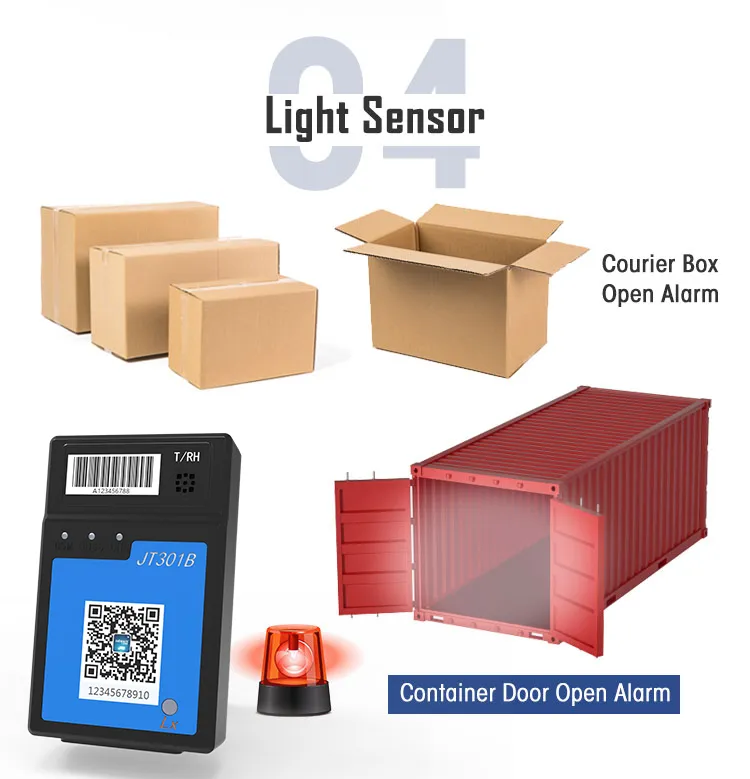

Detail 4

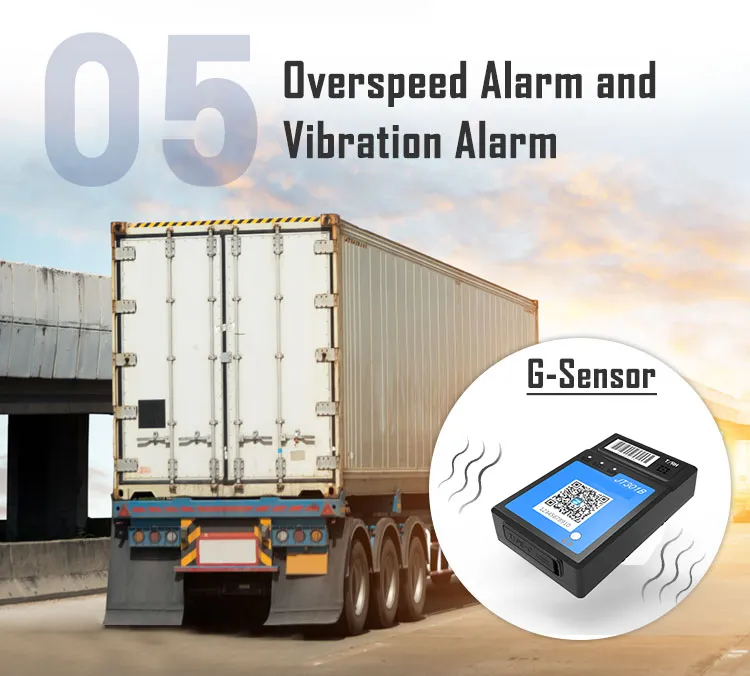

Detail 5

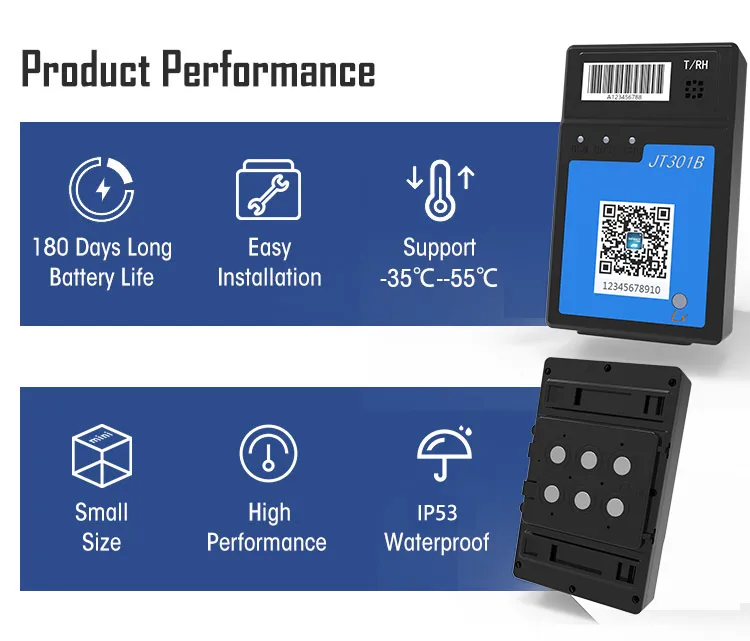

Detail 6
Status Monitoring
Sensor Banner

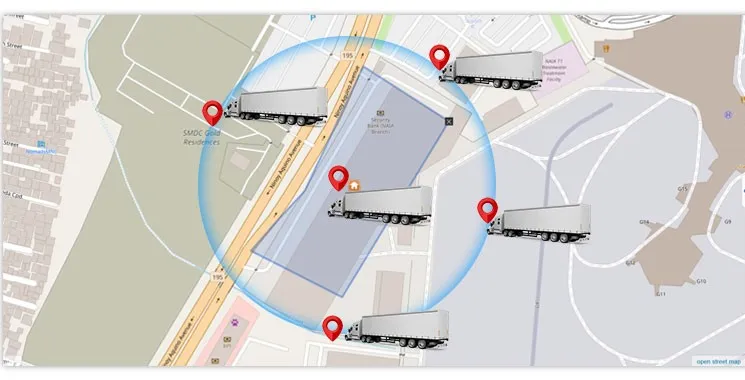

Application

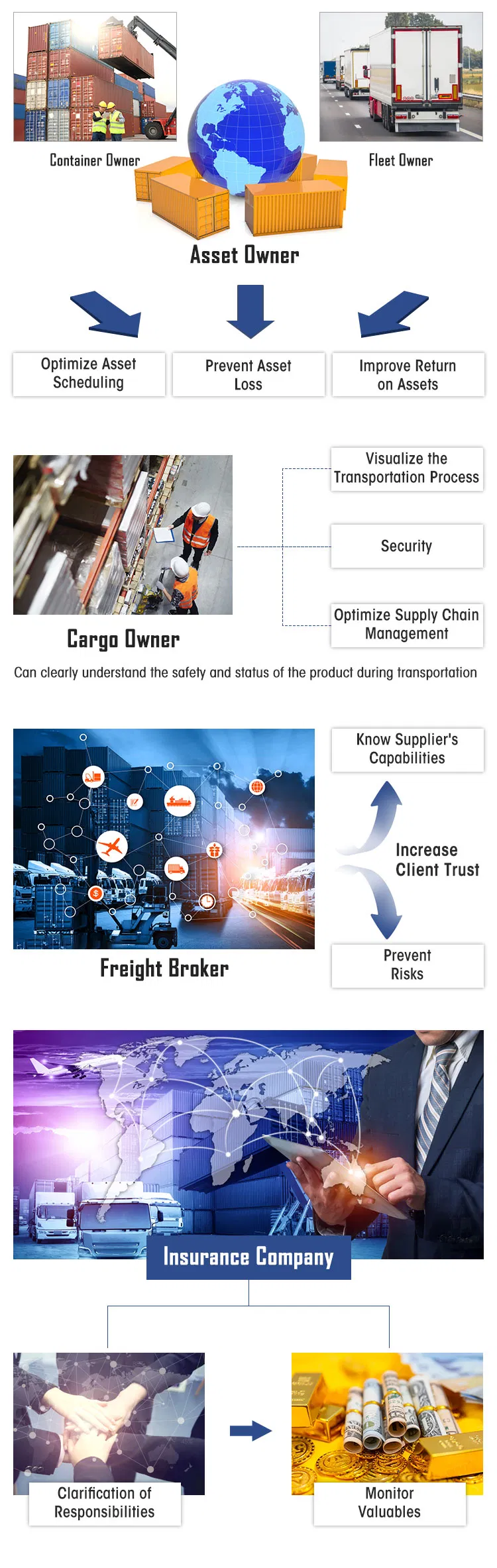

Connectivity
Installation Guide
Technical Specs
Monitoring Interface
Use Case
Summary
Final Overview
?

Frequently Asked Questions

What are the primary functions of the JT301B tracker?
The JT301B is designed for logistics scenarios to track cargo location, monitor the internal environment (temperature/humidity/pressure), and detect the status of container doors.
How long does the battery last and is it rechargeable?
The device features a 3.7V/4200mAh rechargeable lithium battery. It can be fully charged via a Micro USB interface in approximately 5 hours.
What environment sensors are integrated into this device?
It includes customized sensors for G-Sensor (vibration/impact), barometric pressure, temperature, humidity, and luminous flux detection.
What network bands does the JT301B support?
It supports global 4G bands including LTE-FDD (B1/B3/B7/B8/B20), TDD-LTE (B38/B40), and 2G GSM/GPRS/EDGE (900/1800 MHz).
Is the device waterproof and how is it installed?
The device has an IP53 protection class. It can be easily installed using magnetic suction, cable ties, or Velcro, making it highly portable and versatile.
Does it support wireless communication for local configuration?
Yes, it supports Bluetooth 4.2 or above, with an effective communication distance of over 10 meters in open areas for local data interaction.
