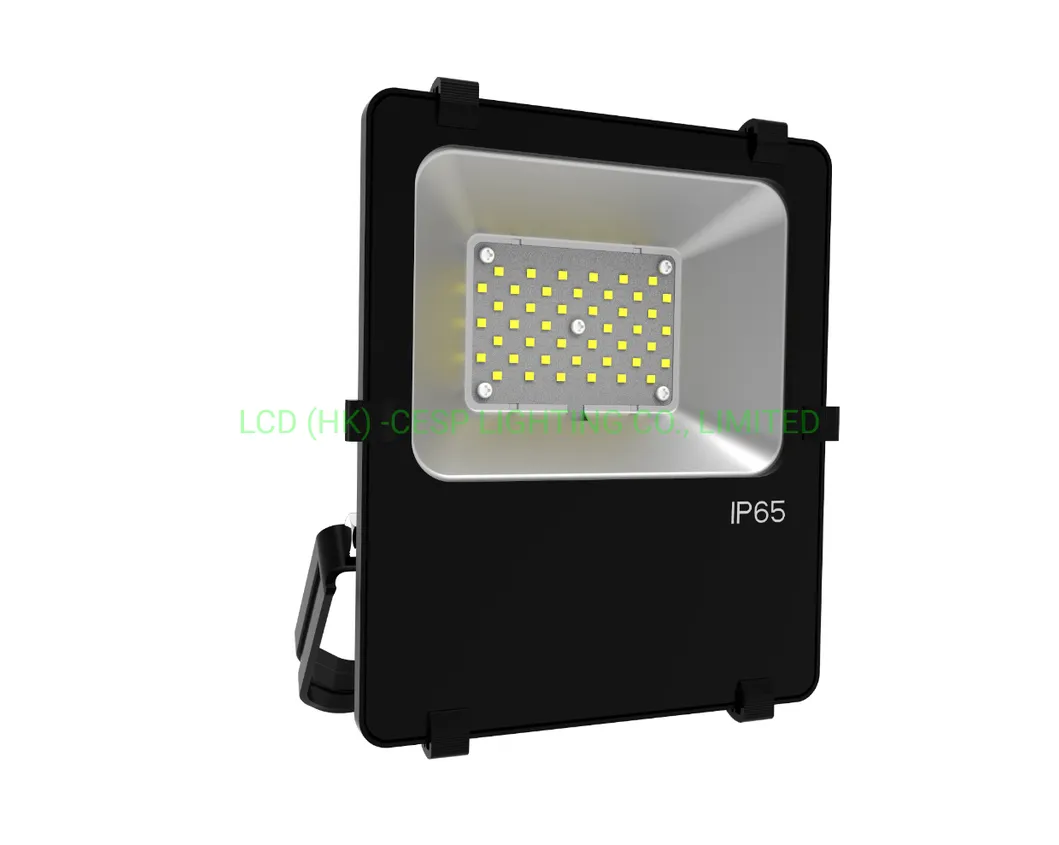

The specialized LED light series is ideally used in challenging environments such as building lighting, roadway and car parking construction, loading areas, etc. Our diverse portfolio offers the opportunity to find the right product for these special circumstances, ensuring high quality and sustainability.
| Category | Details |
|---|---|
| CERTIFICATIONS | CE, RoHS, SAA, C-tick, TUV, ETL |
| HOUSING | Aluminum alloy ADC12 / Copper-free Pure Aluminum |
| LENS | 4mm thick front tempered glass, +95% light transmission, Shock and vibration resistant |
| PERFORMANCE | 10,400 to 20,800 lumens; Up to 130-155 lm/w; L70 > 60,000 hours |
| IP/IK RATING | IP65/IP66/IP68; IK08/IK10 Impact rating |
| OPERATING TEMP | -30°C to +55°C (-30°F up to 131°F) |
| DIMMING | 1-10V dimming standard, PWM or DALI on requests |

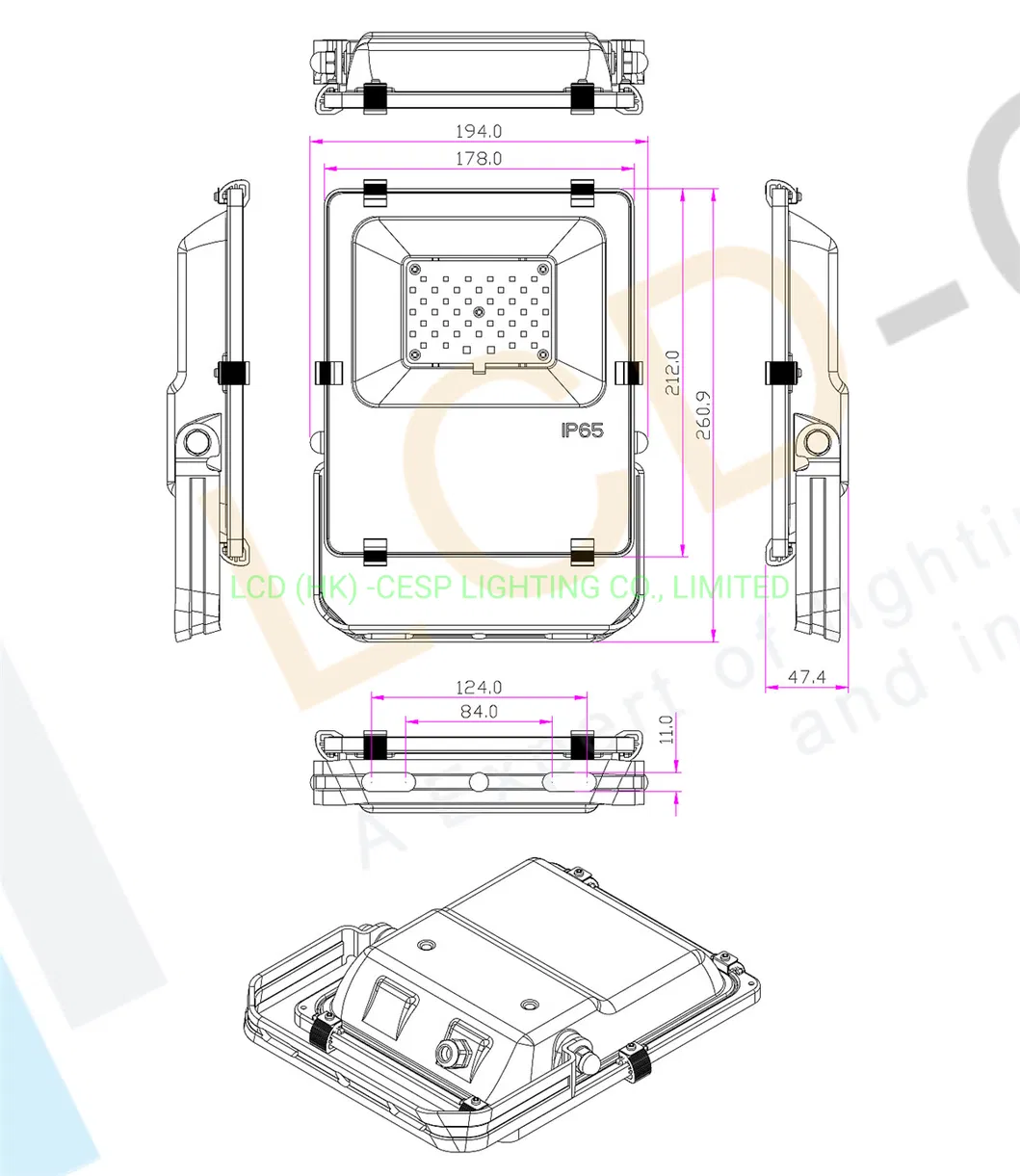

| Model No | Power | Luminous Efficiency | LED Source | Dimensions |
|---|---|---|---|---|
| LCD-FE-50 | 50W | 130-155lm/w | Cree SMD 3030/5050 | 362x290x240mm |
| LCD-FE-100 | 100W | 130-155lm/w | Cree SMD 3030/5050 | 362x290x240mm |
| LCD-FE-150 | 150W | 130-155lm/w | Cree SMD 3030/5050 | 362x290x240mm |
| LCD-FE-200 | 200W | 130-155lm/w | Cree SMD 3030/5050 | 362x290x240mm |
Advanced Heat Dissipation: Extruded Aluminum housing features thermal conductivity of about 230w/(m.k), which is 2.5 times higher than popular aluminum alloys. This ensures the fastest heat spreading from the LED engine, guaranteeing a long lifespan.

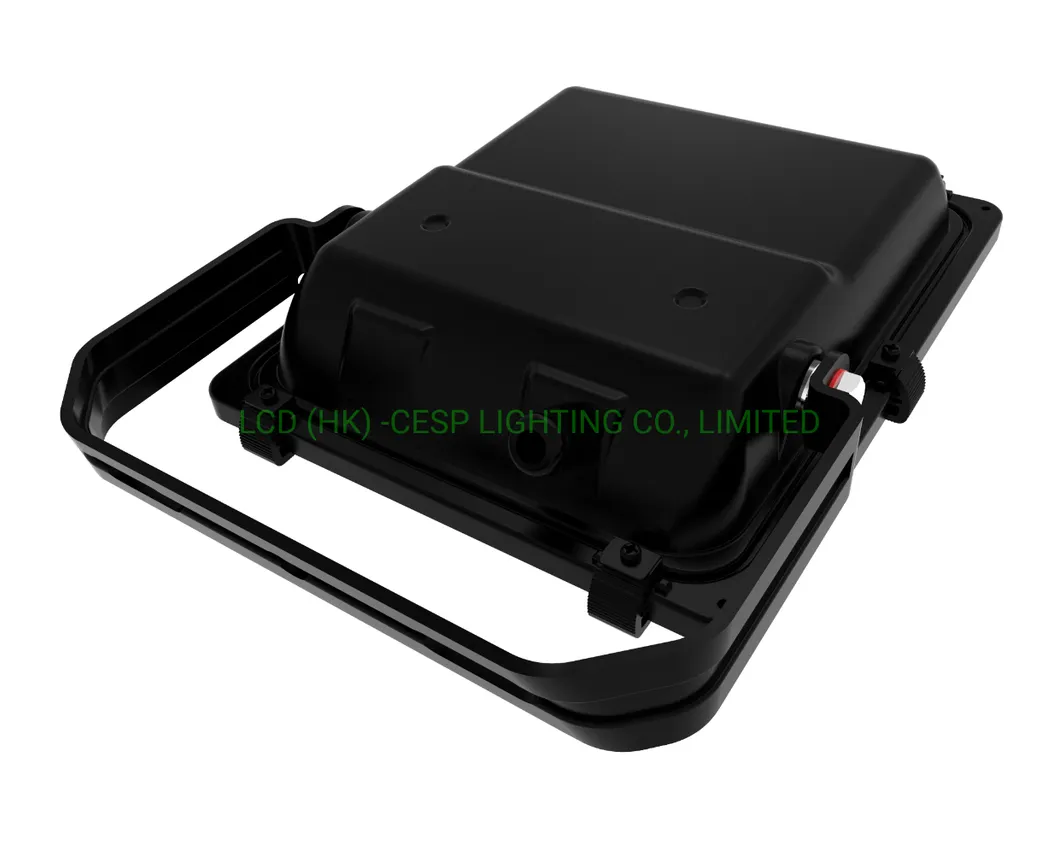

Corrosion Resistance: Double-layer polyester powder paint resistant to salt spray fog and corrosion. Includes stainless steel #316 bracket options for marine and wet location applications.
