Product Description

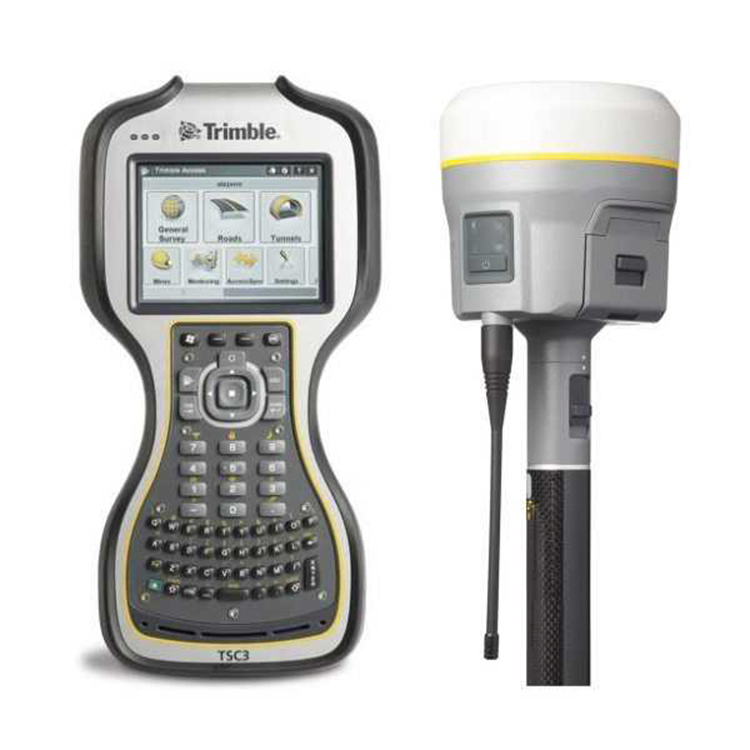

Trimble R10 GNSS Receiver
📋

Basic Specifications

Model NO.R10
Carrier FrequencyDual-Frequency
Port Number672 Channel
ChipSiRF
Warranty3 Years
Brand NameTrimble
Product NameR10 Gnss Receiver
ContellationGPS, Glonass, Beidou, Galileo
Static Accuracy2.5mm +0.5ppm, 5mm+0.5ppm
Rtk Accuracy8mm+1ppm, 15mm + 1ppm
Internal Memory4GB
Special FeaturesLED Screen, Tilt Sensor, Ebuble, Two Battery
📦

Packaging & Delivery

Package Size55.00cm * 45.00cm * 35.00cm
Gross Weight5.000kg
OriginChina
🕵

Product Description

Product Details Header
Model R10
Measurement Technologies
Trimble HD-GNSS technology for harsh environments
Trimble SurePoint electronic tilt compensation
Trimble CenterPoint RTX satellite delivered corrections
Trimble xFill technology for radio signal loss
Advanced Maxwell 6 Custom Survey GNSS chips (672 channels)
Positioning Accuracy
Code Differential Horizontal0.25 m + 1 ppm RMS
Code Differential Vertical0.50 m + 1 ppm RMS
Static Horizontal3 mm + 0.1 ppm RMS
Static Vertical3.5 mm + 0.4 ppm RMS
RTK Horizontal8 mm + 1 ppm RMS
RTK Vertical15 mm + 1 ppm RMS
Physical & Environmental
Dimensions (W * H)11.9 cm x 13.6 cm
Operating Temperature-40ºC to +65ºC
Ingress ProtectionIP67 dustproof/waterproof
Communications
Radio Modem410 MHz to 470 MHz; Transmit 2 W
Cellular3.5 G modem, HSDPA 7.2 Mbps
Data Storage4 GB internal memory
📷

Product Showcase

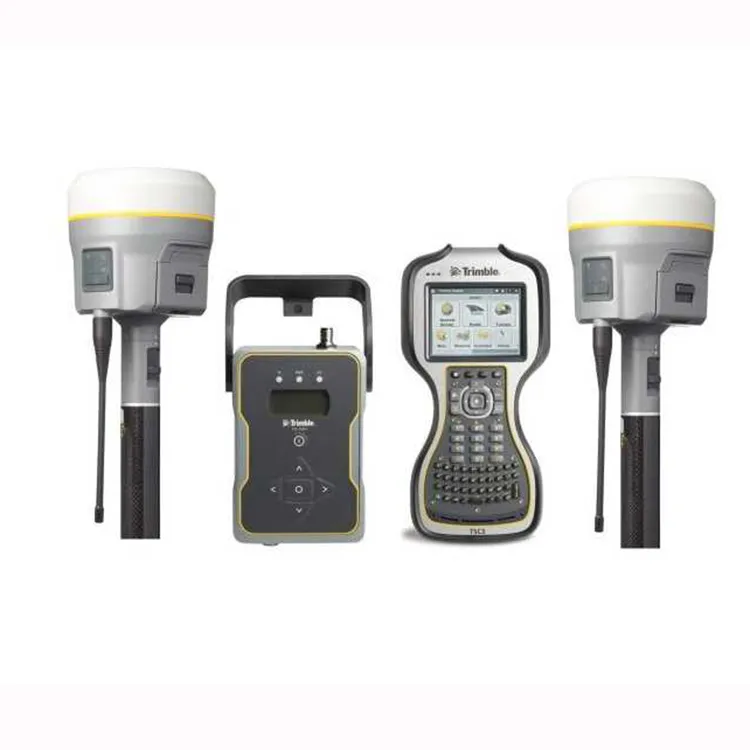

Trimble R10 View 1
Trimble R10 View 2
Trimble R10 View 3
Trimble R10 View 4
Trimble R10 View 5
Trimble R10 View 6

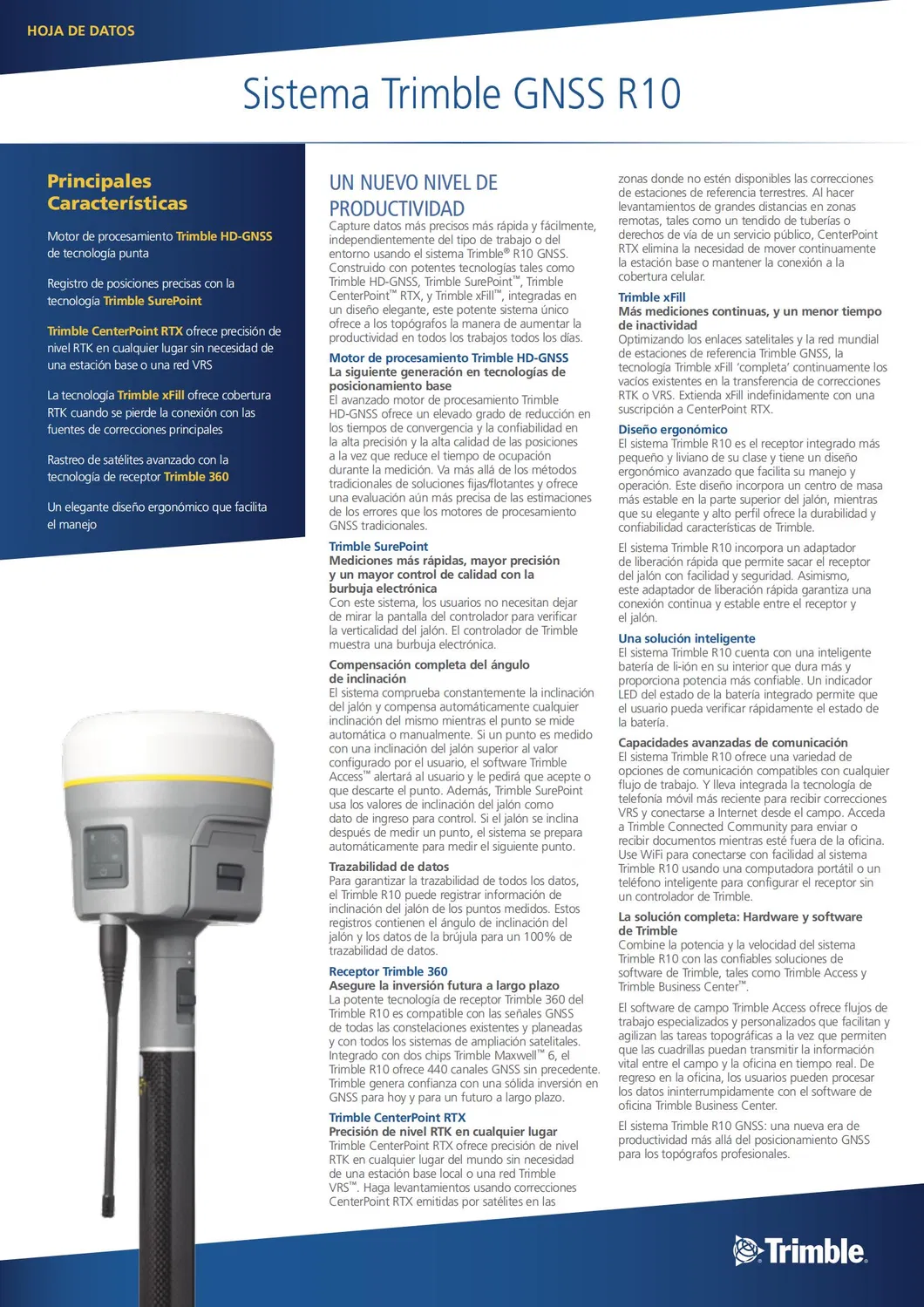

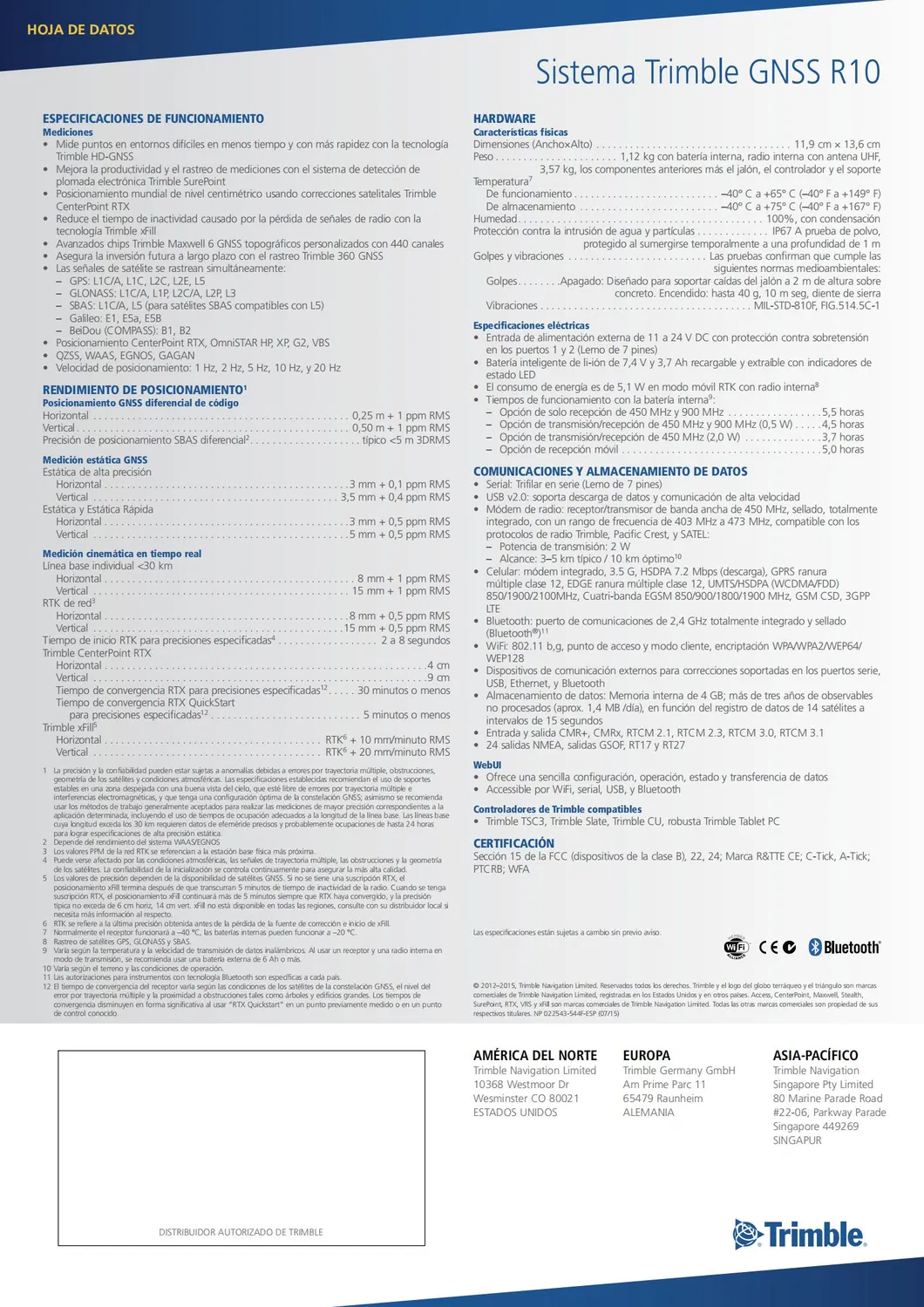

Technical Specs 1 Technical Specs 2
❓

Frequently Asked Questions

How many channels does the Trimble R10 support?
The Trimble R10 features 672 channels with advanced Maxwell 6 Custom Survey GNSS chips.
What is the RTK accuracy of this GNSS receiver?
The RTK accuracy is 8mm + 1ppm RMS for horizontal and 15mm + 1ppm RMS for vertical measurements.
Does the R10 feature tilt compensation?
Yes, it includes Trimble SurePoint technology, which provides electronic tilt compensation for increased productivity and traceability.
What is the battery life for the internal battery?
Operating times vary by mode: approximately 5.5 hours for 450 MHz receive-only and 3.7 to 5.0 hours for other transmit/cellular options.
Is the device protected against harsh environments?
Yes, the R10 is IP67 rated, making it dustproof and protected from temporary immersion to a depth of 1 meter.
Which constellations can the R10 track?
It supports GPS, Glonass, Beidou, and Galileo constellations through Trimble 360 GNSS tracking technology.
