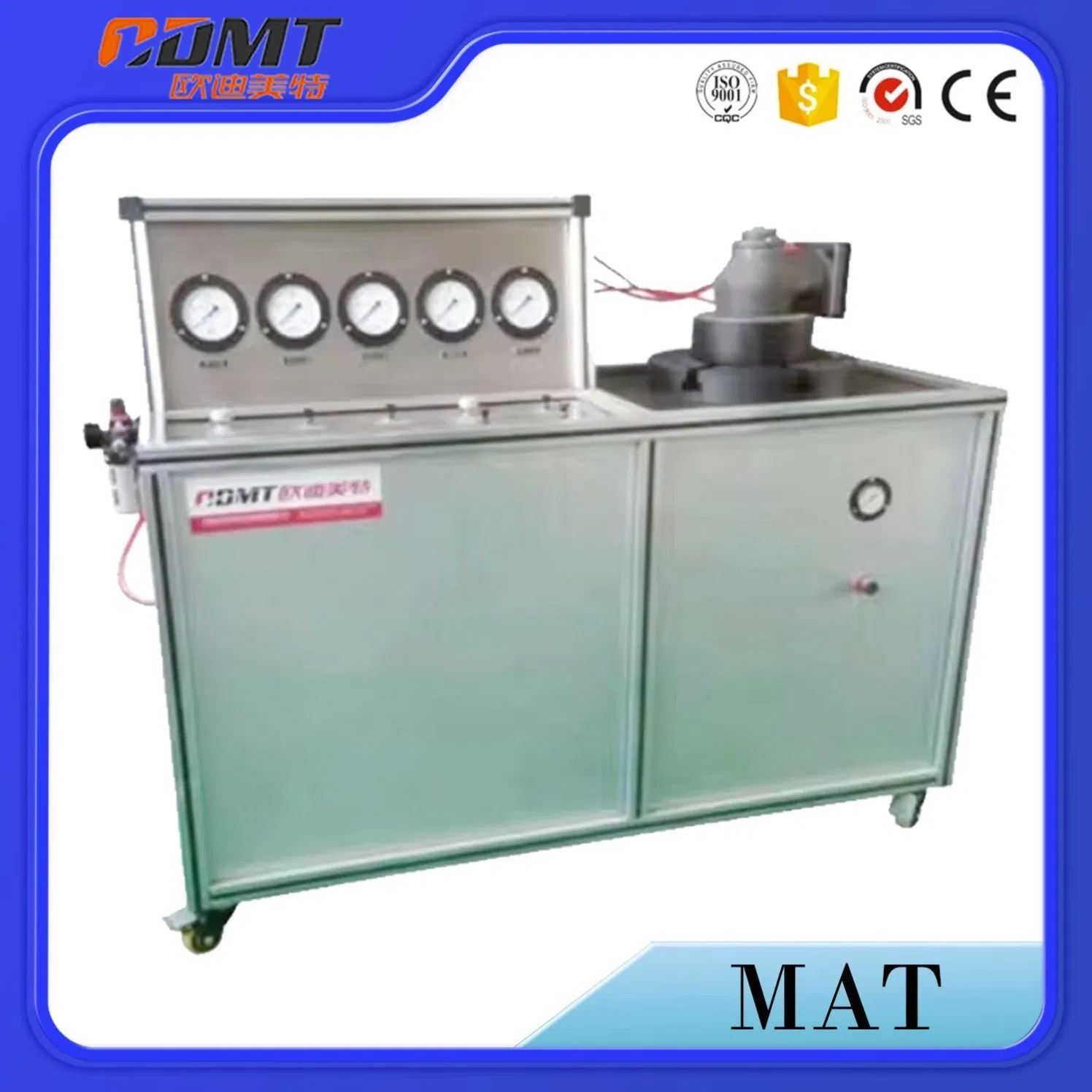

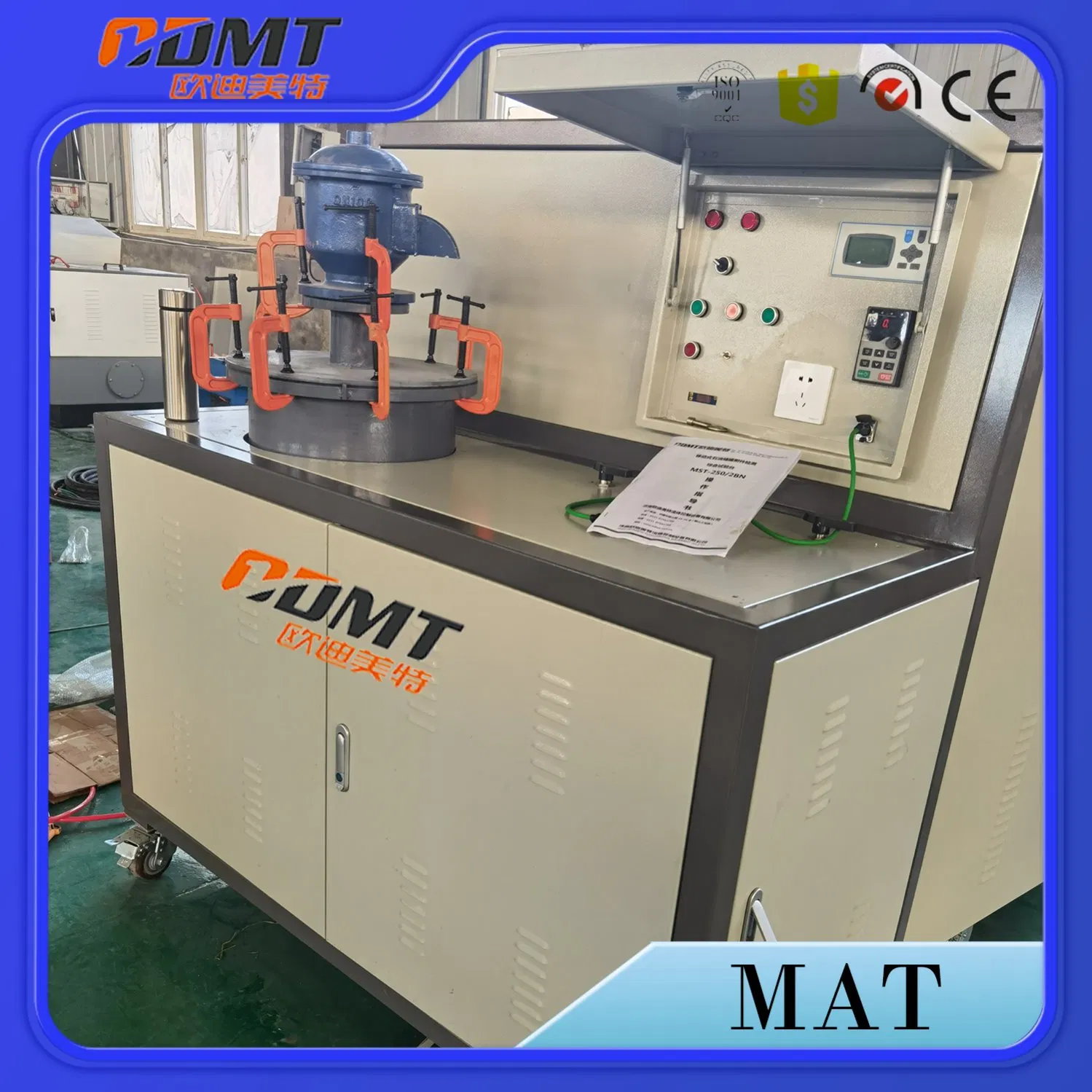

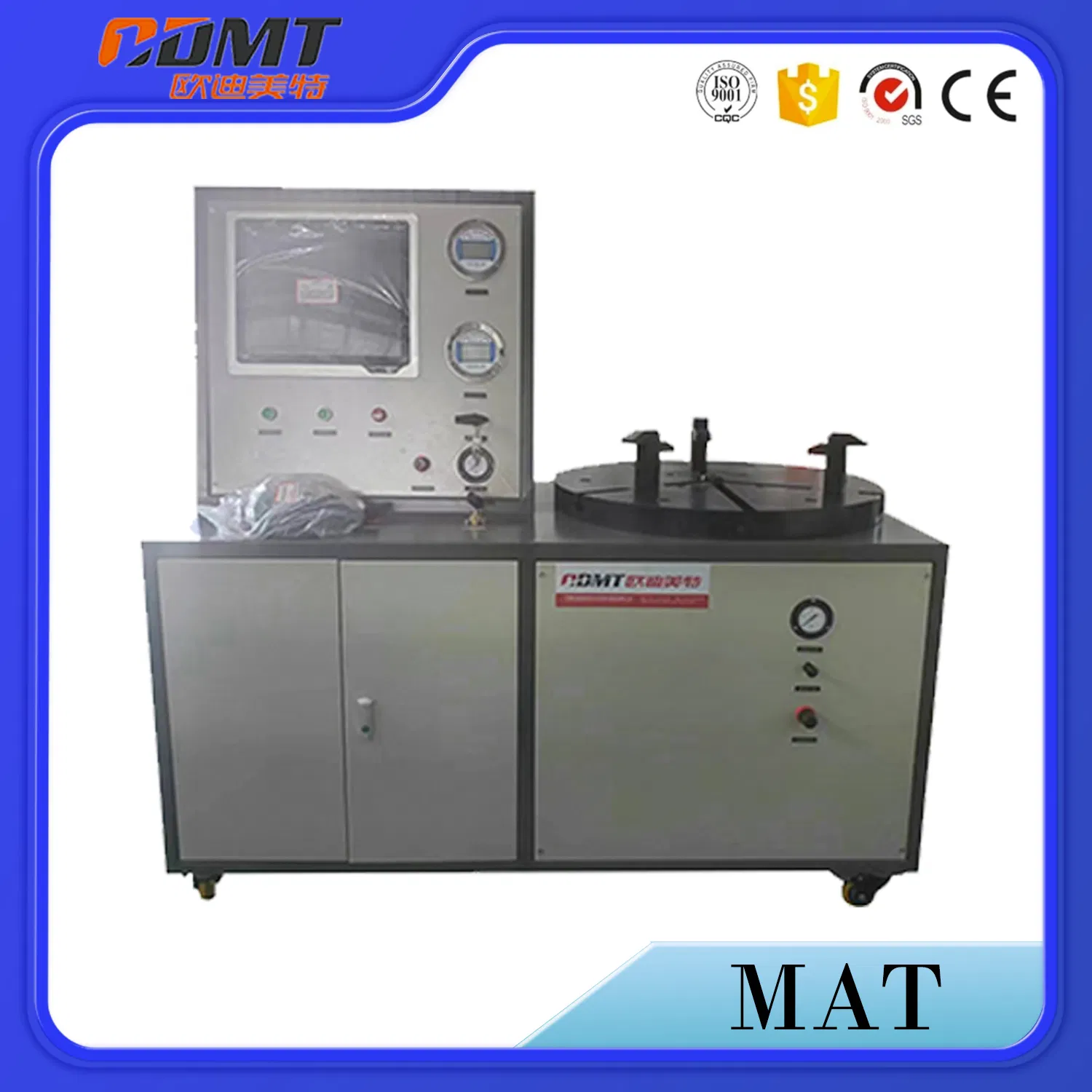

Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment
Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment
Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment
Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment
Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment
1 / 5
Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment
Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment
Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment
Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment
Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment

Odmt Petroleum Tank Breathing Valve Submarine Valve Calibration and Testing Equipment

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model MAT Series Max Workpiece Diameter 2000mm
Workpiece Mass Scope <900kg Type Impact Testing Machine
Max Capacity >1000KN Accuracy Grade 0.5
Control System Computer Control Power Source AC220V
Product Name Subsea Valve Calibration Bench Function Test Subsea Valve
Certificate ISO/CE Temperature Range Room Temperature
🔍 Product Description

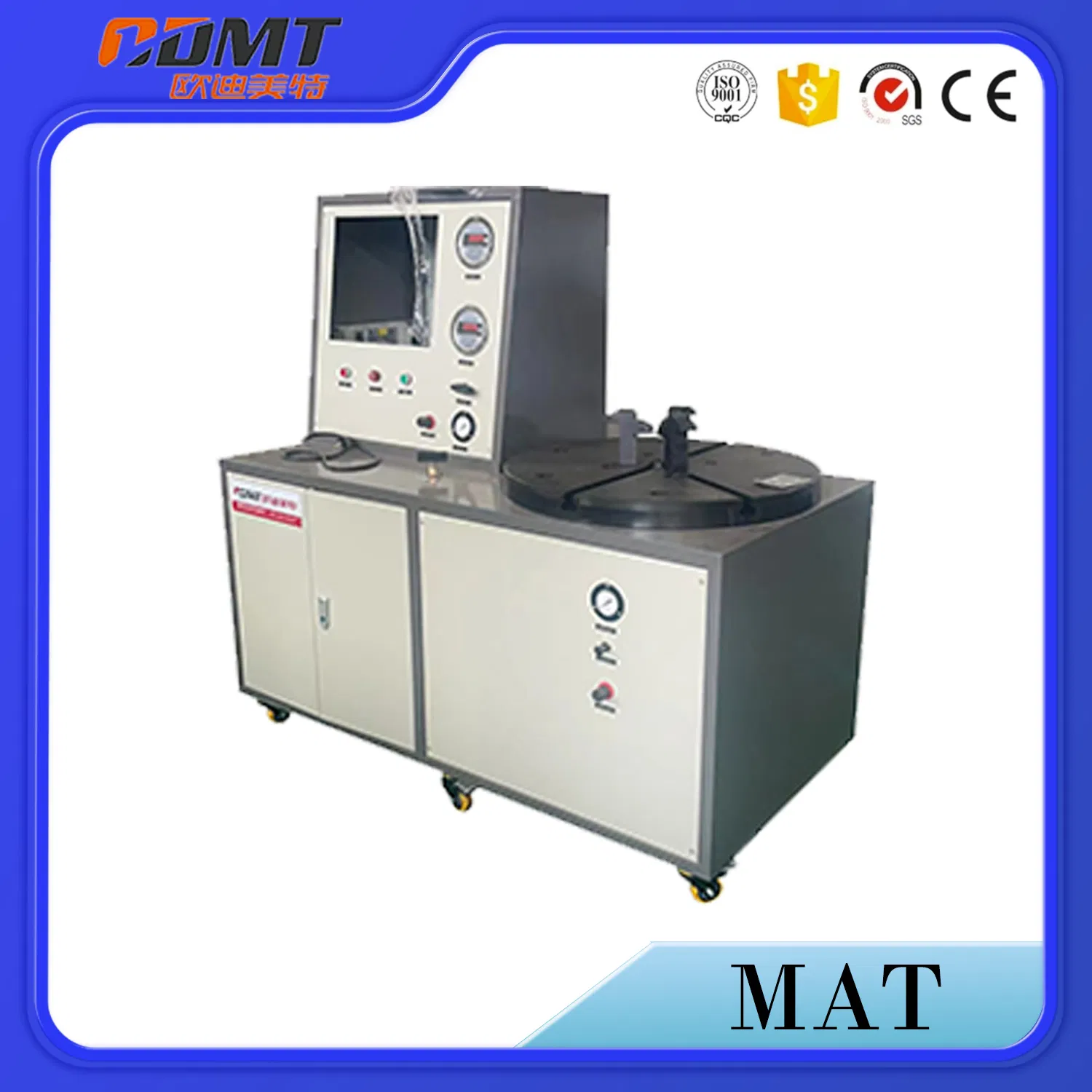

MAT Series Submarine Valve Testing Device: Designed to detect cylinder sealing, structural sealing, and reverse sealing of submarine valves. It offers simple mechanisms, convenient operation, and easy maintenance for professional high-efficiency testing.

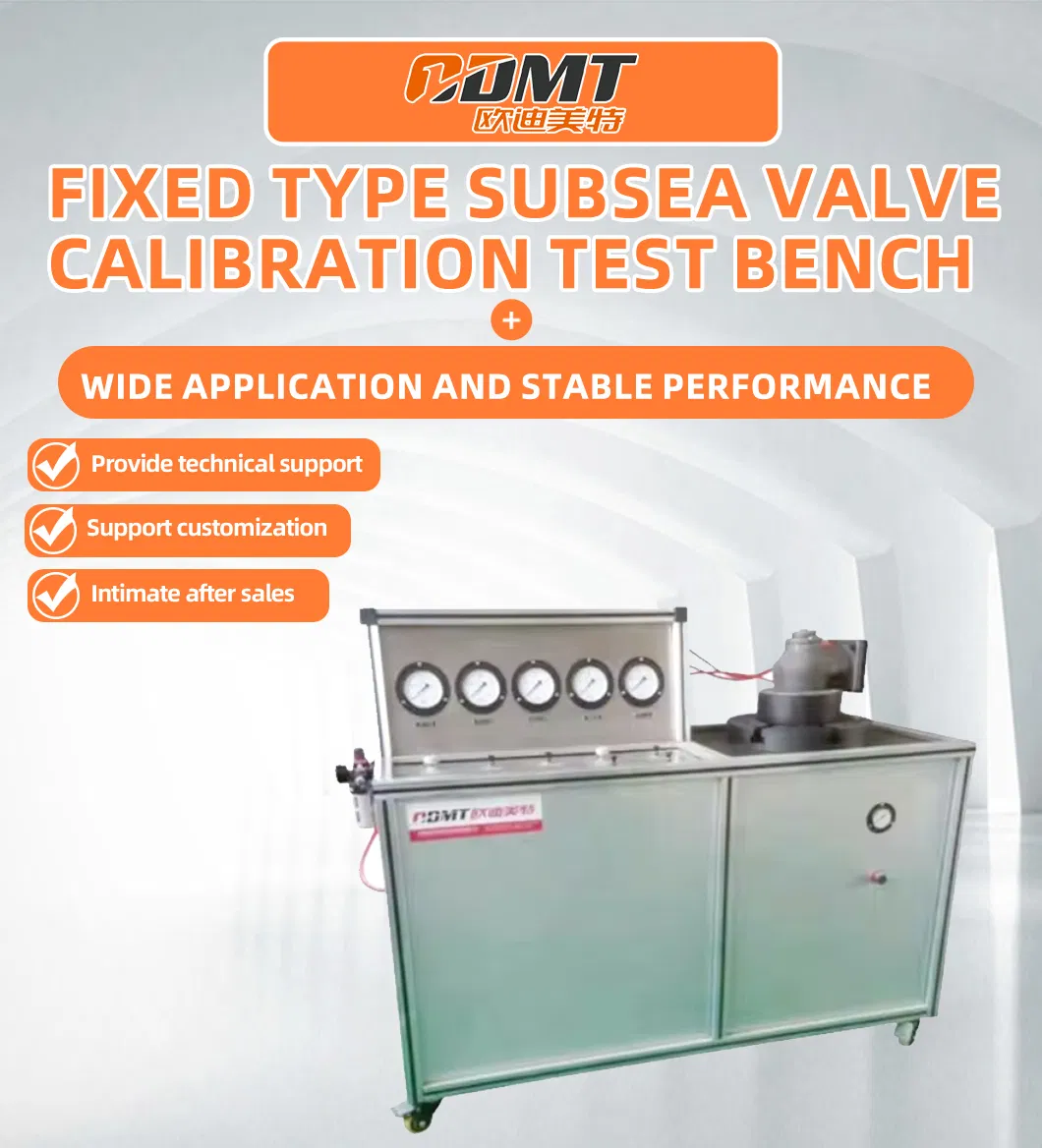

Calibration Equipment

The fixed subsea valve calibration bench is composed of a valve body, valve core, spring, piston, cylinder opening mechanism, and seals. These components work together to ensure high-quality sealing performance. Submarine valves are critical components for fuel tanks and refueling trucks, directly impacting vehicle safety and quality.

⭐ Our Advantages
Advantages

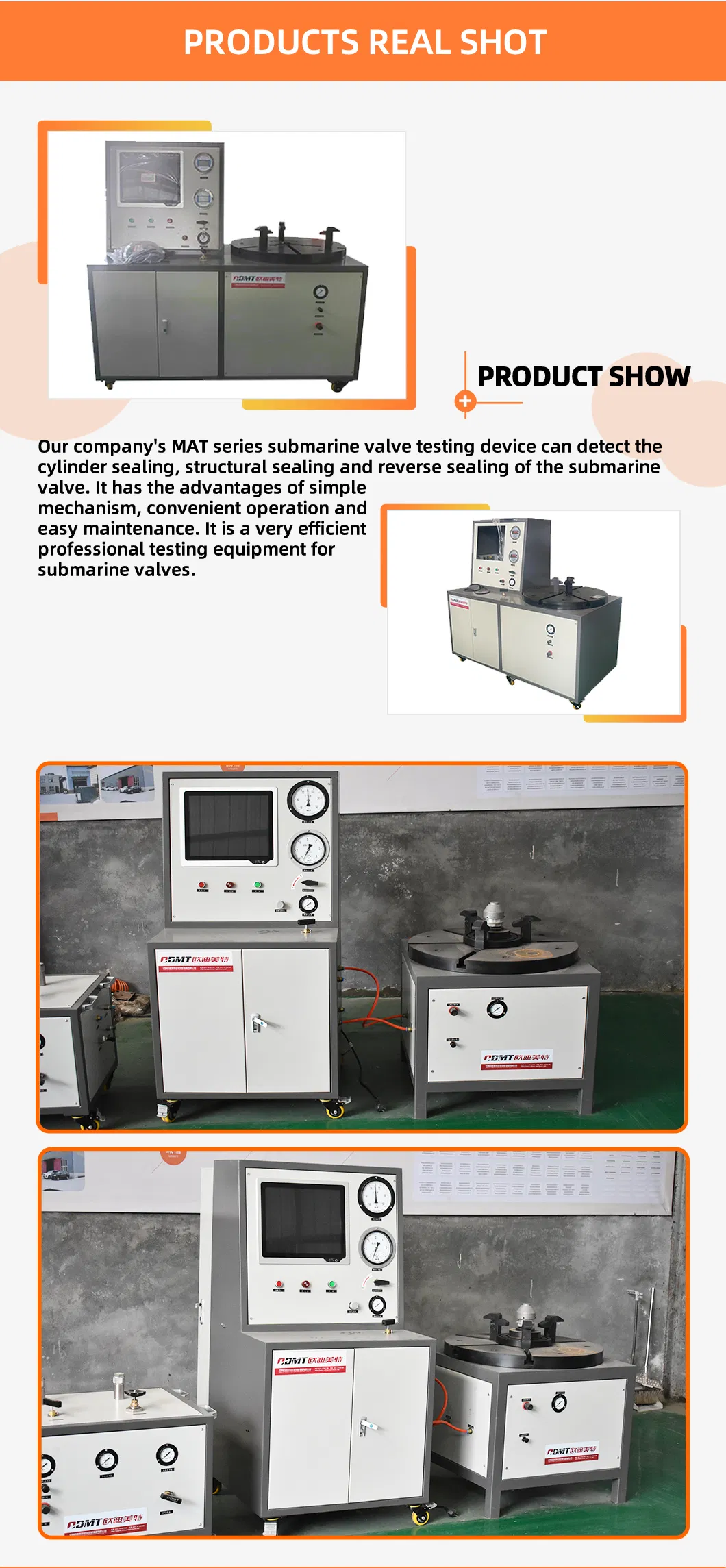

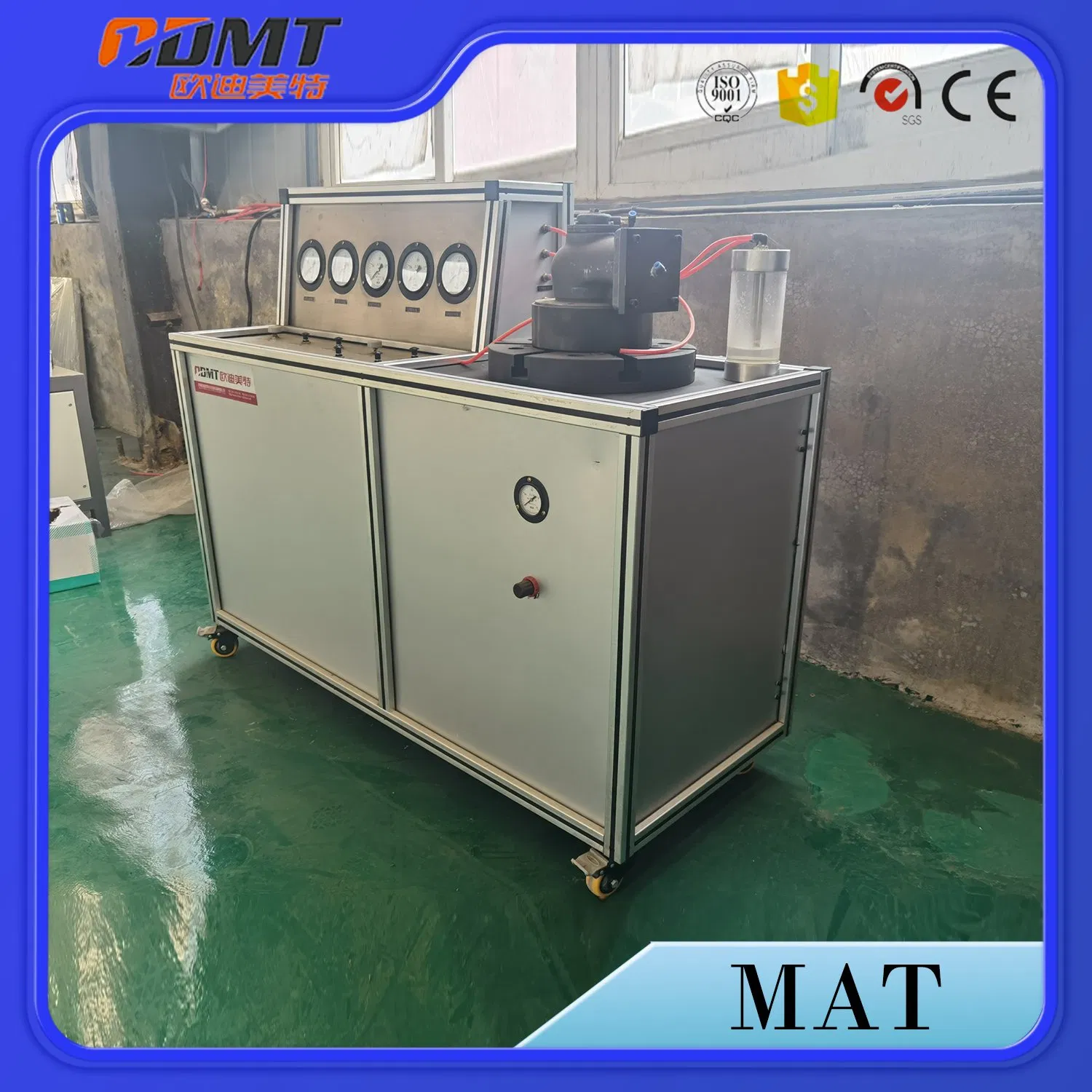

📸 Product Real Shot
Product Shot
⚙ Technical Parameters
Technical Parameter Left Workbench Right Workbench
Test Range DN50-250 DN250-600
Valve Structure Length 43-250mm 165-390mm
Flange Diameter Ф 165-425mm Ф 405-845mm
Maximum Clamping Force 40 Tons 150 Tons
Test Medium Compressed Air
📊 Pressure Range Specifications
Diameter Work Pressure Test Pressure Range
DN50-65 1.6-10.0Mpa 1.6-15.0MPa
DN100 1.6-10.0Mpa 1.6-15.0MPa
DN300 1.6-10.0MPa 1.6-15.0MPa
DN600 1.6-2.5 MPa 1.6-3.75 MPa

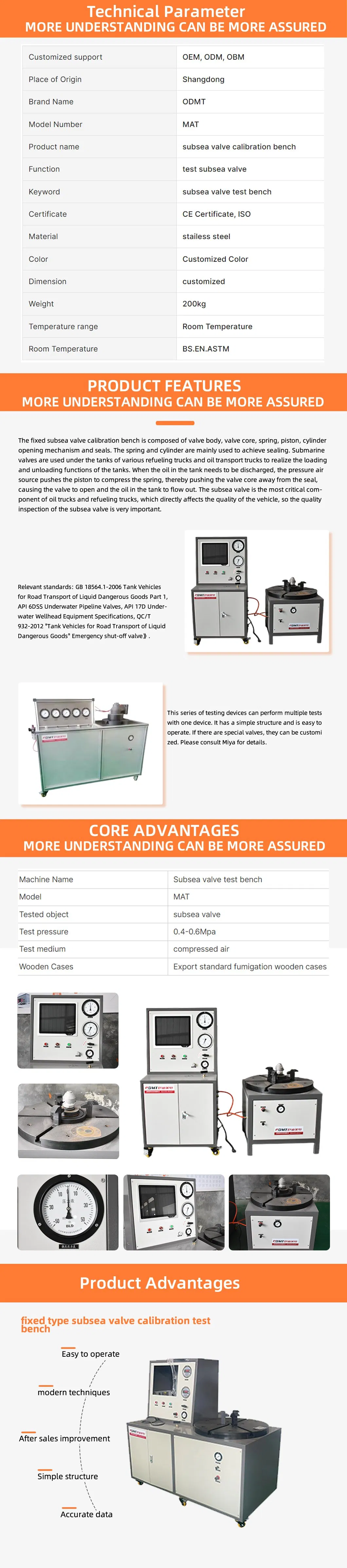

Detailed Parameters
📦 Packaging & Shipping

All equipment is packed in export-standard fumigation wooden cases to ensure safe transport.

Packaging
📜 Certifications
Certifications
❓ FAQ
What types of valves can this test bench calibrate?
It is specifically designed for subsea valves, atmospheric tank truck valves, and emergency shut-off valves, supporting cylinder, structural, and reverse sealing tests.
Do you maintain stock for immediate shipment?
Generally, we maintain some stock. For bulk or customized orders, additional production time is required, and all details will be provided before processing.
What is the standard lead time for large orders?
Sample orders are usually finished within one week, while large orders typically take 15-25 days depending on the specific quantity.
What are the standard payment terms?
For sample orders, 100% payment is required upfront. For large orders, we require a 30% deposit with the 70% balance due upon receipt of the BL copy.
Which technical standards does the equipment comply with?
Our equipment complies with relevant standards including GB 18564.1-2006, API 6DSS, API 17D, and QC/T932-2012 for emergency shut-off valves.
Are customized solutions available for special valve types?
Yes, if you have special valve requirements, we offer customized support including OEM and ODM services to meet your specific testing needs.
