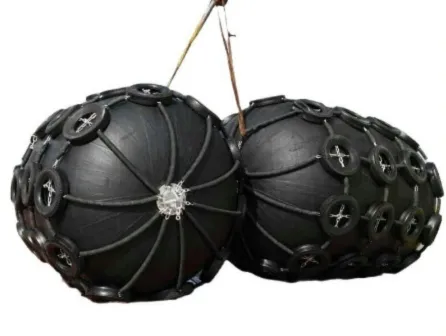

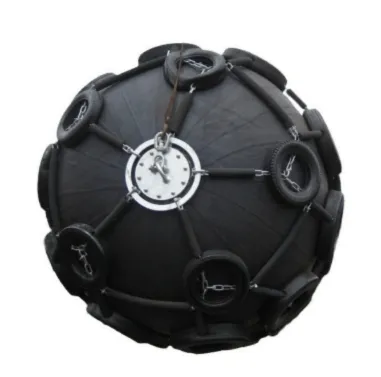

Pneumatic Type Rubber Fender, also known as Yokohama fender, is a leading anti-collision device for marine applications globally. Made from high-quality rubber and multiple layers of rubber-dipped tyre fabric, it provides an ideal protection medium for Ship-to-Ship (STS), Ship-to-Quay (STQ), and Ship-to-Berthing (STB) operations.
Safety Valve: Fenders with a diameter of 2500mm and larger are equipped with a safety valve to release excess internal pressure during accidental over-compression. Smaller sizes can also be equipped upon request.
| Parameter | Details |
|---|---|
| Material | Natural rubber, Rubber dipped tire cord fabric |
| Initial internal pressure | 50kpa, 80kpa |
| Technology | Anti-high pressure, Anti-explosion, Anti-aging |
| Warranty | 2 Years |
| Function | Ship protection and collision prevention |
Common Sizes of Pneumatic Yokohama Fender (Custom sizes available):
| D (mm) | L (mm) | RF(KN) - 50kpa | GEA(KJ) - 50kpa | RF(KN) - 80kpa | GEA(KJ) - 80kpa |
|---|---|---|---|---|---|
| 1000 | 1500 | 182 | 32 | 239 | 45 |
| 1500 | 3000 | 579 | 153 | 761 | 214 |
| 2000 | 3500 | 875 | 308 | 1150 | 430 |
| 2500 | 5500 | 2019 | 943 | 2653 | 1317 |
| 3300 | 6500 | 3015 | 1814 | 3961 | 2532 |
We are a comprehensive marine supply enterprise, integrating scientific research, design, and product development. Specializing in Marine Rubber Fenders, Foam Filled Fenders, and Marine Landing Balloons, our products conform to strict international standards.
Our management system is ISO9001-2008 certified. All products strictly implement CB/T-3795 requirements and are recognized by major classification societies including CCS, DNV, BV, and GL.
To ensure the safety of your goods, professional, environmentally friendly, and efficient packaging services are provided for all international shipments.
