Product Description

📋 Basic Information
Model NO.
RS-109M
Product Name
AIS Buoy for Marine and Fishing GPS Track
Dimensions
330*74*65mm
Frequency Range
161.975-162.025MHz
Color
Orange
Certificate
FCC, CE
Warranty
12 Months
Operating Voltage
7.4V
Power
5W
Battery
3000mAh
Waterproof Level
IP-X7
Standby Time
20 Days
RS-109m Marine AIS Buoy
✨ Key Features
🕋
Long Standby Time: Up to 20 days of operation with 3000mAh battery.
📦
Compact Design: Easy to install and manage for marine environments.
📡
High Power Transmission: 5W output for long-distance communication (approx. 7nm).
📍
Precision GPS: Fast receiving and high accuracy positioning data.
📊
Real-time Monitoring: Sends AIS positioning and battery power data in real time.
🚢
Anti-collision: Widely used for search, safety, and vessel tracking.
⚙ Technical Specifications
Parameter Value Parameter Value
Output Power 5W Frequency Stability ±0.5 ppm
Modulation Mode GMSK Operating Temp. -20ºC ~ +60ºC
Current Drain ≤1.5A Frequency Offset 1.8kHz
Channel Spacing 25kHz Baud Rate 9600bps
GPS Update Time 1~30 Min (Default 3) Battery Capacity 3000 mAh
📸 Product Showcase

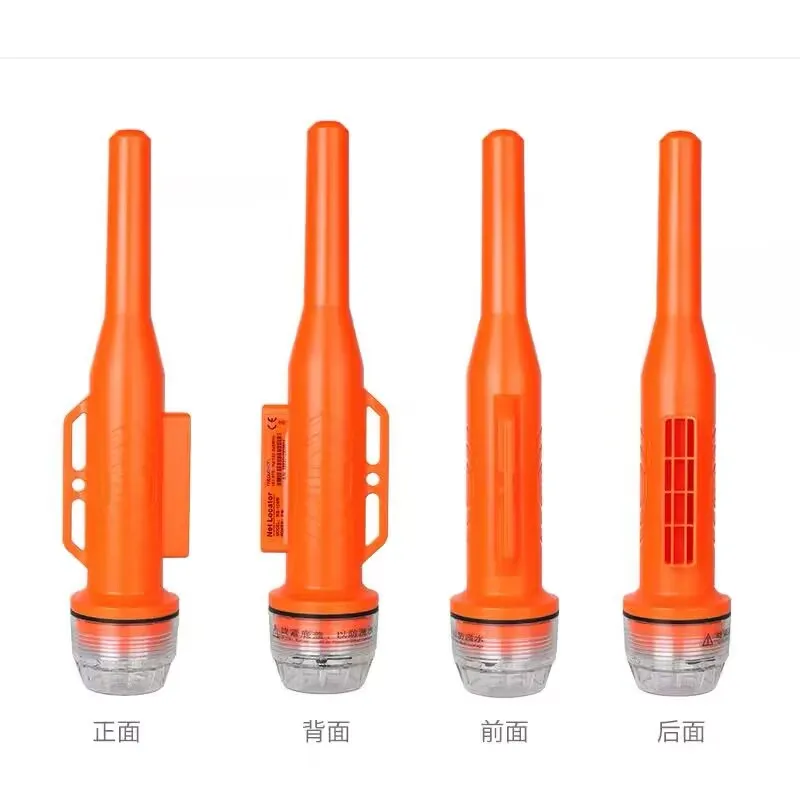

RS-109m AIS Tracker

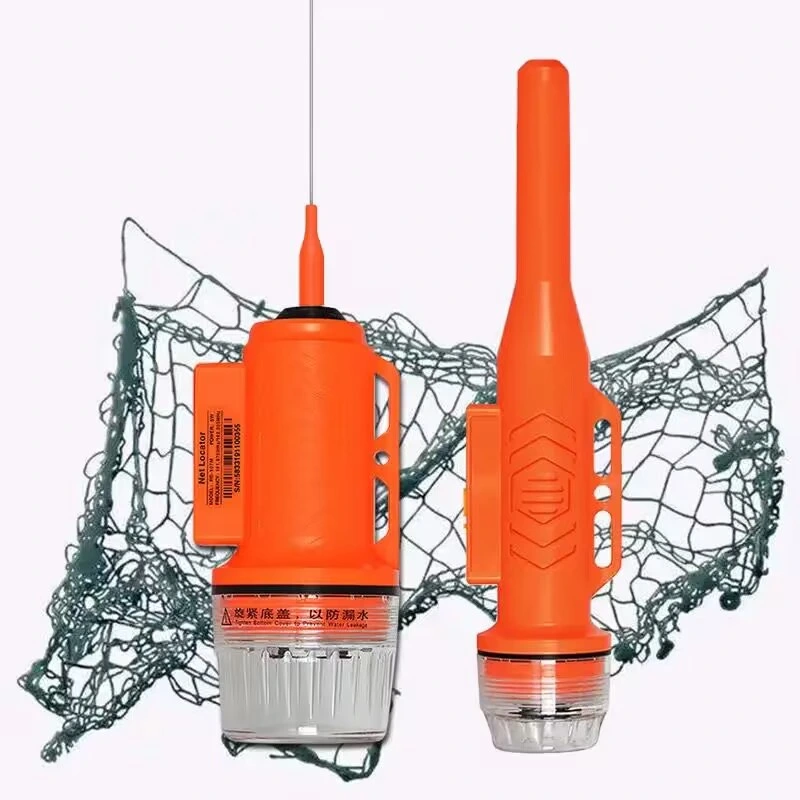

RS-109m Fishing Net Locator

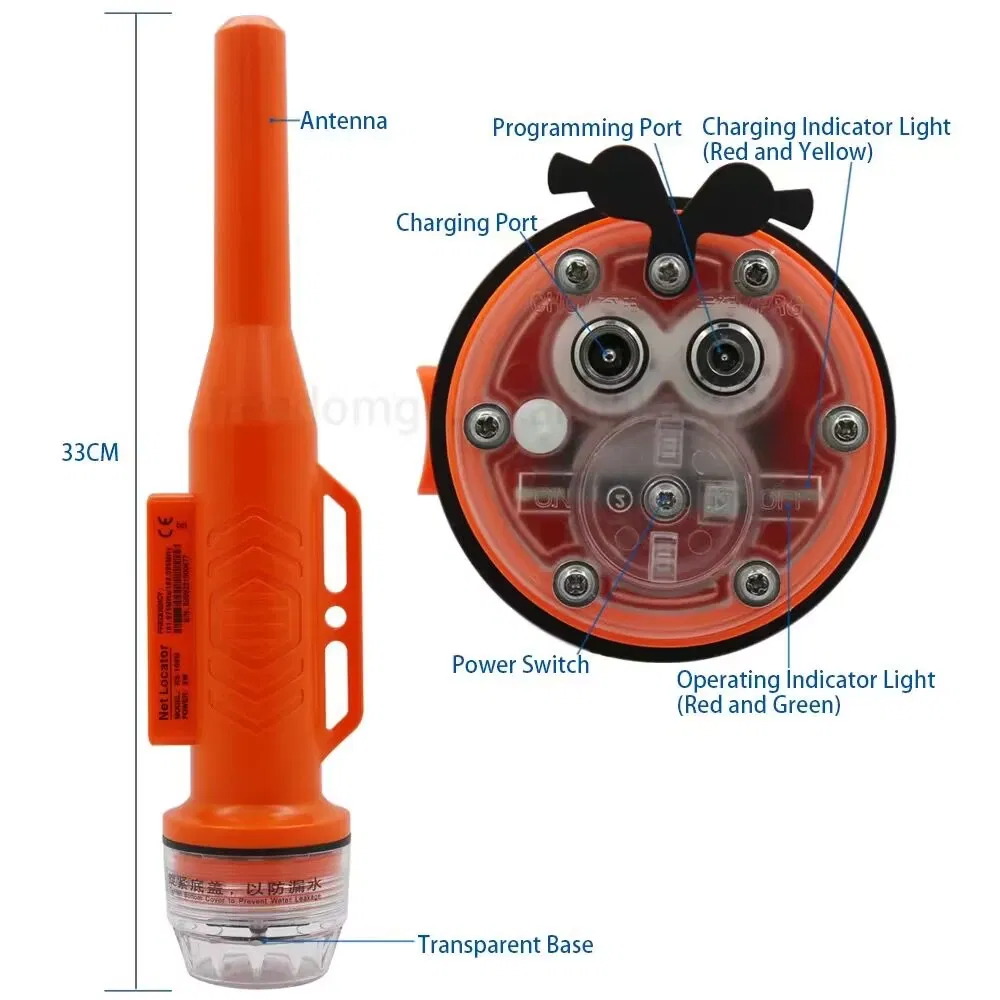

Marine GPS Tracker Detail

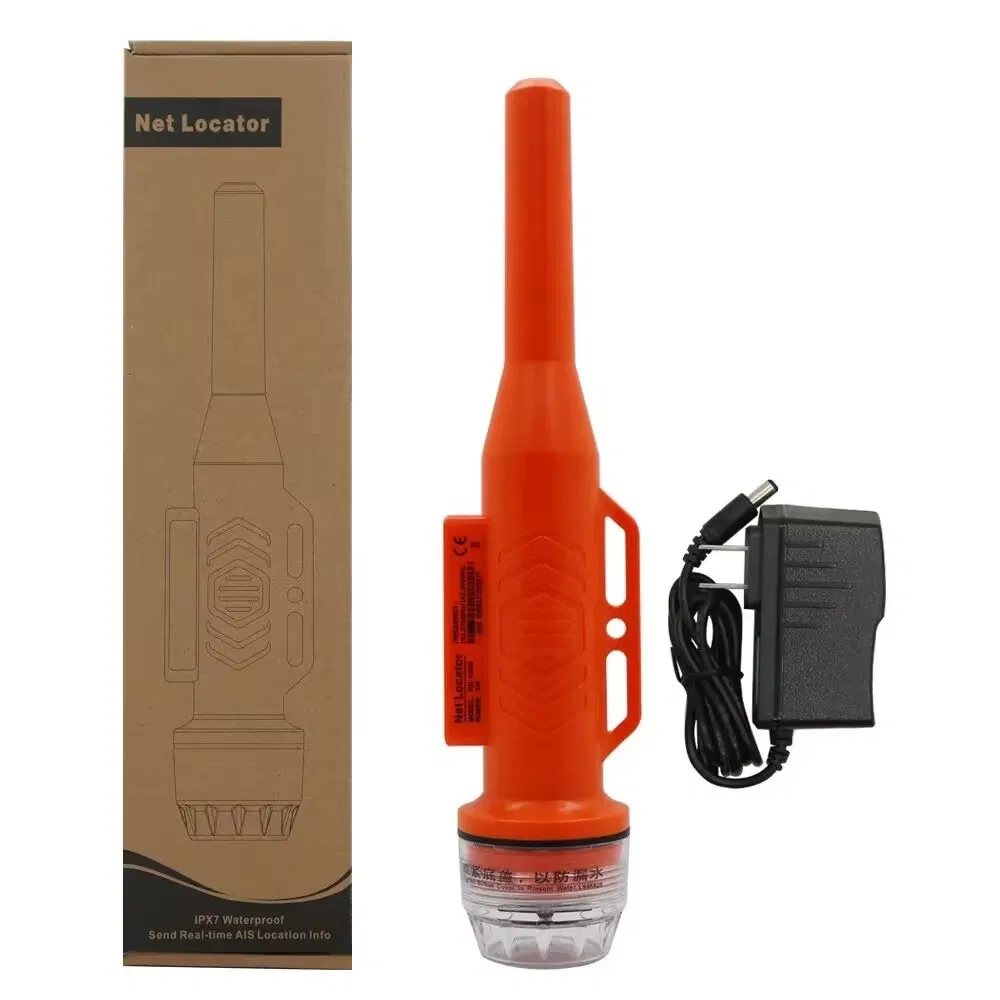

AIS Receiver Compatibility
Battery Information AIS
IPX7 Waterproof Test
❓ Frequently Asked Questions
Why is the voice sometimes intermittent?
Ensure you are within the normal communication range. For longer distances, consider an antenna with higher output power. If issues persist, the device may require professional inspection.
What should I do if the device won't turn on or shuts off automatically?
Check the battery contacts. If they are broken, twisted, or dirty, they may need cleaning or professional maintenance.
Why can't I transmit or receive signals with other members?
Verify that the channel frequency and CTCSS settings match your group members. Also, ensure all parties are within the effective radio coverage area.
Why am I receiving voices from other unintended groups?
This is usually due to frequency overlap. You can switch to a different channel or adjust the channel frequency using the provided software.
Which frequency band is better: VHF or UHF?
It depends on the environment. VHF performs better in open outdoor areas with foliage, while UHF is superior for penetrating obstacles like steel and concrete in built-up areas.
How long does the battery actually last in standby?
The RS-109M is equipped with a 3000mAh battery providing a standby time of approximately 15 to 20 days, depending on the GPS update interval settings.
