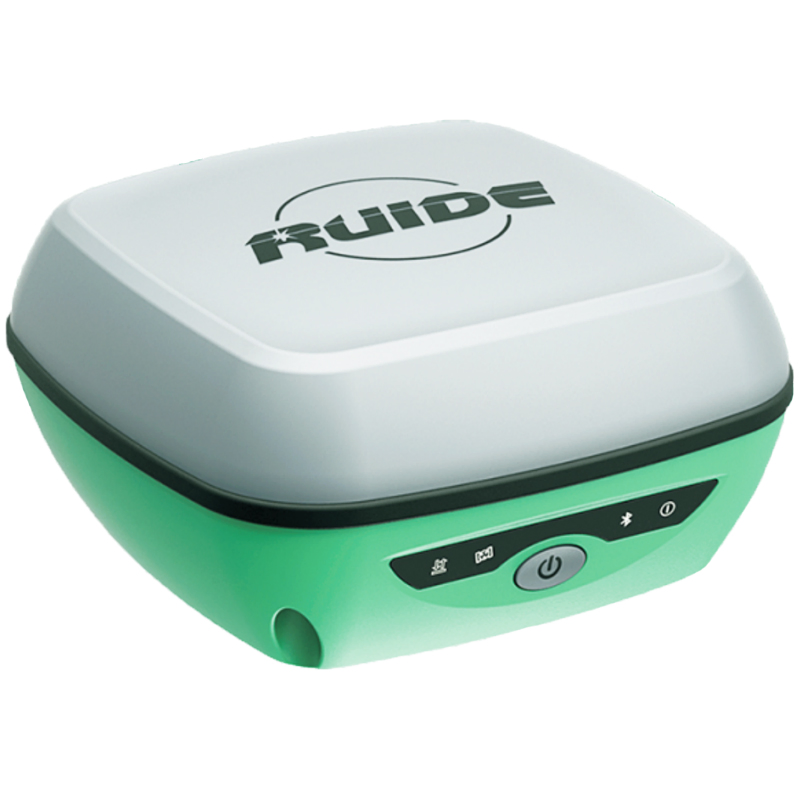

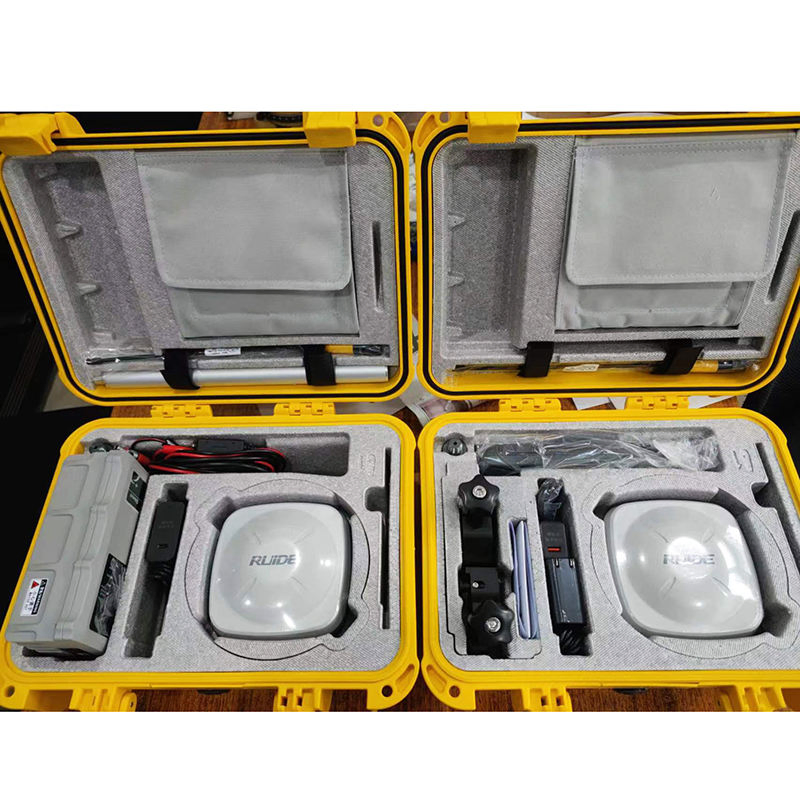

Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency
Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency
Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency
Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency
Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency
1 / 5
Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency
Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency
Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency
Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency
Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency

Ruide R93I Gnss Rtk Professional Handheld Cheap GPS with Dual Frequency

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.R93i
Carrier FrequencyDual-Frequency
Port Number1598 Channel
ChipSiRF
Warranty3 Years
Product NameR93I Gnss Receiver
ConstellationGPS, Glonass, Beidou, Galileo
Static Accuracy2.5mm +0.5ppm, 5mm+0.5ppm
Rtk Accuracy8mm+1ppm, 15mm + 1ppm
Internal Memory4GB
Special FeaturesLED Screen, Tilt Sensor, Ebuble, Two Battery
OriginChina
Packaging & Delivery
Package Size55.00cm * 45.00cm * 35.00cm
Gross Weight30.000kg
Capacity20000PCS/Year
Product Highlights
GNSS Receiver Overview GNSS Receiver Banner
Category Feature Specification
GNSS Tracking Channels 1598 Channels
Satellites BDS, GPS, GLONASS, Galileo, SBAS, QZSS
L-Band Supported
Positioning Rate 1Hz ~ 20Hz
Accuracy Static GNSS H: 2.5mm+0.5ppm | V: 5mm+0.5ppm
RTK Surveying H: 8mm+1ppm | V: 15mm+1ppm
System OS Linux
Interaction WebUI (WiFi/USB Access), Intelligent Voice (EN, CN, RU, etc.)
Battery 6800mAh 7.4V (8+ hours duration)
Communication Radio Built-in 410-470MHz; Protocols: TrimTalk, SOUTH, CHC, HI-TARGET
Wireless Bluetooth 4.0/2.1, NFC Pairing, WiFi 802.11b/g/n
Data Storage 8G Solid State, supports 32GB extension
Physical Protection IP68 (Waterproof 1m, Dustproof)
Sensors IMU Tilt Measurement, Electronic Bubble, Temperature Sensor
Detailed View
Product detail 1

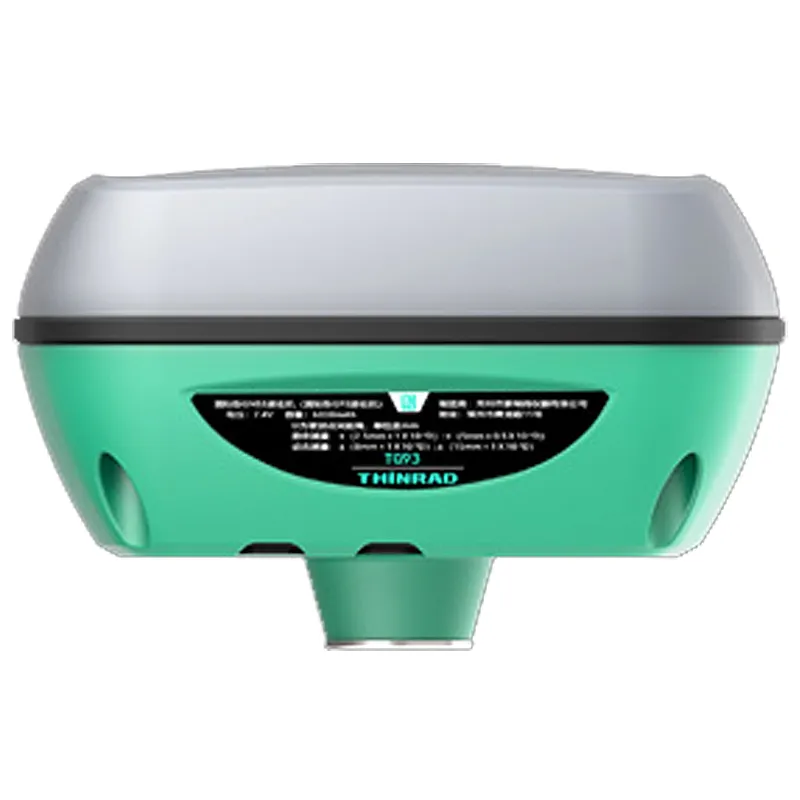

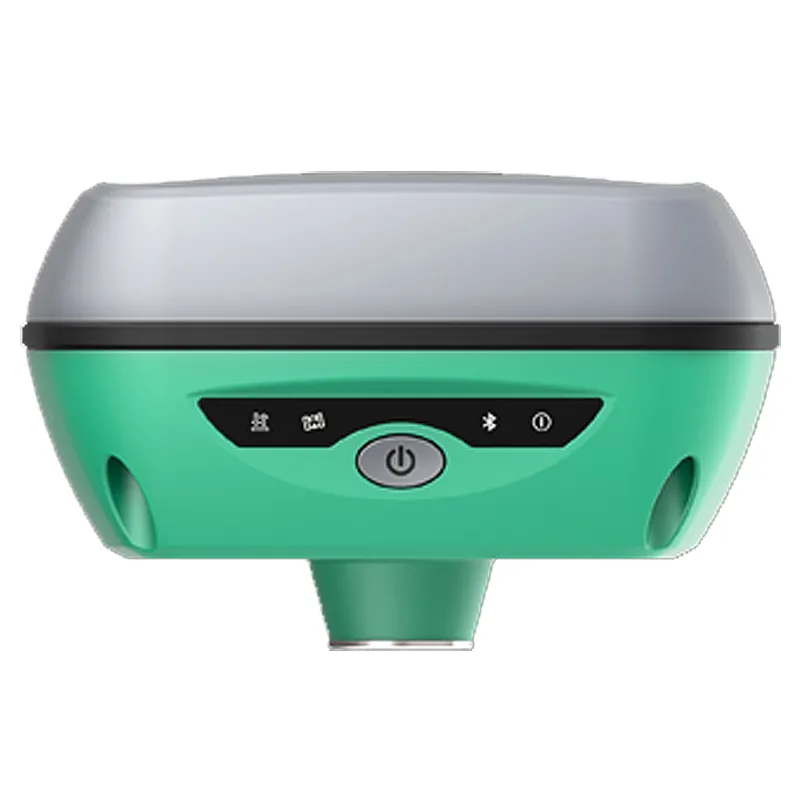

Product view 1 Product view 2 Product view 3
Product components 1 Product components 2
Technical diagram 1 Technical diagram 2
Product Full Layout
Frequently Asked Questions
How many channels does the R93i GNSS receiver support?
The R93i is equipped with 1598 channels, allowing it to track all existing and planned GNSS constellations including GPS, GLONASS, Beidou, and Galileo.
What is the battery life of the device during field operations?
It features a high-capacity 6800mAh built-in battery that supports more than 8 hours of continuous routine operation.
Does the R93i support tilt measurement?
Yes, it includes a built-in IMU sensor that supports tilt measurement. It automatically corrects coordinates based on the tilt direction and angle of the centering rod.
Is the receiver durable enough for harsh environments?
Absolutely. The R93i has an IP68 rating, making it completely dustproof and waterproof (up to 1m immersion). It is also shockproof and can withstand a 2-meter drop with a pole.
What kind of user interaction options are available?
Users can interact via a single-button operation, an LED screen with four indicator lights, intelligent voice prompts in multiple languages, and a built-in WebUI management system accessible via WiFi or USB.
What is the positioning accuracy for RTK surveys?
The RTK accuracy is 8mm + 1ppm for horizontal positioning and 15mm + 1ppm for vertical positioning.
