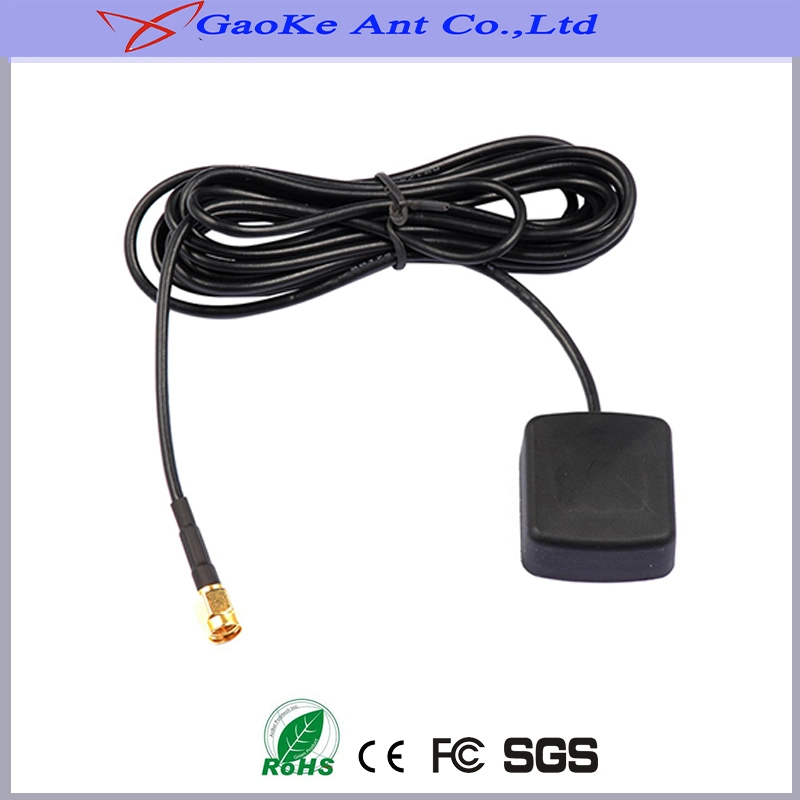

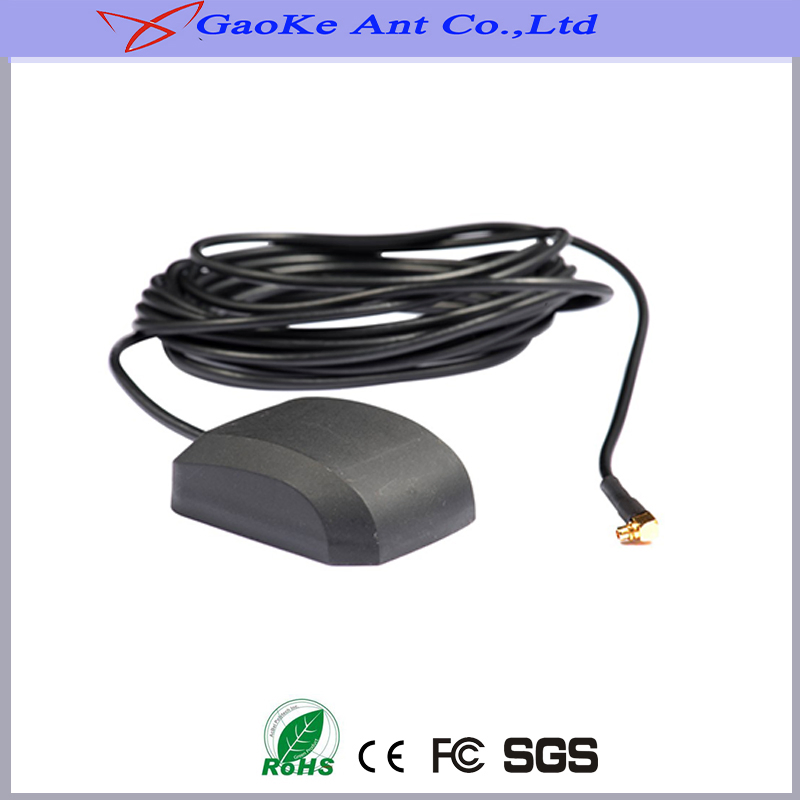

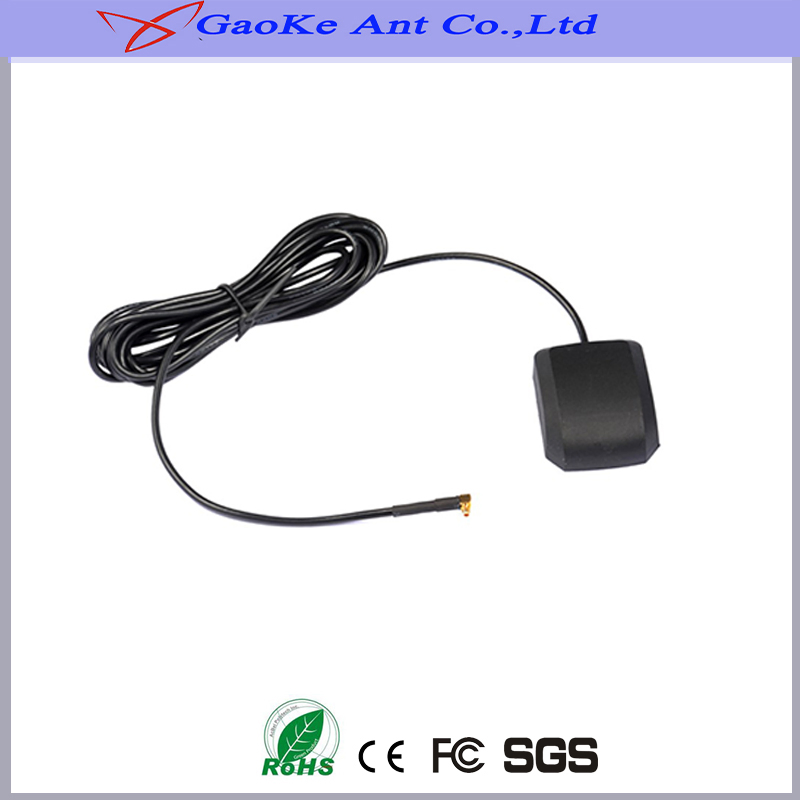

Small Type Marine GPS Time Antennas 1575MHz (With TNC connector) 10 M Cable GPS Antenna

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Specifications
Model NO.
GkA-GPS-M00219
Nature of Operation
Receiving Antenna
Structure Form
Wire Antenna
VSWR
<1.5
Receiving Frequency
1575.42MHz
Gain
28db
Polarization
Rhcp
Mounting
Magnetic
Weight
<100g
Usage
Car Antenna
Operating Wavelength
Microwave
Base Antenna
Directional Antenna
Capacity
5,000,000 PCS/Day
Compliance
ISO/TS16949, CE, RoHS, FCC
📝 Product Description
About Our Wireless Solutions
Established in 1993, we are a leading provider of wireless telecommunication solutions. Our facilities are equipped with advanced network analyzers, spectrum testers, and noise detectors. Our team consists of antenna experts supported by professional testing sites to ensure top-tier product performance.

Both the quality and price of our products are highly competitive. We ensure timely delivery and provide comprehensive after-sales support for all our wireless components.

🔍 Specifications & Testing

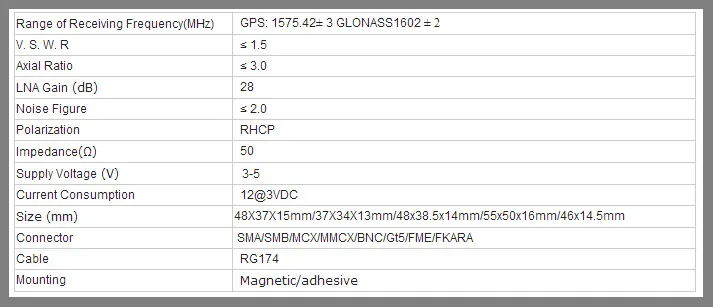

GPS Antenna Specification
⚙️ Antenna Analysis

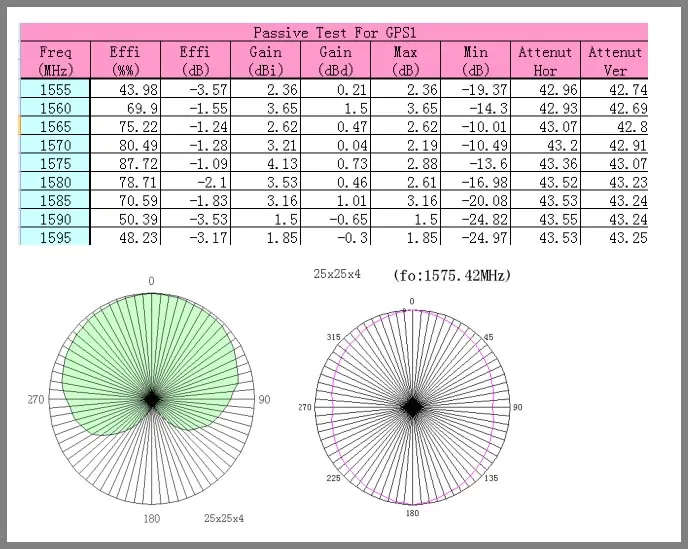

Antenna Test Report 1
Antenna Test Report 2
🏭 Production & Quality

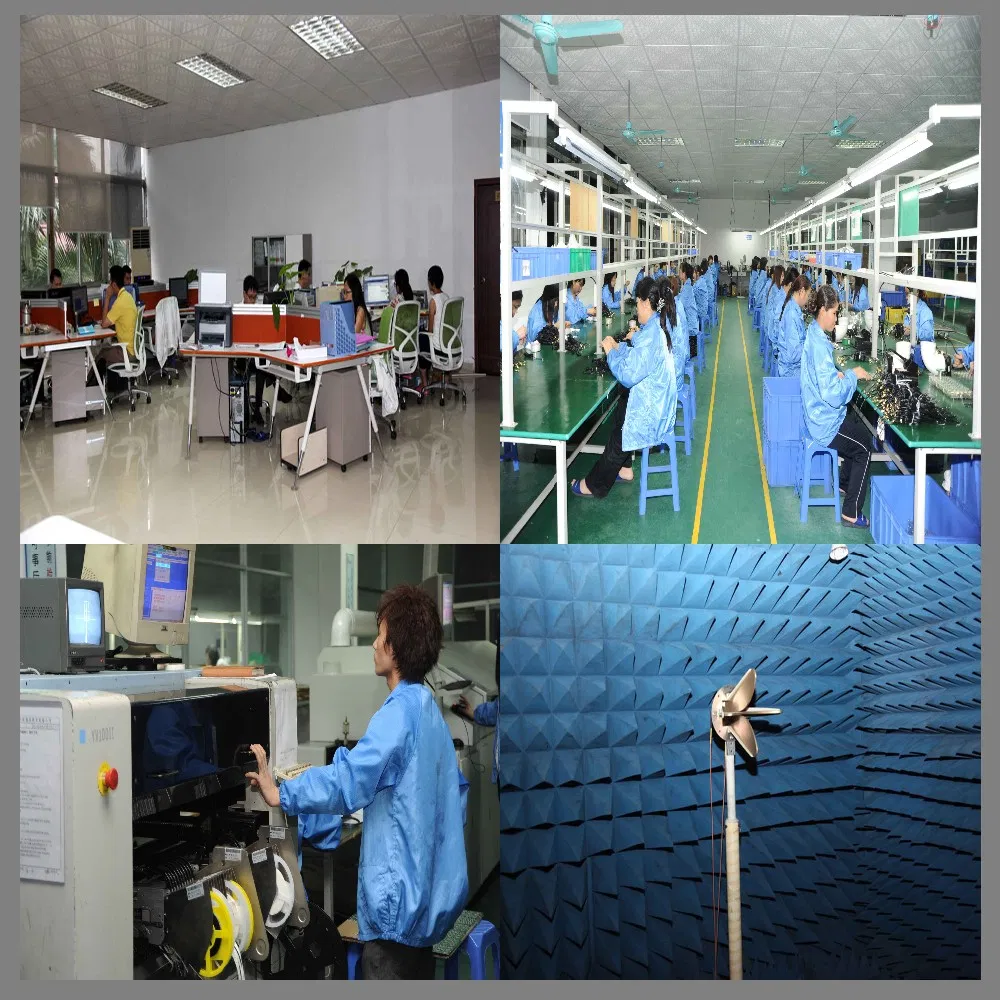

Production Process

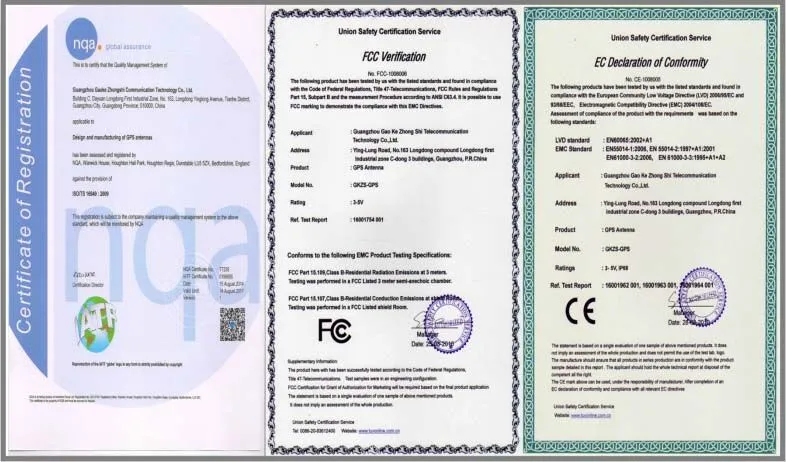

Certification Documents
Exhibition Display
Frequently Asked Questions
1. What is the frequency range of this GPS antenna?
This antenna is specifically tuned for the 1575.42MHz frequency, making it ideal for standard GPS signal reception.
2. How is the antenna mounted to a vehicle?
The antenna features a magnetic mounting system, allowing for secure and easy attachment to any metallic surface without drilling.
3. What is the gain and VSWR of this model?
The antenna provides a high gain of 28dB with a Voltage Standing Wave Ratio (VSWR) of less than 1.5, ensuring stable signal quality.
4. Is the antenna compliant with international standards?
Yes, our products meet several international certifications, including ISO/TS16949, CE, RoHS, and FCC.
5. What type of cable and connector does it use?
While specifications can vary, this series typically uses high-quality wire connectors designed for microwave frequencies. Specific connector types like TNC or SMA can be confirmed based on the model variation.
6. What is the production capacity for bulk orders?
We maintain a high production capacity of up to 5,000,000 pieces per day to support large-scale industrial and commercial requirements.
