| Model NO. | S-7M-LN2-65K-3 | Color Temperature | Cool White (6500K) |
| IP Rating | IP67 / IP68 | Light Source | High Power LED |
| Power Range | 80W - 350W | Voltage | 100V-277V / DC 12V-32V |
| Total Lumen | 11250lm - 16080lm | Peak Intensity | 6.65 Mcd |
| Beam Divergence | 2° - 2.5° FWHM | Rotation | Pan 360° / Tilt +25° to -30° |
| Housing Material | Stainless Steel + Marine Grade Aluminum | Impact Rating | IK10 / IK08-09 |
| Effective Range | Approx. 1000m - 5000m | Standard Compliance | CE, RoHs, TUV, SAA, CB |

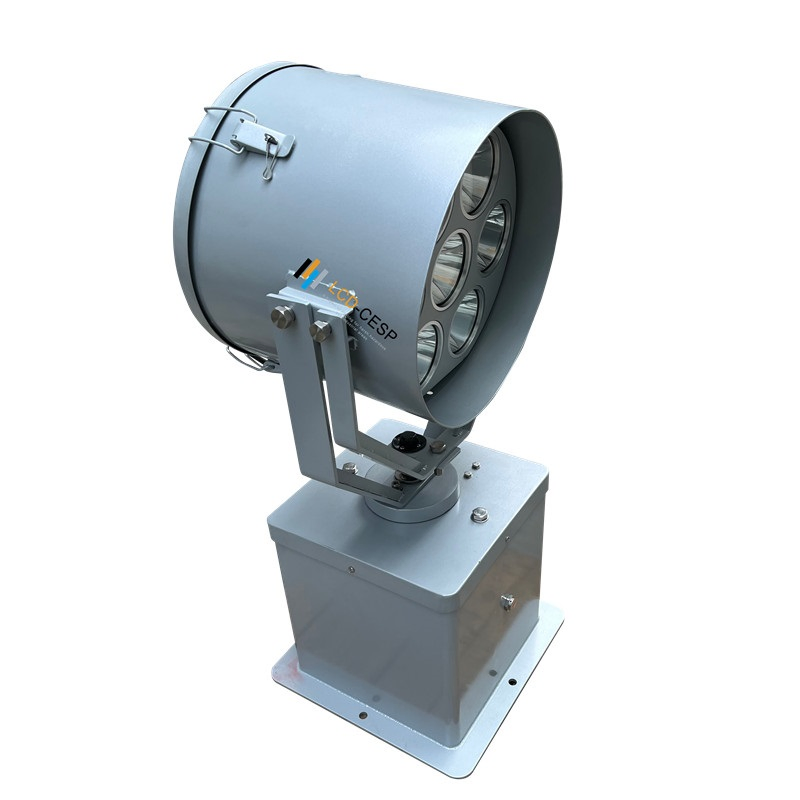

Our Marine LED searchlight series utilizes cutting-edge optical technology to provide an exceptionally sharp, focused 2-degree beam. These laser-style parallel light rays reach distances of up to 5000 meters, making it an essential tool for night navigation, security surveillance, and rescue operations in harsh maritime environments.
| Typical Model | Configuration | Lumen Output | Beam Angle | Candlepower |
|---|---|---|---|---|
| S-4M-LN2 | 4 Modules | Variable | 2.5° | 3,673,851 cd |

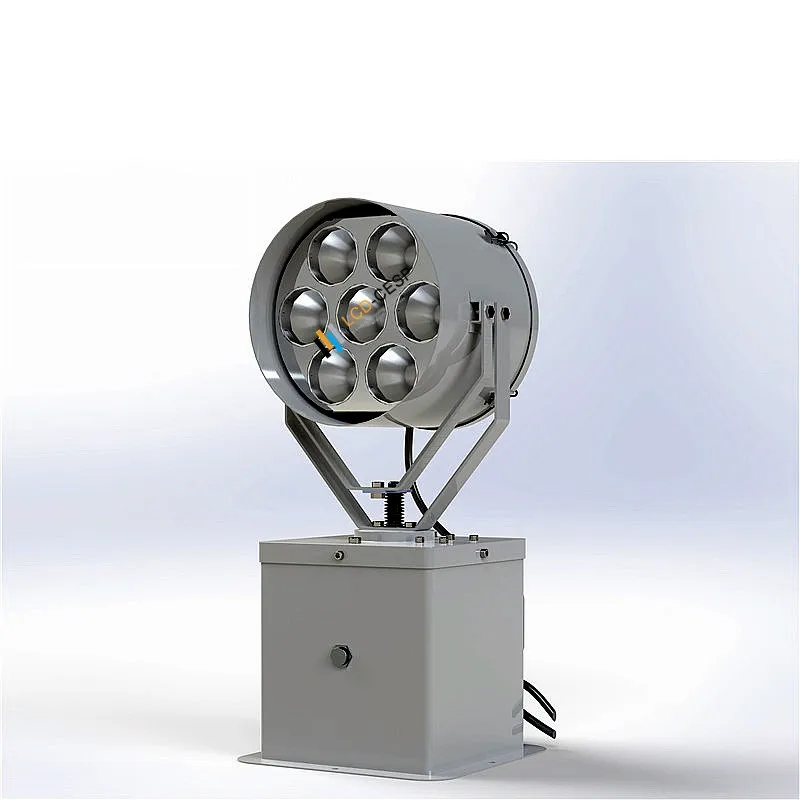

| S-7M-LN2 | 7 Modules | 16,080 LM | 2.5° | 3,673,851 cd |
| S-12M-LN2 | 12 Modules | High Output | 2.5° | Max Intensity |
| IP Rating | IP68 Waterproof | Operating Temp | -30°C to +50°C |
| Pan/Tilt Range | Pan 0°~ 350°, Tilt -30°~ +30° | Warranty | 5 years for marine applications |
*Note: Illumination distances are measured under clear conditions; range may vary in heavy smoke, fog, or smog.
