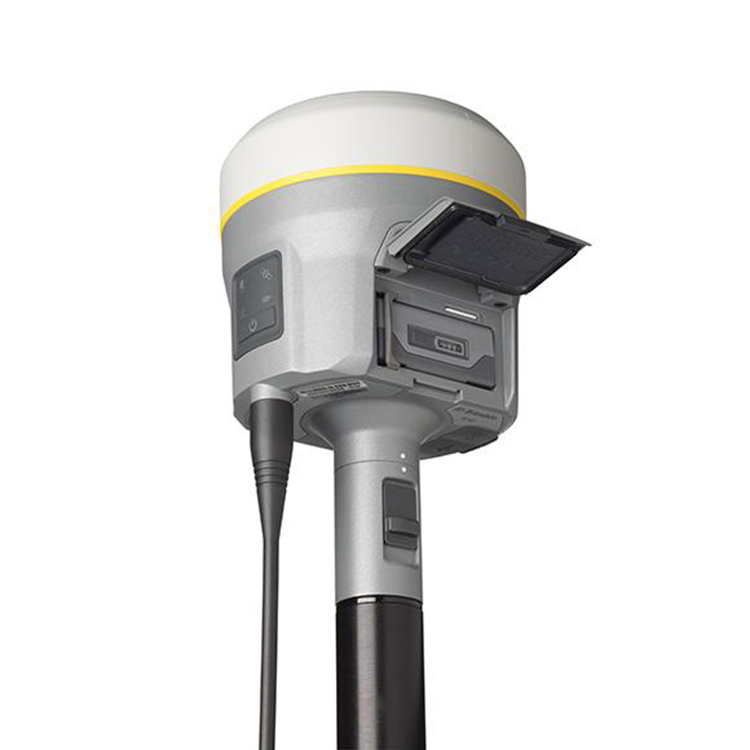

Trimble R10 Gnss Trimble GPS Prices
Trimble R10 Gnss Trimble GPS Prices
Trimble R10 Gnss Trimble GPS Prices
Trimble R10 Gnss Trimble GPS Prices
Trimble R10 Gnss Trimble GPS Prices
1 / 5
Trimble R10 Gnss Trimble GPS Prices
Trimble R10 Gnss Trimble GPS Prices
Trimble R10 Gnss Trimble GPS Prices
Trimble R10 Gnss Trimble GPS Prices
Trimble R10 Gnss Trimble GPS Prices

Trimble R10 Gnss Trimble GPS Prices

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model
R10
Principle
Interferometric Type
Chip
Sirf
Constellation
GPS, Glonass, Beidou, Galileo
Static Accuracy
2.5mm +0.5ppm
RTK Accuracy
8mm + 1ppm
Channels
672 Channels
Memory
4GB
Special Features
Tilt Sensor, LED Screen, Electronic Bubble
Warranty
3 Years
GNSS Receiver Overview Product Details Banner
Technical Performance
Measurement & Positioning Technology
HD-GNSS Technology Faster measuring in harsh environments
SurePoint Electronic tilt compensation and traceability
CenterPoint RTX Worldwide centimeter-level satellite corrections
xFill Technology Reduced downtime during radio signal loss
Static GNSS Surveying
High-Precision Static Horizontal 3 mm + 0.1 ppm RMS
High-Precision Static Vertical 3.5 mm + 0.4 ppm RMS
Physical & Electrical
Dimensions 11.9 cm x 13.6 cm
Ingress Protection IP67 (1m immersion, dustproof)
Operating Temp -40ºC to +65ºC
Power Consumption 5.1 W in RTK rover mode
Communication
Bluetooth / WiFi Fully integrated 2.4 GHz / 802.11 b,g
Internal Radio 410 MHz to 470 MHz; Transmit power 2 W
Product Gallery

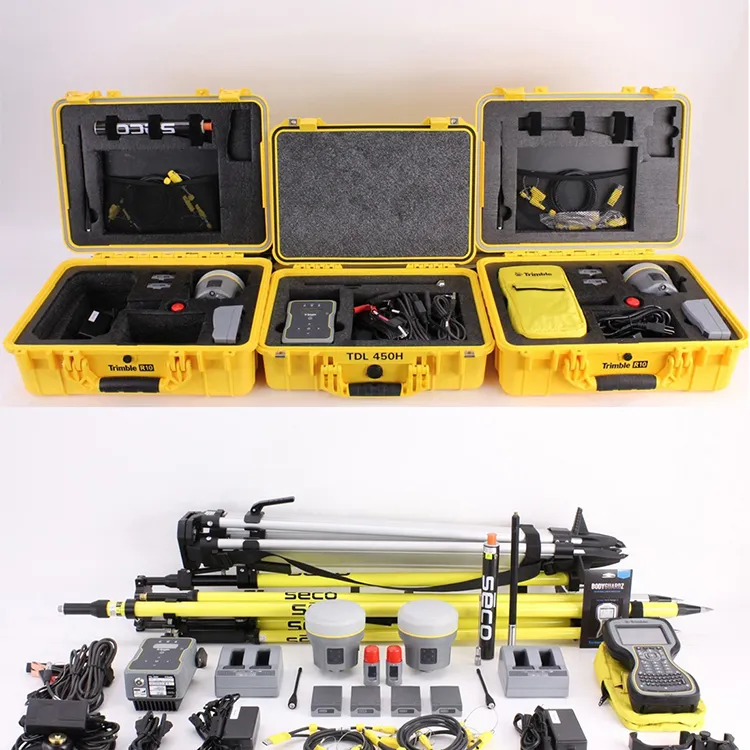

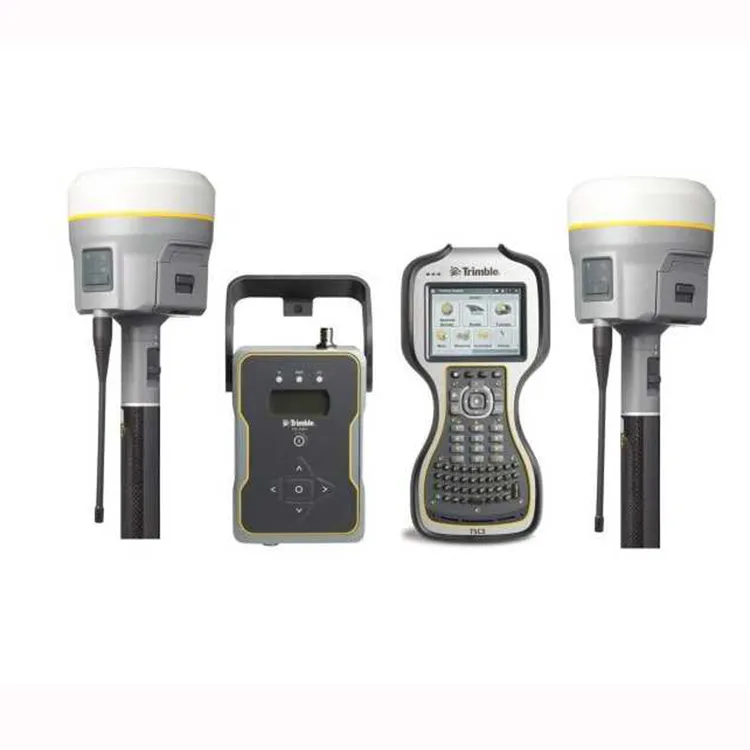

Receiver Module Field Setup Device Interface

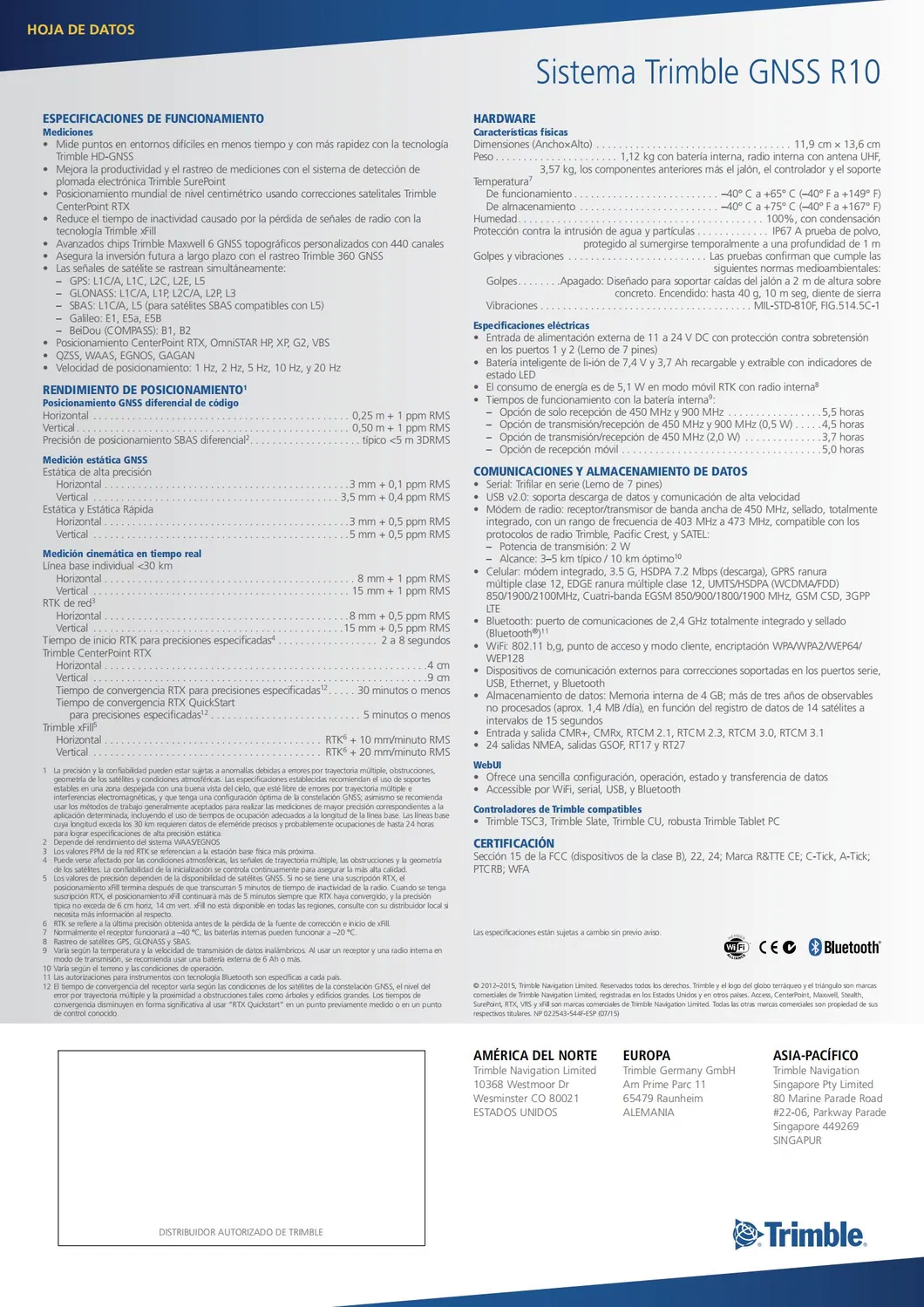

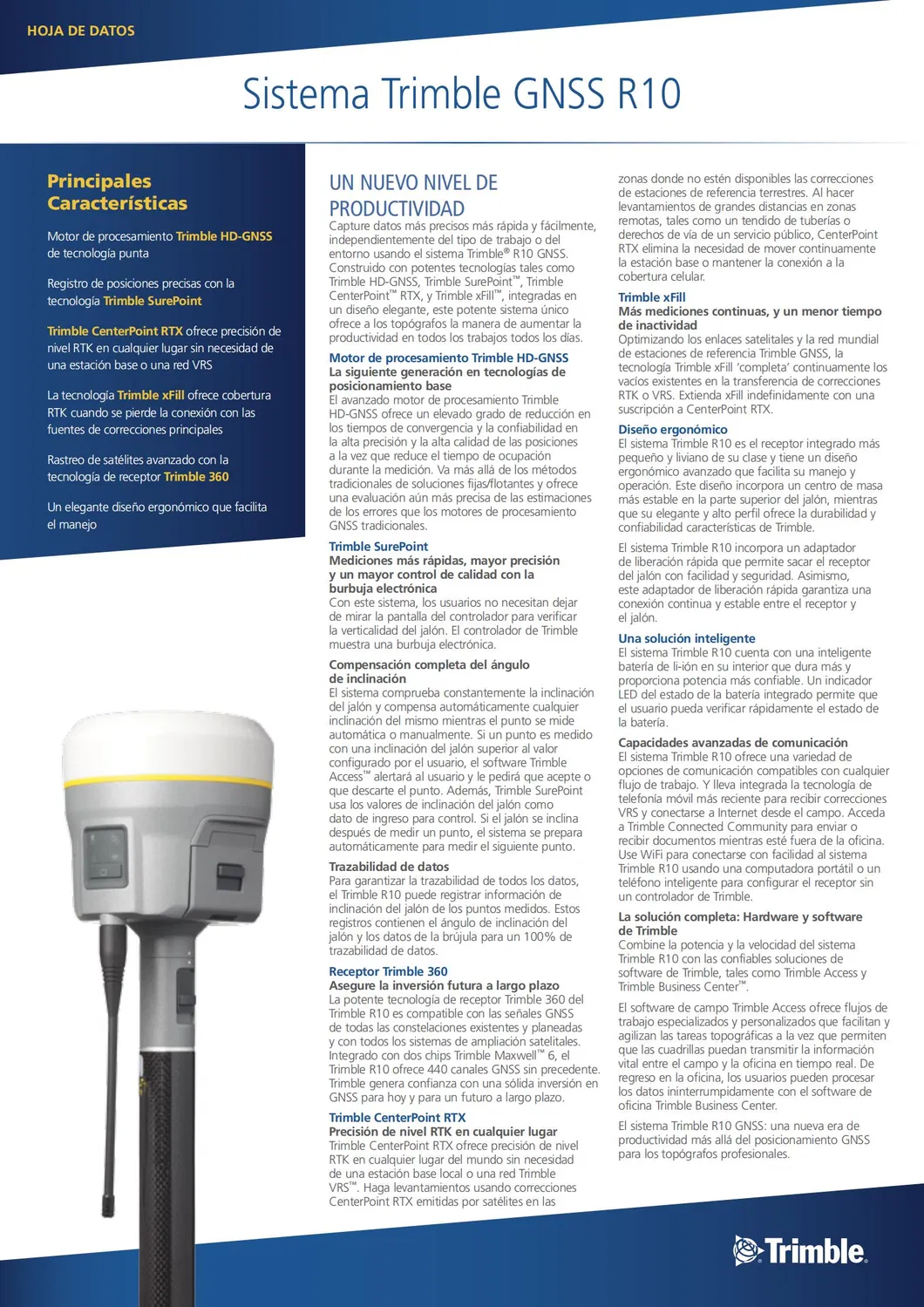

Technical Drawing 1 Technical Drawing 2
Application View Connector View Field Working
Final Overview
Frequently Asked Questions
What satellite constellations does the R10 GNSS Receiver support?
The R10 is a comprehensive solution that supports GPS, Glonass, Beidou, and Galileo constellations, powered by a 672-channel tracking engine.
What is the benefit of Trimble xFill technology?
xFill technology leverages a worldwide network of Trimble GNSS reference stations and satellite datalinks to seamlessly fill in for gaps in your RTK or VRS connection, reducing downtime in the field.
How does the tilt compensation work?
The R10 features SurePoint technology with an electronic tilt sensor. It allows for faster measurements and ensures productivity by compensating for pole tilt and providing an electronic bubble.
What is the environmental durability of the device?
The R10 is rated IP67, meaning it is completely dustproof and can withstand temporary immersion in water up to a depth of 1 meter. It is also tested against MIL-STD-810F standards for shock and vibration.
What is the typical battery life during field operations?
Depending on the mode, the internal smart battery provides approximately 5.5 hours for 450 MHz receive-only and about 3.7 to 5.0 hours for cellular or transmit modes.
Which controllers are compatible with the R10?

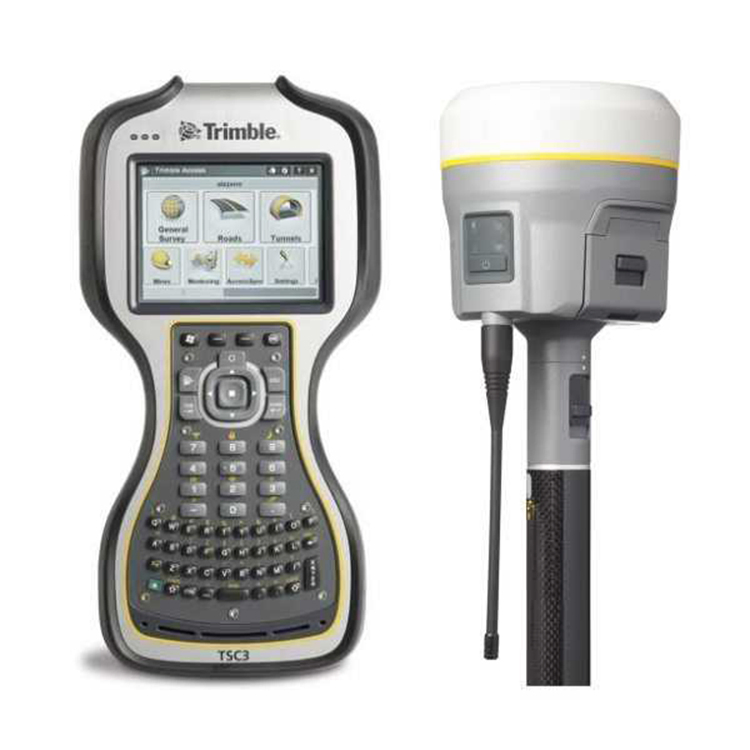

The R10 GNSS Receiver is supported by Trimble TSC3, Trimble CU, and Trimble Tablet Rugged PC controllers for seamless data management.
