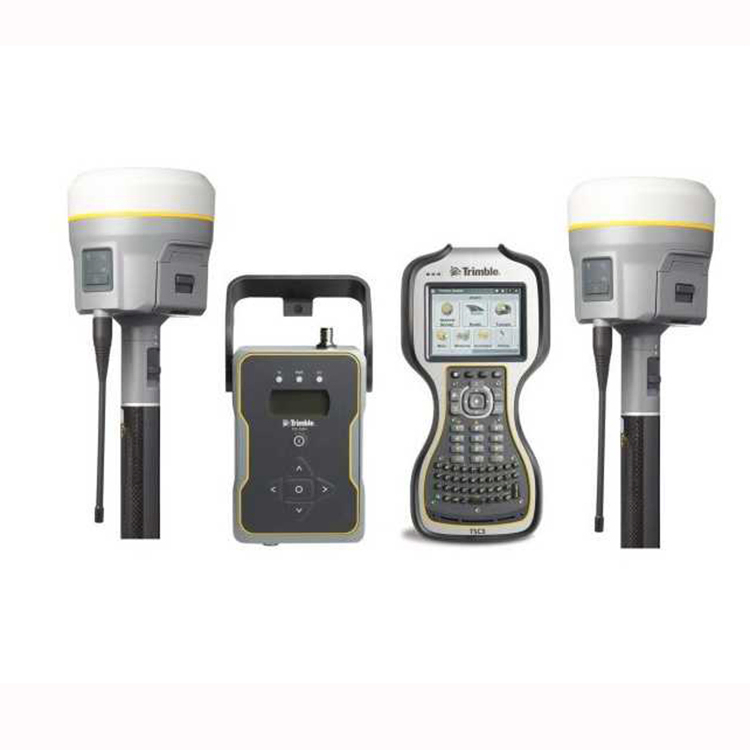

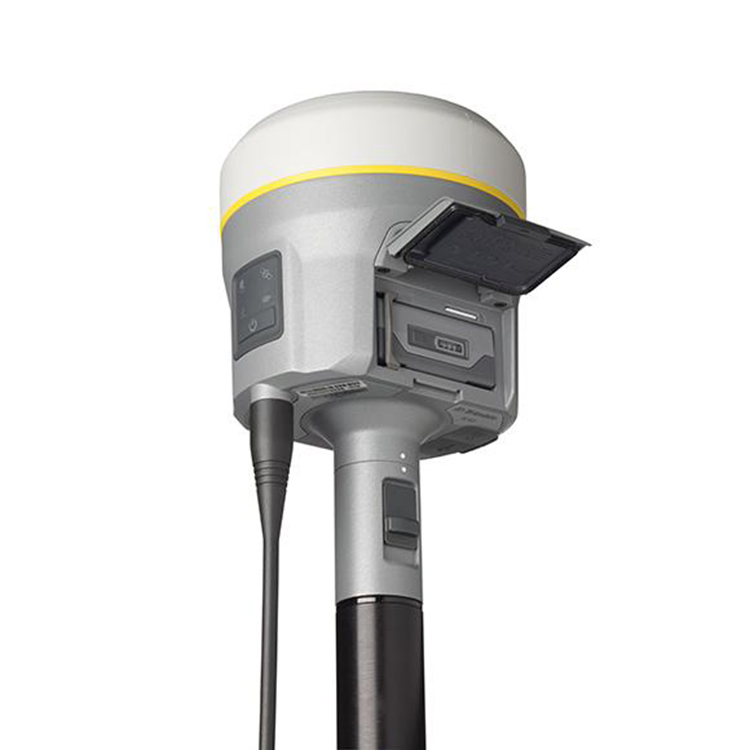

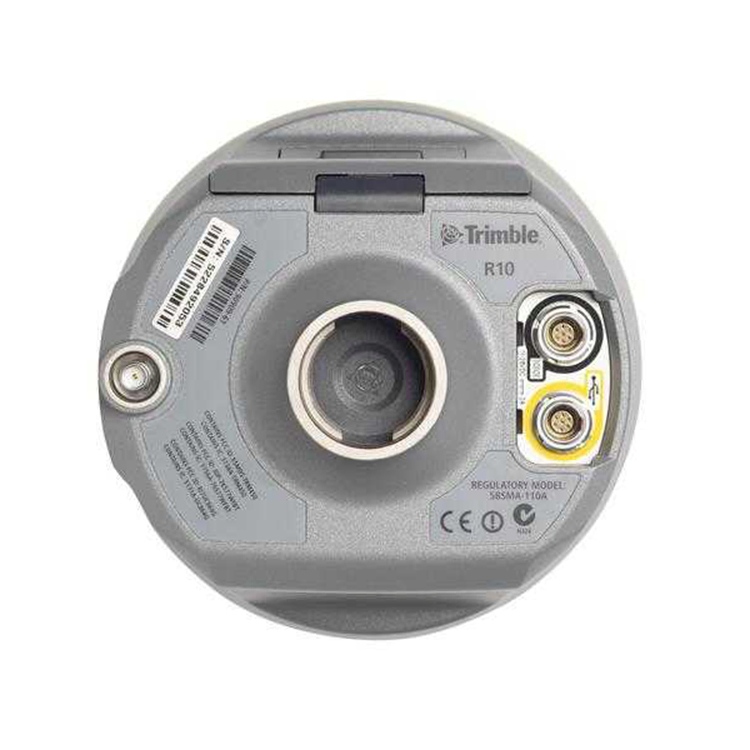

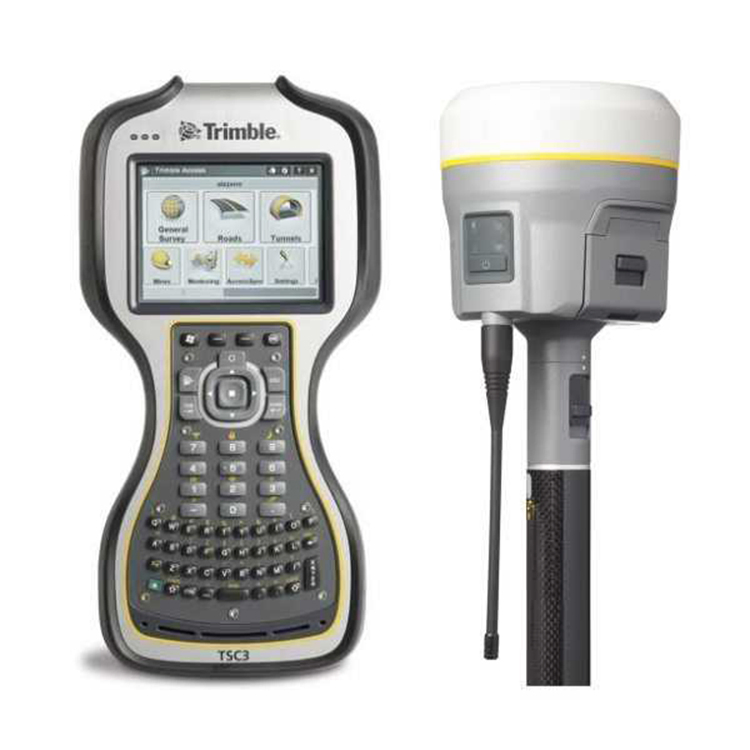

672 Channels Us Original Best Trimble R10 Gnss Receiver GPS Survey Equipment

1 / 5

672 Channels Us Original Best Trimble R10 Gnss Receiver GPS Survey Equipment

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

R10

Carrier Frequency

Dual-Frequency

Port Number

672 Channel

Chip

SiRF

Warranty

3 Years

Brand Name

Trimble

Constellation

GPS, Glonass, Beidou, Galileo

Static Accuracy

2.5mm +0.5ppm, 5mm+0.5ppm

RTK Accuracy

8mm+1ppm, 15mm + 1ppm

Internal Memory

4GB

Special Features

LED Screen, Tilt Sensor, Ebuble, Two Battery

Weight

0.97 kg

✓

Key Technologies & Performance

MEASUREMENT PERFORMANCE
HD-GNSS Technology	Measuring points sooner and faster in harsh environments
SurePoint Technology	Electronic tilt compensation for increased productivity
CenterPoint RTX	Worldwide centimeter-level satellite delivered corrections
Trimble xFill	Reduced downtime due to loss of radio signal
GNSS Tracking	Maxwell 6 Custom GNSS chips with 672 channels
STATIC GNSS SURVEYING
High-Precision Static Horizontal	3 mm + 0.1 ppm RMS
High-Precision Static Vertical	3.5 mm + 0.4 ppm RMS
REAL TIME KINEMATIC (RTK)
Horizontal Accuracy	8 mm + 1 ppm RMS
Vertical Accuracy	15 mm + 1 ppm RMS
Startup Time	Typically 2 to 8 seconds
PHYSICAL & ELECTRICAL
Dimensions (W x H)	11.9 cm x 13.6 cm
Ingress Protection	IP67 dustproof, waterproof to 1m depth
Operating Temp	-40ºC to +65ºC
Power Consumption	5.1 W in RTK rover mode
Battery Life	Up to 5.5 hours (Internal battery)

⚡

Communications & Data

Radio Modem

Integrated 450 MHz (410-470 MHz)

Cellular

3.5G Modem, HSDPA 7.2 Mbps, 3GPP LTE

Bluetooth

Fully integrated 2.4 GHz port

WiFi

802.11 b/g, Access Point & Client mode

Data Storage

4 GB Internal (over 3 years of raw data)

I/O Ports

Serial, USB v2.0, Ethernet

Frequently Asked Questions

1. How many channels does the R10 GNSS Receiver support?

The receiver features advanced Maxwell 6 Custom Survey GNSS chips with a total of 672 channels for robust signal tracking.

2. Does the device support tilt compensation for surveying?

Yes, it is equipped with SurePoint technology and an electronic tilt sensor to compensate for pole tilt and increase measurement productivity.

3. What is the environmental protection rating of the R10?

The unit is IP67 rated, meaning it is completely dustproof and protected against temporary immersion in water up to a depth of 1 meter.

4. What satellite constellations can the R10 track?

It provides future-proof tracking for all existing and planned GNSS constellations, including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.

5. How long is the warranty for the R10 receiver?

This product comes with a comprehensive 3-year warranty for peace of mind and long-term investment protection.

6. What happens if the radio signal is lost during an RTK survey?

The integrated xFill technology bridges the gap by providing continuous centimeter-level positioning during temporary radio or cellular connection outages.
