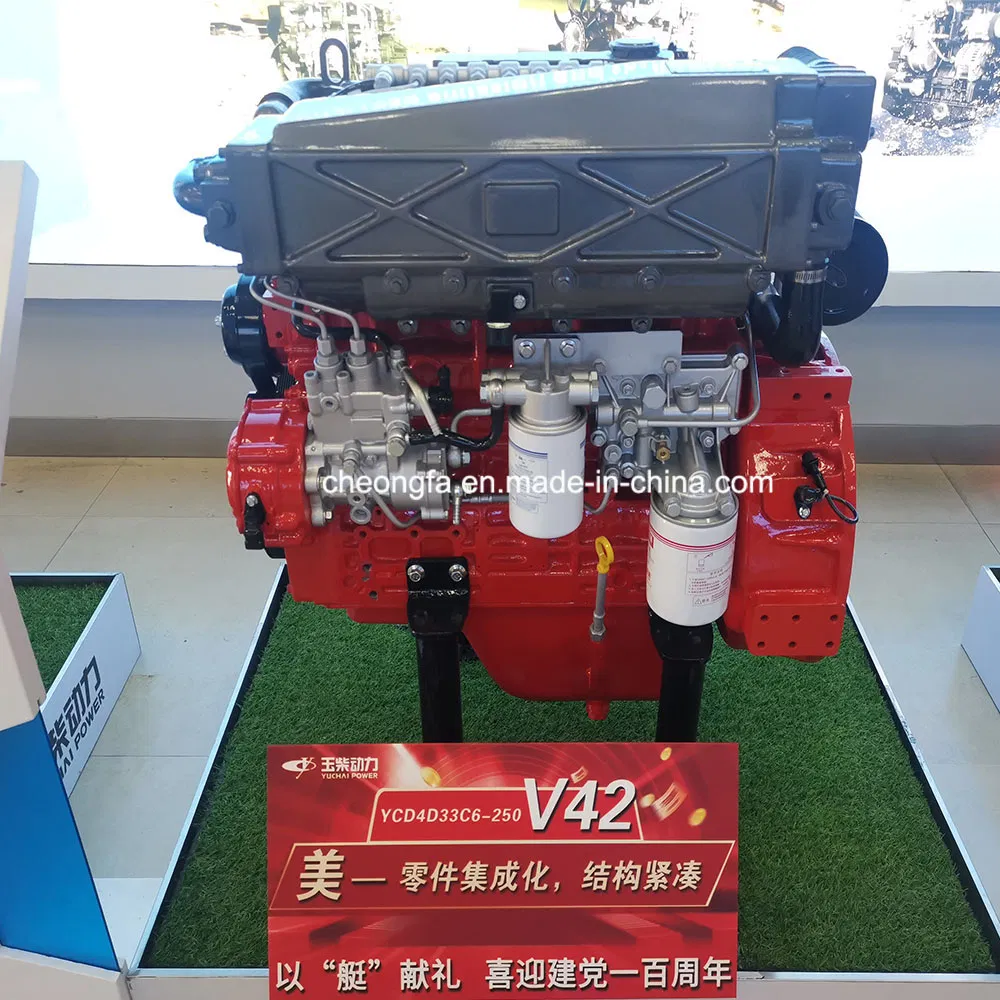

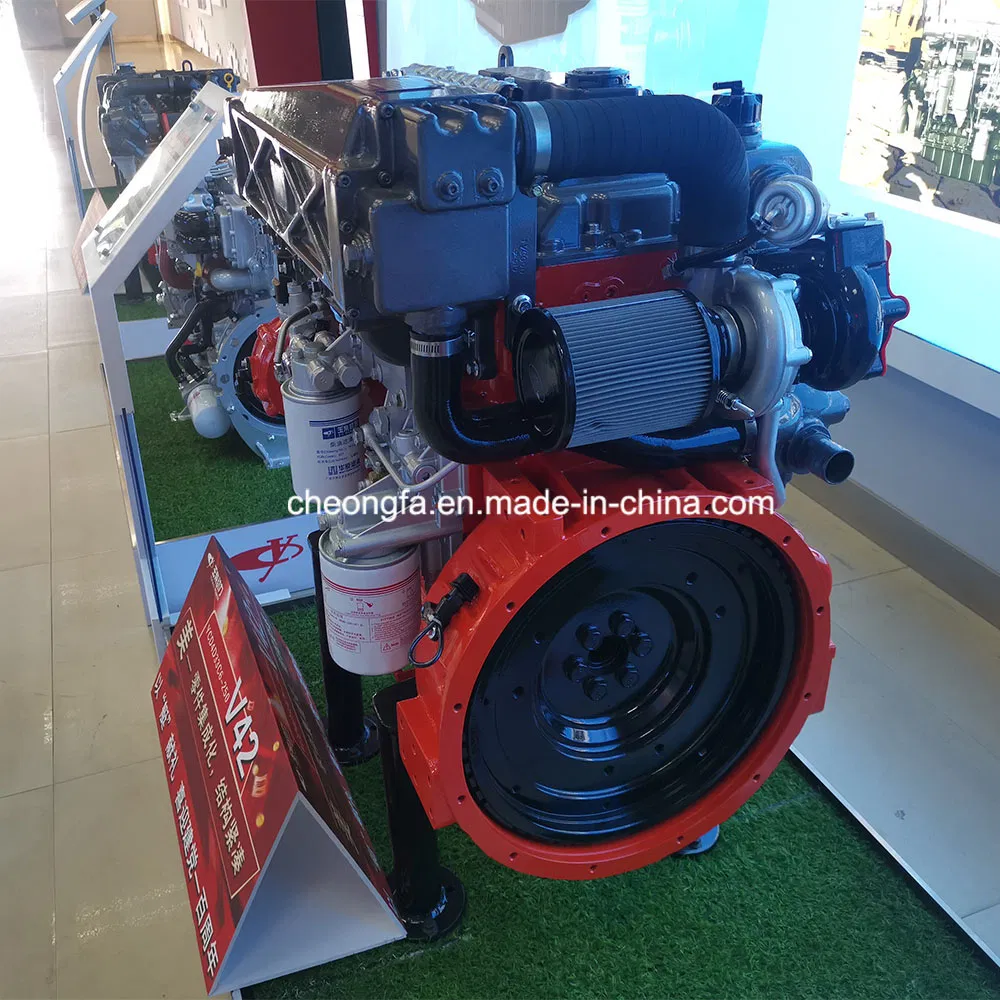

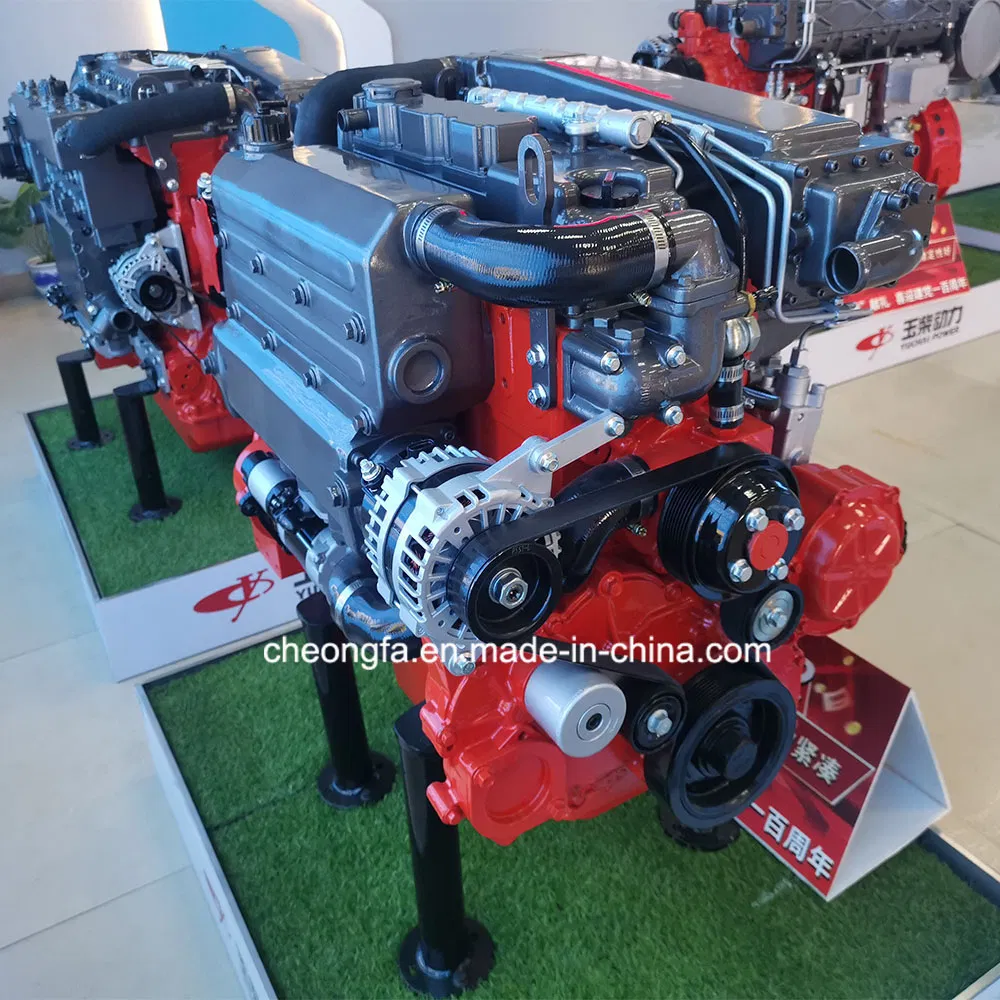

230HP 3000rpm Yuchai High Speed Engine Fishing Boat Motor Marine Diesel Engine for Sale

1 / 5

230HP 3000rpm Yuchai High Speed Engine Fishing Boat Motor Marine Diesel Engine for Sale

Customization:	Available
After-sales Service:	Overseas Third-Party Support Available
Warranty:	1 Year or 1500 Running Hours Which Come First

Send Inquiry

Product Description

Basic Information

Model NO.

YCD4D33C6-250

Ignition Mode

Electric Ignition

Speed

High Speed

Cooling Cylinder

Water-Cooled

Intake Pressure

Turbo-Charged

Fuel

Diesel

Number of Strokes

Four-Stroke

Cylinders

4-Cylinder

Displacement

4.2L

Bore/Stroke

105×120mm

Certificate

CCS

Net Weight

500kg

Product Features

Validated core components through CAE analysis.
Integrated modular design of "water-cooled exhaust pipe + heat exchanger".
Integrated modular design of "intake pipe + intercooler".
4-valve high-efficiency gas exchange technology improves fuel utilization.
Automatic belt tensioner ensures stable power transmission.
Compact structural layout via component integration.

Market Positioning: Compatible with 10-12 meter vessels including leisure fishing boats, official craft, patrol boats, and similar marine applications.

Technical Parameters

Model	YCD4D33C6-250
Displacement (L)	4.2
Cylinders - Bore x Stroke(mm)	4-105×120
Valves per cylinder	4
Continuous Power (kW(Ps)/r/min)	168(230hp)/3000
One-hour Power (kW(Ps)/r/min)	185(250hp)/3100
Min. Fuel Consumption (g/(kWh))	≤200
Certificates	ZC, CCS, EIAPP, IMO TIER II

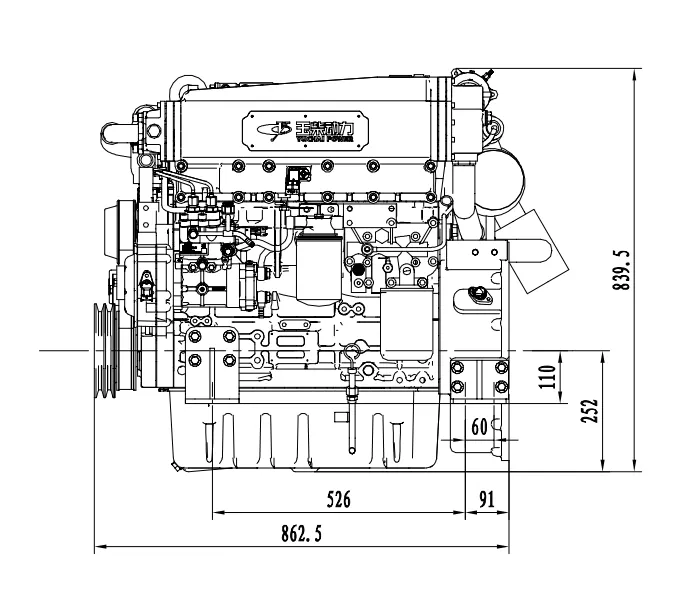

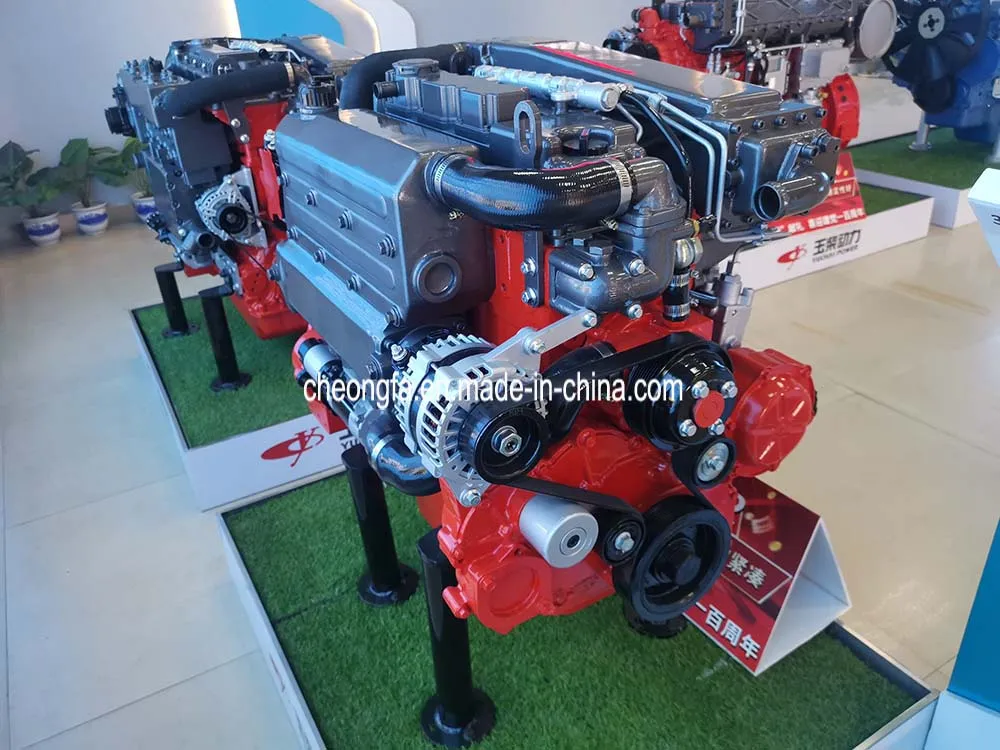

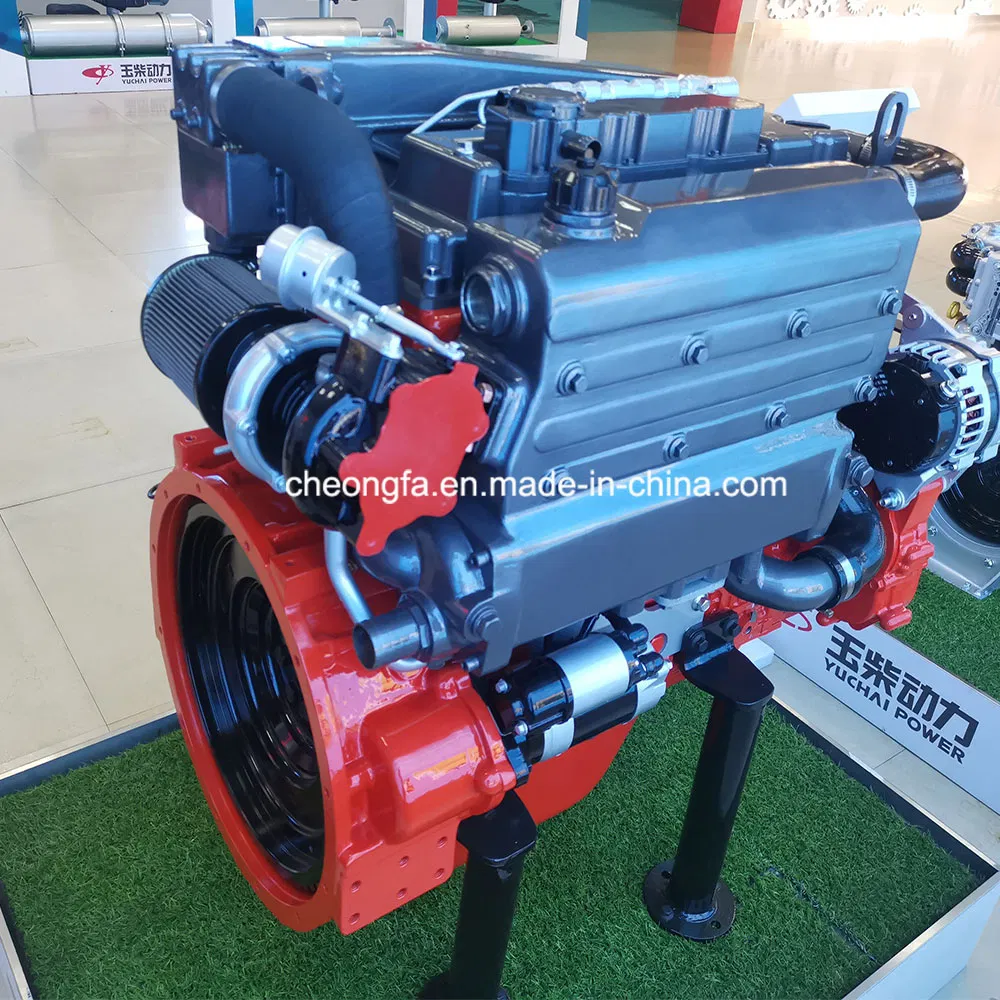

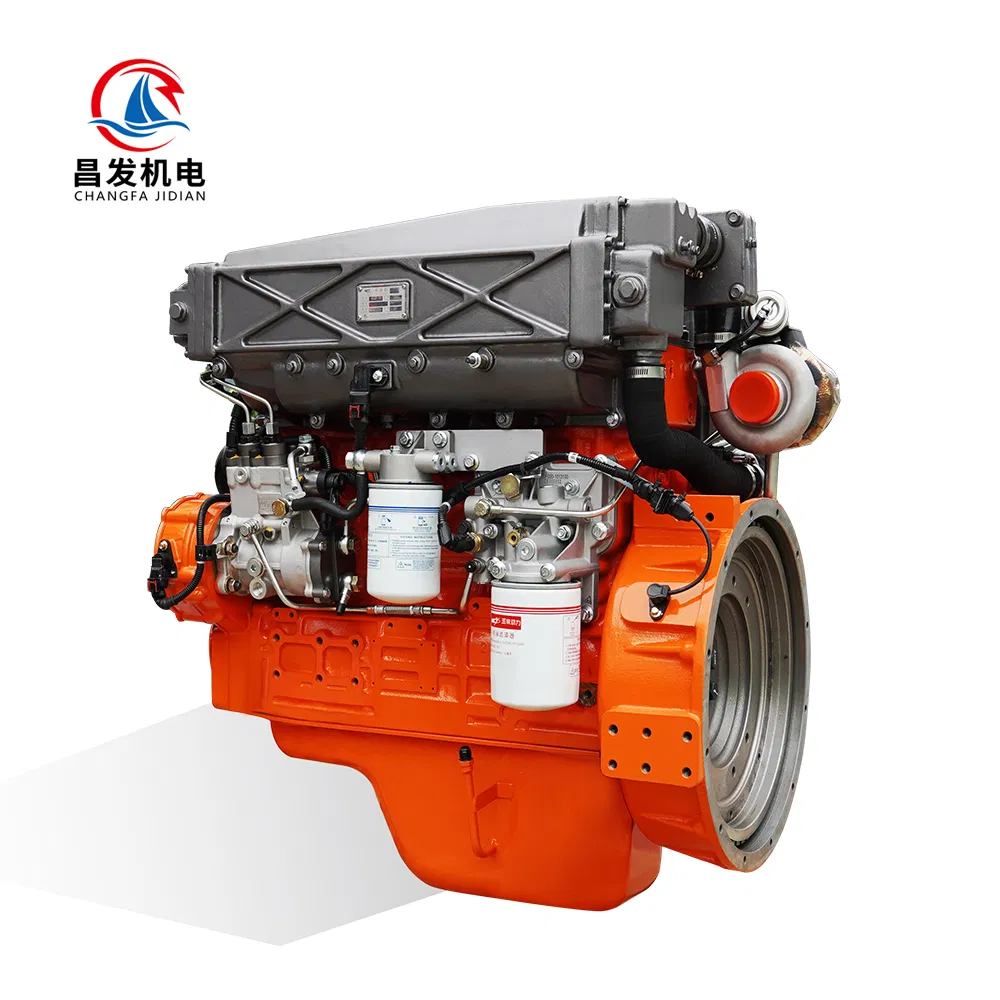

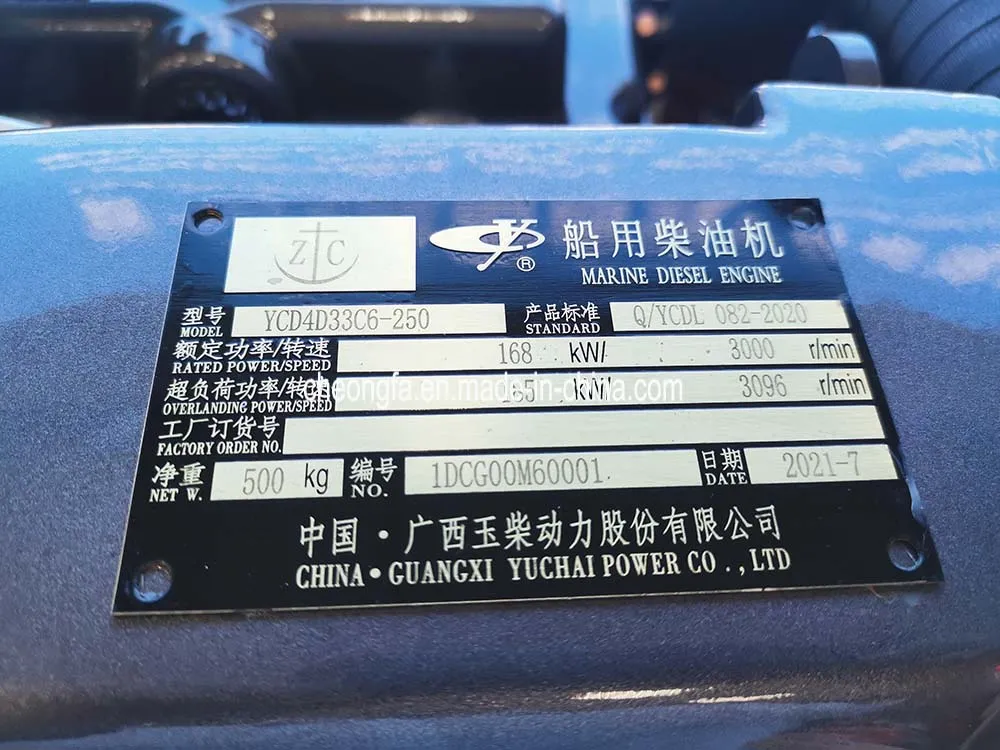

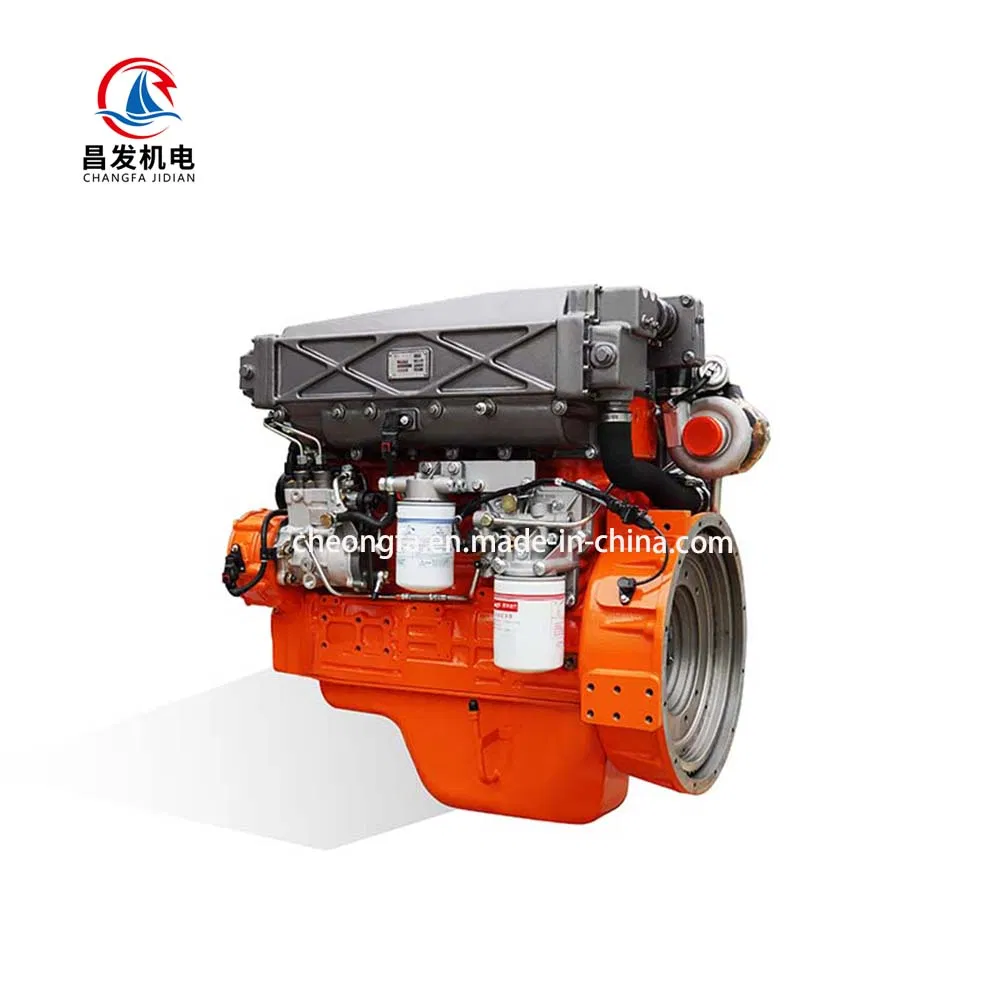

Detailed Photos

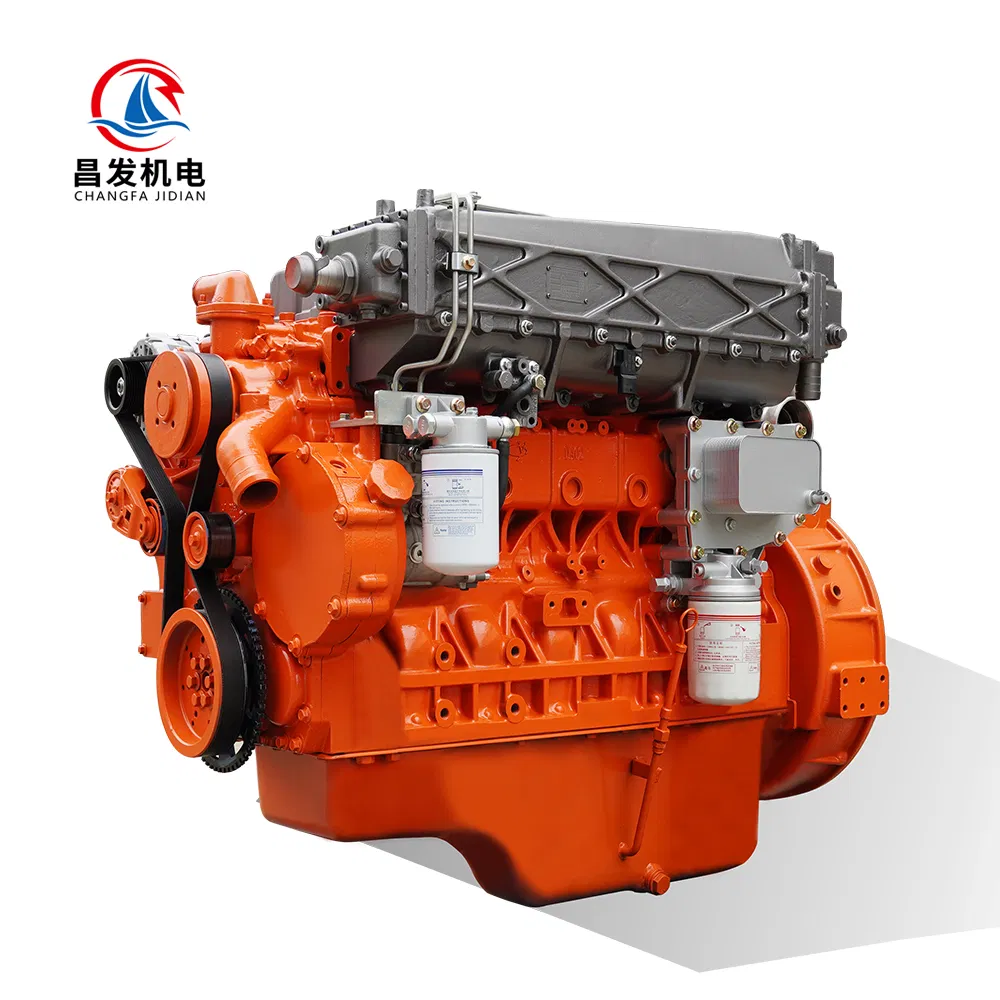

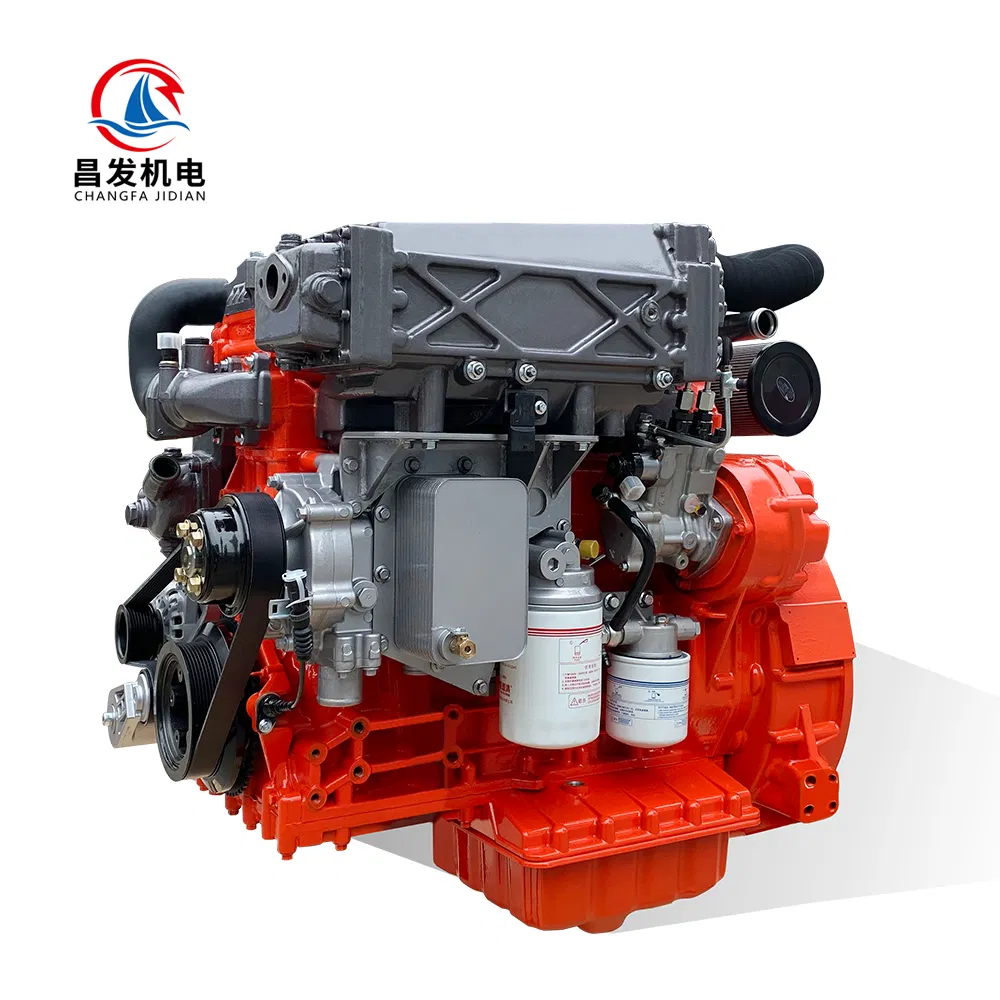

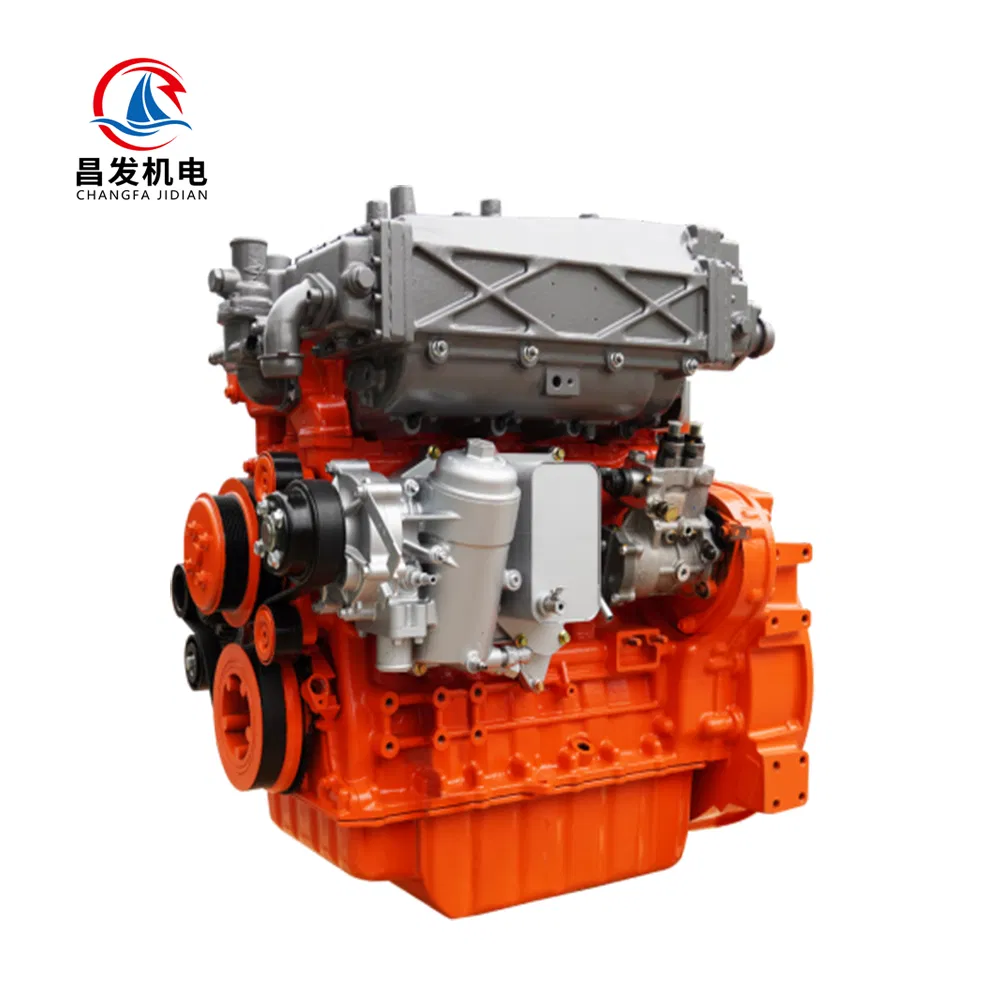

Product Series Comparison

Series	V15	V25	V31	V42	V46	V75
Displacement (L)	1.4	2.5	3.1	4.2	4.6	7.5
Max Power (kW/r/min)	73/4300	100/3500	165/3500	185/3100	220/3000	295/2500
Weight (kg)	≤150	≤280	≤400	≤490	≤550	≤760

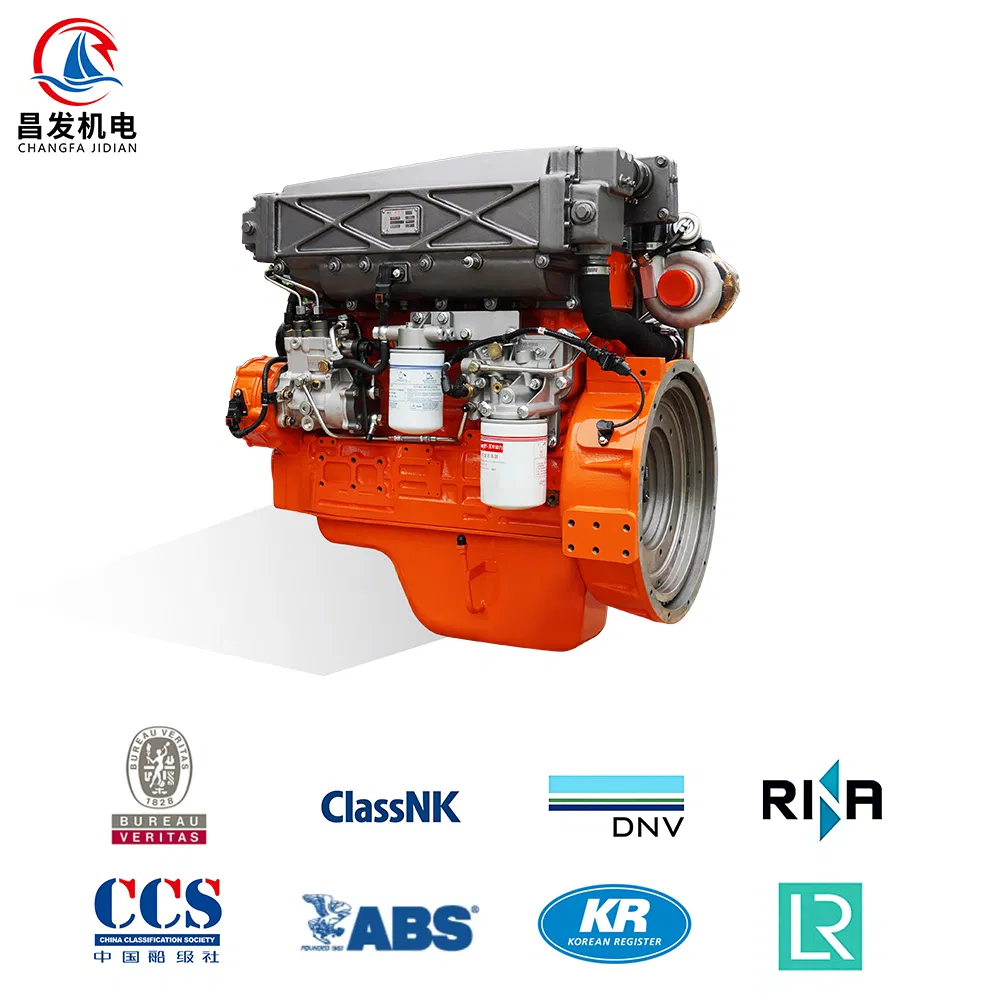

Quality Certifications

Frequently Asked Questions

Are your engines genuine products?

Yes! We supply 100% OEM engines with complete traceability. All products include original factory warranties.

What are your payment terms?

For bulk orders, we typically require a 30% deposit with the remaining 70% balance due before shipment.

What is the lead time for engines and generators?

Standard models take 15-30 days after payment. Customized units (e.g., voltage/frequency adjustments) require 30-45 days.

Do you provide after-sales service and spare parts?

Yes, we offer global technical support via digital channels and provide a 10-year spare parts supply guarantee for all models.

What quality certifications do your products hold?

Our products are certified under ISO 9001, ISO 14001, CE, and SONCAP, alongside relevant marine class certifications like CCS.

Can these engines be used for specific vessel types?

Absolutely. These high-speed engines are optimized for 10-12 meter vessels, including fishing boats, patrol boats, and official craft.
